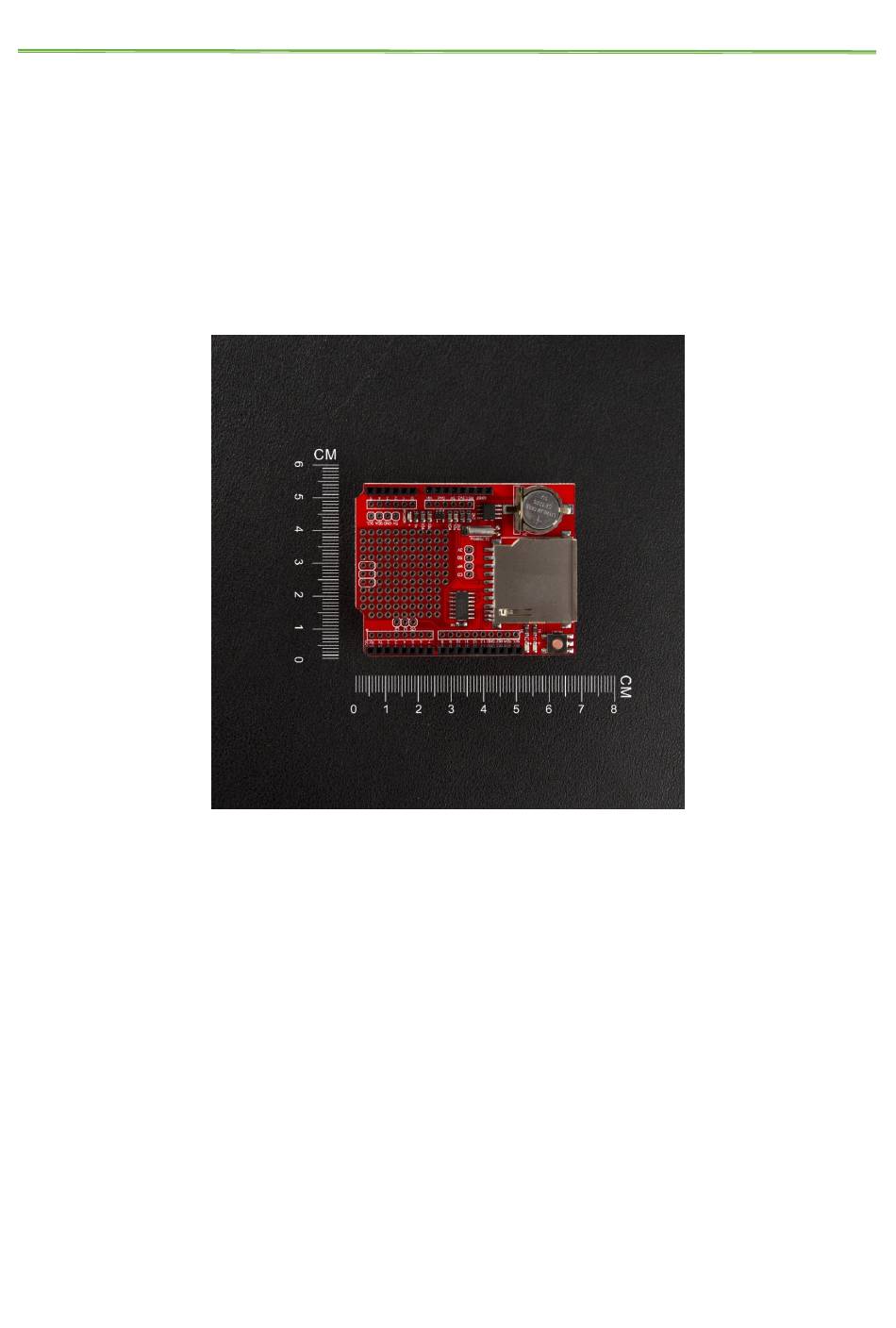

- Page 1 IDUINO for maker’s life User Manual Arduino Data logg shield (ST1046) www.openplatform.cc...
- Page 2 IDUINO for maker’s life Description: This Arduino data log shield is a dedicated ,well-designed and not expensive data logging shield. Which is originally designed by Adafruit, we only add some power pins and change the appearance to make it good-looking. And most important is that we have soldered the pins for you, so you needn’t do that, Now it can directly plug into...
- Page 3 IDUINO for maker’s life Shield Overview The data log shield has a few things to make it an excellent way to track data. Here's a rough map of the shield: SD Card The big SD card holder can fit any SD/MMC storage up to 32G and and small as 32MB (Anything formatted FAT16 or FAT32) If you have a MicroSD card, there are low cost adapters which will let you fit these in.
- Page 4 IDUINO for maker’s life The Level Shifter moves all signals from 3.3 or 5V down to 3.3V so you can use this shield with any Arduino safely and not damage cards. Cheaper shields use resistors to level shift, but this doesn't work well at high speed or at all voltage levels! The SD library, download from here https://github.com/adafruit/SD...
