GEPA RA-06 User Manual

GEPA

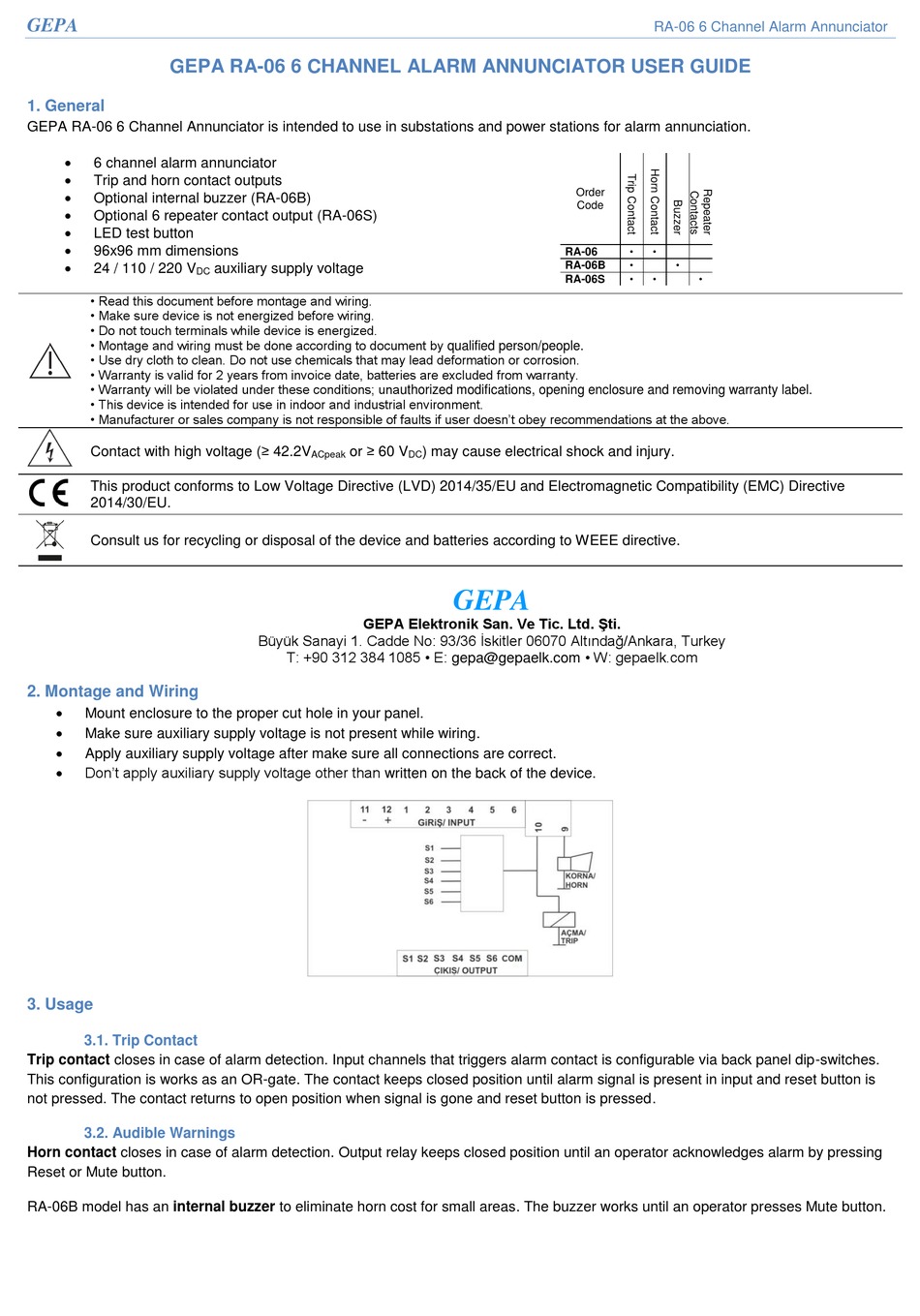

GEPA RA-06 6 CHANNEL ALARM ANNUNCIATOR USER GUIDE

1. General

GEPA RA-06 6 Channel Annunciator is intended to use in substations and power stations for alarm annunciation.

6 channel alarm annunciator

Trip and horn contact outputs

Optional internal buzzer (RA-06B)

Optional 6 repeater contact output (RA-06S)

LED test button


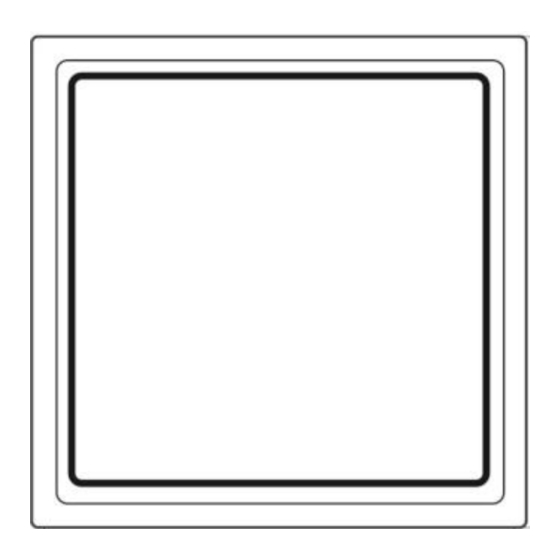

96x96 mm dimensions

24 / 110 / 220 V
DC
• Read this document before montage and wiring.
• Make sure device is not energized before wiring.
• Do not touch terminals while device is energized.
• Montage and wiring must be done according to document by qualified person/people.
• Use dry cloth to clean. Do not use chemicals that may lead deformation or corrosion.
• Warranty is valid for 2 years from invoice date, batteries are excluded from warranty.
• Warranty will be violated under these conditions; unauthorized modifications, opening enclosure and removing warranty label.
• This device is intended for use in indoor and industrial environment.
• Manufacturer or sales company is not responsible of faults if user doesn't obey recommendations at the above.
Contact with high voltage (≥ 42.2V
This product conforms to Low Voltage Directive (LVD) 2014/35/EU and Electromagnetic Compatibility (EMC) Directive
2014/30/EU.
Consult us for recycling or disposal of the device and batteries according to WEEE directive.

2. Montage and Wiring


Mount enclosure to the proper cut hole in your panel.

Make sure auxiliary supply voltage is not present while wiring.

Apply auxiliary supply voltage after make sure all connections are correct.

Don't apply auxiliary supply voltage other than written on the back of the device.

3. Usage

3.1. Trip Contact

Trip contact closes in case of alarm detection. Input channels that triggers alarm contact is configurable via back panel dip-switches.
This configuration is works as an OR-gate. The contact keeps closed position until alarm signal is present in input and reset button is
not pressed. The contact returns to open position when signal is gone and reset button is pressed.

3.2. Audible Warnings

Horn contact closes in case of alarm detection. Output relay keeps closed position until an operator acknowledges alarm by pressing
Reset or Mute button.
RA-06B model has an internal buzzer to eliminate horn cost for small areas. The buzzer works until an operator presses Mute button.
auxiliary supply voltage
or ≥ 60 V
ACpeak
GEPA Elektronik San. Ve Tic. Ltd. Şti.
Büyük Sanayi 1. Cadde No: 93/36 İskitler 06070 Altındağ/Ankara, Turkey
T: +90 312 384 1085 • E: gepa@gepaelk.com • W: gepaelk.com
Order
Code
RA-06
RA-06B
RA-06S
) may cause electrical shock and injury.
DC
GEPA
RA-06 6 Channel Alarm Annunciator
• •
• •
• • •
