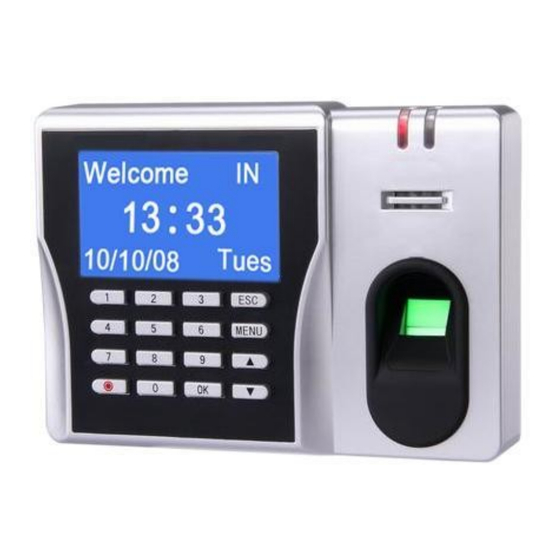

ZKS-T23
www.zksgroup.es
www.zksgroup.fr
www.zksgroup.de
1
www.zksgroup.co.uk
www. zksgroup. com.au
Version English-1.0.0
Advertisement
Table of Contents
Summary of Contents for Zks ZKS-T23
- Page 1 Hardware Guide Version English-1.0.0 Time Attendance System ZKS-T23 The introduction of Send Message 15 800 6000 15 If you using a mobile phone or dialing from Dubai, Macau, Istanbul or areas outside China, Please call: (86-21) 6767 9389 www.zksgroup.com www.zksgroup.com.br www.zksgroup.es...
- Page 2 Since 1995, ZKS has been at the forefront of consumer fingerprint products, providing innovative, high-value solutions for business and consumers. The ZKS name stands for the highest quality products and a profitable partnership. In 1999, ZKS began producing Time & Attendance, Access Control and Door Lock etc. and making ZKS become the leader in the development of fingerprint applications, comprising R&D, design and manufacture.
- Page 3 Attendance System ZKS-T23 Preamble Respected users, sincerely thank you for the use of the products of ZKS, Please read the manual and understand the basic structure of the product, performance, function and master basic knowledge about installation, using, maintenance and management of the terminal.
-
Page 4: Table Of Contents
CONTENTS Chapter 1 Using Notice ..................5 1.1Note ................................5 1.2 Technical index ............................8 1.3 System introduction ............................ 9 1.3.1 Brief introduction ..............................9 1.3.2 Users register fingerprint............................ 9 1.3.3 Two kinds of users ............................10 1.4 Terminal maintenance ..........................10 1.5 Work principle ............................ -
Page 5: Chapter 1 Using Notice
3.2 Setup ................................. 24 3.2.1 System ................................24 3.2.2Record ................................25 3.2.3Communication ..............................26 3.2.4 Light Adjust ............................... 26 3.3 System Info ............................... 27 3.3.1 User Reg ................................27 3.3.2 Admin Reg ................................ 27 3.3.3 Finger ................................27 3.3.4 Card .................................. 27 3.3.5 Password ................................ - Page 6 Please don’t let the non-professional staff open the equipment or change the circuit equipment Otherwise it will cause significant equipment failure even a fire or electrical short. Please don’t use sharp objects or weights crushing to blow equipment Otherwise it may lead to equipment, fingerprint identification and exterior damaged, which will impact the use and appearance.
- Page 7 Please do not repair privately if equipment fails If you are in need of repairing equipment, please contact the equipment providers. If in exceptional circumstances, we should put device out of door Special equipment for outdoor use, or distribute a protective shield that can effectively prevent it from malfunction. Please don’t install the terminal in a private plane ...
-
Page 8: Technical Index
1.2 Technical index Subject Parameters Time Required for A Successful < 1S Confirmation Comparison Method 1：1 or 1：N Time Required Failing < 1.2S Confirmation Period of data Keep for 3 years when no current Confirmation Method 1 Fingerprint or Password Confirmation Method 2 Proximity or HID or Mifare card (optional) -
Page 9: System Introduction
Attendance Records 80000 entries Baud Rate Rs232 9600,19200,38400,115200 Baud Rate Rs485 9600,19200,38400,115200 Working Language Chinese, English, option with Spanish, French and so on Working mode T&A , standalone, can work persistently Save function Turn off device automatically for saving Power Consumption <9W Power Supply DC9V, 1A (AC100V to 240V, 50-60Hz) -
Page 10: Two Kinds Of Users
1.3.3 Two kinds of users The users include administrators and general users: 1.3.3.1 Administrators: Those who are authorized to operate all the procedures on the terminal, browse the deleted or recorded data, browse the system information and set up functions and environment. Since the administrators have the right to manage all the procedure on the machine, it is important for him to remember his password firmly, it is troublesome if it is forgotten by carelessness. -
Page 11: T&A With Card Reader (Optional)
finger.register and so on. After staff put their fingers onto sensor, their info of fingers and time of T&A are recorded into terminal and then transmit their info from terminal to computer by appropriate modes, such as, RS232 or RS485. After analyzing these data on management software by managers, statements in attendance will be showed up. -
Page 12: Chapter 2 Appearance And Installation
Chapter 2 Appearance and Installation 2.1 Appearance Notes of overall structure 2.1.1 Appearance Describe the exterior appearance and equipment. 2.1.2 Functions showing of the keypad 2.1.2.1. Keyboard configuration 2.1.2.2. Keyboard Function Exit or cancel a menu MENU Enter into machine menu Confirm Send Message 15 800 6000 15 If you using a mobile phone or dialing from Dubai, Macau, Istanbul or areas outside China,... -
Page 13: Equipment Installation
⊙ Switch on or off machine ▲ Move up the menu ▼ Move down the menu Input numerical values 2.1.2.3 Function keys for Clock In/Out (a) “▲” – Clock In When machine works under function keys for clocking In/Out , but without any shift setting on the software,, “▲” means clock in , press key of “▲”... -
Page 14: Network
2.3 Network 2.3.1 Interface for RS232 and RS485 2.3.2. Binding Post on the back of Equipment Send Message 15 800 6000 15 If you using a mobile phone or dialing from Dubai, Macau, Istanbul or areas outside China, Please call: (86-21) 6767 9389 www.zksgroup.com www.zksgroup.com.br www.zksgroup.es... -
Page 15: Communication Via Rs232 /Rs485 (Standalone Connection)
2.3.3 Communication via RS232 /RS485 (standalone connection) 2.3.4 TCP/IP environment with multi units Note: To connect the machine a bit far (1.5 meters), or multi sets of machines, please use the RS485 communication method. And the distance by RS485 mode can be as far as 1200 meters. Send Message 15 800 6000 15 If you using a mobile phone or dialing from Dubai, Macau, Istanbul or areas outside China, Please call: (86-21) 6767 9389... -
Page 16: Chapter 3 Function Menu
Chapter 3 Function Menu Press key 【Menu】 ,then it enters into the three submenus on the LCD 【Data Proc】 , 【Setup】 , 【 System Info】 for your option with ▲ and ▼. 3.1 Data processing 3.1.1Users register After entering into the menu, select 【Data Proc.】(means data processing)，select the submenu 【UReg.】(means users register), then general users can register. - Page 17 press your finger for another three times) New Reg Enter Again And if the finger is the one that has been registered before it will show you as follows, then you have to change another finger that has not been registered on this machine before Remove FP Double After pressing the same finger for three times successfully, please remember to click OK to save.
- Page 18 Then you can click OK to begin to register another finger under the same ID number, and the step is the same as the register of the first finger; (Note: when you have already registered three fingers under a same ID number, and still continue to register under this ID number, then it will shows your the following window: Backup Reg ID 00001...
- Page 19 (Note: if not save, the register this time is invalid. And it also comes to the same window as the one after saved as follows: Card Continue? NO-ESC YES-OK Select ESC to back to menu【Card】;Select OK to enter into the following interface. Card New Reg? No-ESC Yes-OK...
- Page 20 Password PWD In **** Confrm No-ESC Yes-OK ( “Confrm” here means Confirm) After inputting the same password for the second time, it will come to the window: Password 00002-0P Ign-ESC Sav-OK Click OK to save, after saving, there will be another window: Continue? (YES-OK, NO-ESC), (Note: if not save, the register this time is invalid.
