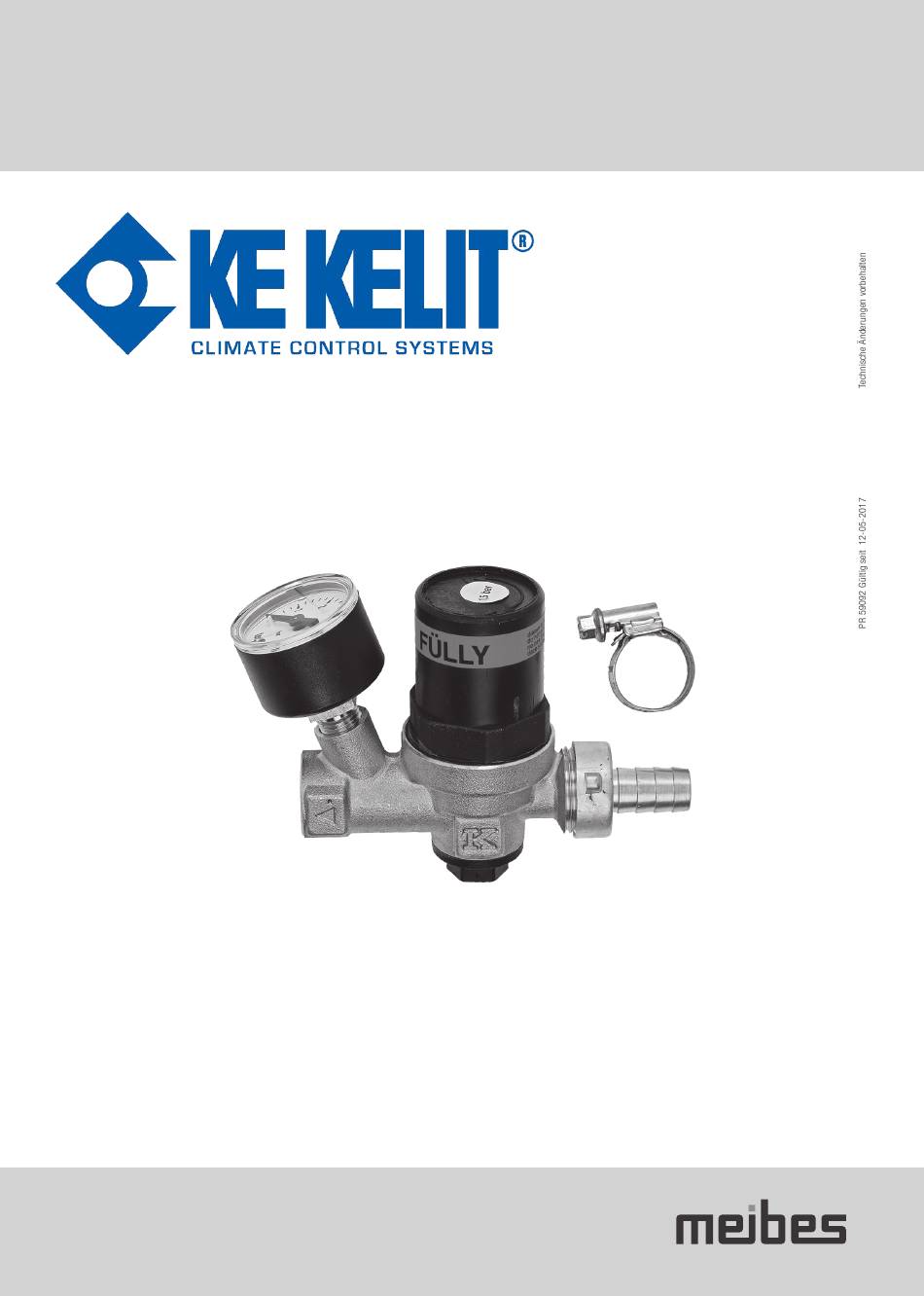

- Page 1 Automatic Filling Aid for Heating Systems Instructions for Installation, Commissioning, Operation & Maintenance KE KELIT NZ Ltd. Phone: 0800 45353548 Email: climatecontrol@kekelit.co.nz Web: www.kekelit.co.nz...
- Page 2 Content Basics Technical data Safety instructions Intended use Functions Installation and operation Installation Operation Operation Maintenance...
- Page 3 1. Basics 1.1 Technical data Filling water connection ½“ hose fitting with terminal Heating system connection ½“ female thread Length of brass body 85 mm Max. temperature 70°C Height Approx. 95 mm Installation position Vertical or horizontal Permissible filling water pressure 10 bar Control range 0.4 –...
- Page 4 1. Basics 1.4 Functions Constant pressure position Automatic refilling of the heating water to the adjustable system pressure. Filter An integrated filter prevents larger foreign particles from entering the heating system. Check valve Prevents the heating water from flowing in the reverse direction when there is insufficient fill pressure.
- Page 5 2. Installation and operation 2.1 Installation 1. Establish a rigid connection (which is capable of being shut off) between the heating system and the ½“ female thread of the Fülly. Ensure free access to the pressure adjuster and the filter. Sufficiently secure the connecting line. 2.
