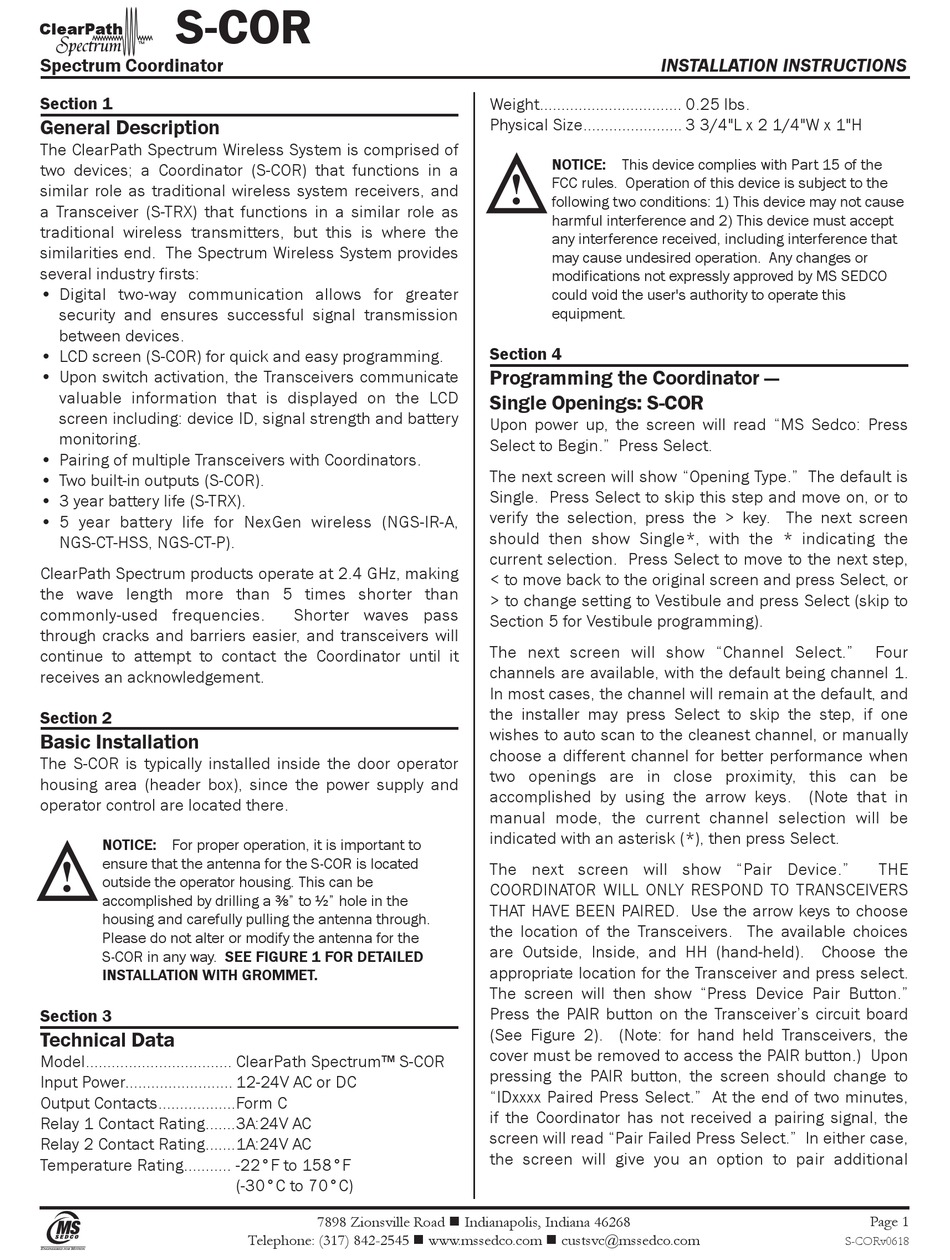

MS Sedco ClearPath Spectrum Coordinator Installation Instructions Manual

S-COR
ClearPat h
™
Spectrum Coordinator
Section 1
General Description
The ClearPath Spectrum Wireless System is comprised of
two devices; a Coordinator (S-COR) that functions in a
similar role as traditional wireless system receivers, and
a Transceiver (S-TRX) that functions in a similar role as
traditional wireless transmitters, but this is where the
similarities end. The Spectrum Wireless System provides
several industry firsts:
• Digital two-way communication allows for greater
security and ensures successful signal transmission
between devices.
• LCD screen (S-COR) for quick and easy programming.
• Upon switch activation, the Transceivers communicate
valuable information that is displayed on the LCD
screen including: device ID, signal strength and battery
monitoring.
• Pairing of multiple Transceivers with Coordinators.
• Two built-in outputs (S-COR).
• 3 year battery life (S-TRX).
• 5 year battery life for NexGen wireless (NGS-IR-A,
NGS-CT-HSS, NGS-CT-P).
ClearPath Spectrum products operate at 2.4 GHz, making
the wave length more than 5 times shorter than
commonly-used frequencies.
through cracks and barriers easier, and transceivers will
continue to attempt to contact the Coordinator until it
receives an acknowledgement.
Section 2
Basic Installation
The S-COR is typically installed inside the door operator
housing area (header box), since the power supply and
operator control are located there.
NOTICE: For proper operation, it is important to
!
ensure that the antenna for the S-COR is located
outside the operator housing. This can be
accomplished by drilling a ⅜" to ½" hole in the
housing and carefully pulling the antenna through.
Please do not alter or modify the antenna for the
S-COR in any way. SEE FIGURE 1 FOR DETAILED
INSTALLATION WITH GROMMET.
Section 3
Technical Data
Model.................................. ClearPath Spectrum™ S-COR
Input Power......................... 12-24V AC or DC
Output Contacts.................. Form C
Relay 1 Contact Rating....... 3A:24V AC
Relay 2 Contact Rating....... 1A:24V AC
Temperature Rating........... -22°F to 158°F
Shorter waves pass
(-30°C to 70°C)
7898 Zionsville Road  Indianapolis, Indiana 46268
Telephone: (317) 842-2545  www.mssedco.com  custsvc@mssedco.com
INSTALLATION INSTRUCTIONS
Weight................................. 0.25 lbs.
Physical Size....................... 3 3/4"L x 2 1/4"W x 1"H
NOTICE: This device complies with Part 15 of the
!
FCC rules. Operation of this device is subject to the
following two conditions: 1) This device may not cause
harmful interference and 2) This device must accept
any interference received, including interference that
may cause undesired operation. Any changes or
modifications not expressly approved by MS SEDCO
could void the user's authority to operate this
equipment.
Section 4
Programming the Coordinator —
Single Openings: S-COR
Upon power up, the screen will read "MS Sedco: Press
Select to Begin." Press Select.
The next screen will show "Opening Type." The default is
Single. Press Select to skip this step and move on, or to
verify the selection, press the > key. The next screen
should then show Single*, with the * indicating the
current selection. Press Select to move to the next step,
< to move back to the original screen and press Select, or
> to change setting to Vestibule and press Select (skip to
Section 5 for Vestibule programming).
The next screen will show "Channel Select."
channels are available, with the default being channel 1.
In most cases, the channel will remain at the default, and
the installer may press Select to skip the step, if one
wishes to auto scan to the cleanest channel, or manually
choose a different channel for better performance when
two openings are in close proximity, this can be
accomplished by using the arrow keys. (Note that in
manual mode, the current channel selection will be
indicated with an asterisk (*), then press Select.
The next screen will show "Pair Device."
COORDINATOR WILL ONLY RESPOND TO TRANSCEIVERS
THAT HAVE BEEN PAIRED. Use the arrow keys to choose
the location of the Transceivers. The available choices
are Outside, Inside, and HH (hand-held). Choose the
appropriate location for the Transceiver and press select.
The screen will then show "Press Device Pair Button."
Press the PAIR button on the Transceiver's circuit board
(See Figure 2). (Note: for hand held Transceivers, the
cover must be removed to access the PAIR button.) Upon
pressing the PAIR button, the screen should change to
"IDxxxx Paired Press Select." At the end of two minutes,
if the Coordinator has not received a pairing signal, the
screen will read "Pair Failed Press Select." In either case,
the screen will give you an option to pair additional
Four
THE
Page 1
S-CORv0618
