Installation Instructions
Cable fuse box HSW 2209

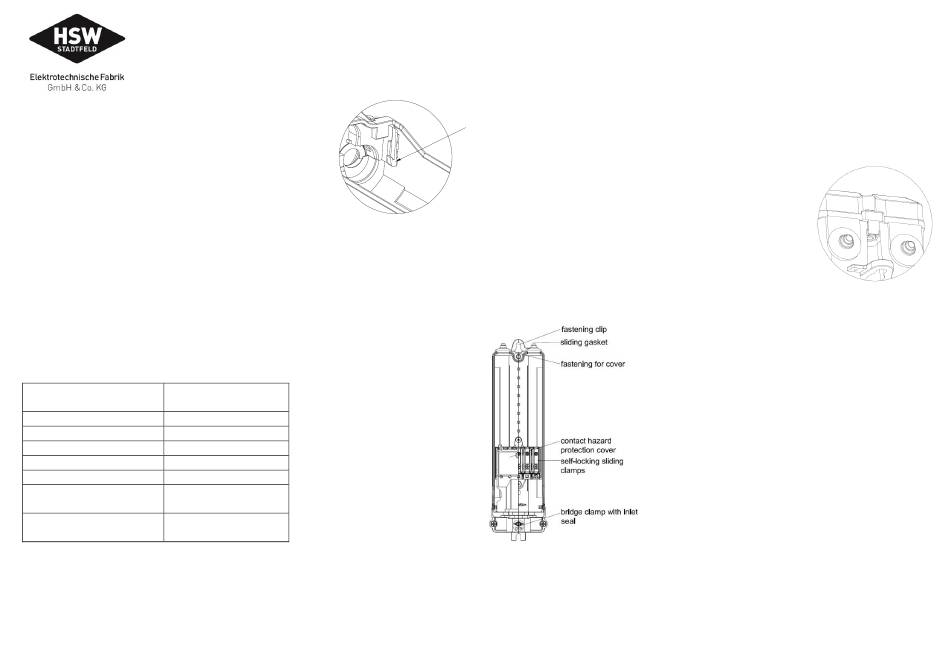

Intended use

The cable fuse box HSW 2209 is intended to be used in suitable
lighting poles.
The cable fuse box HSW 2209 is designed for the connection of
max. 3 underground cables.
Any other use of this product requires the consultation with the
manufacturer.

Safety instructions

When working on electrical systems, the valid regulations such as
VDE 0100 must be observed. Installation may only be carried out by
qualified personnel or instructed persons in a de-energized state.

Service

In the event of malfunctions or complaints regarding the product,
please contact your sales representative or the manufacturer.

Technical data

Nominal voltage / 400 V / 16 A
-current
Degree of protection
Protection class
Measurements (L x W x H) 290 x 84 x 72 mm
Pole internal diameter from Ø 89 mm
Door size 80 x 300 mm
Entry field for wire up to 110 mm
connection
Input connectors max. 3 cables
5 x 6 - 16 mm²

Mounting in lighting poles

Bevertalstraße 20
▪
Remove housing cover
▪
Remove bridge clamp
▪
Insert the cable fuse box into open lighting pole and fasten it to
the mounting rail

Adjust input seal

▪
Important! With one input cable, always use the existing opening
of the input seal!
▪
Break out the inlet seal at the engraved points according to the
number and diameter of the input cables

Connecting the input cable

▪
Strip the input cable and remove
the filling material
▪
Insert the input cable so that the
outer sheath extends into the
connection compartment
▪
Snap on bridge clamp and screw
tight
▪
Bending, shortening and stripping
cable conductors to suit
IP54
▪
Mount or remove the PE/N - N
connection, if present, as
II
required
▪
Insert the cable cores into the U-
profiles according to the terminal
assignment and fasten with the
self-locking sliding clamps (torque
max. 2 Nm)
▪
Snap the contact hazard
protection cover on
Connecting The Output Cable
▪
▪
▪
▪
▪

Bridge clamp strain relief

can be snapped into the lower part
▪
of the housing for easier installation.
▪
For disassembly, the side lugs must
be operated with a slot screwdriver
Assembly
▪
Special Components
▪
Changing Fuse Inserts
▪
▪
▪
Cut off the nipple of the outlet seal to be used
Slide outlet seal over output cable
Strip output cable
Insert the outlet seal with output cable into the slot of the cable
fuse box
Pull the output cable back a little so that the outgoing seal is in full
contact with the cable
Shortening and stripping cable conductors to suit
Connect the cable cores to the output terminals of the insert
(torque max. 0,8 Nm) or to special components according to the
cable assignment
Fit housing cover, snap the housing
cover and screw it tight
When special components are used, the respective regulations of
the devices used must be observed
Remove housing cover
Remove screw caps and change fuse insert
Attention! Do not remove the contact hazard protection cover! It
prevents from the accidental contact with live parts!
Print errors and technical changes excepted (Status: August 2019)
