Pulsar S108-90W Instruction Manual


Switch 10 ports
8 PoE ports 10/100 Mb/s (data and power supply)
2 port 10/100 Mb/s (UP LINK)

Long Range mode (up to 250m)

30 W for each PoE port, supports devices complaint
with the IEEE802.3af/at (PoE+) standard

Supports auto-learning and auto-aging of MAC
addresses (1K size)

1. Technical description

1.1. General description.

S108-90W is a 10-ports PoE switch designed to supply IP cameras operating in IEEE 802.3af/at standard.
Automatic detection of any devices powered in the PoE/PoE+ standard is enabled at the 1 – 8 ports of the switch. The UP LINK
ports is used for connection of another network device via RJ45 connector. The LEDs at the front panel indicate the operation
status (description in the table below).
The PoE technology ensures a network connection and reduces installation costs by eliminating the need to supply a
separate power cable for each device. This method allows supplying other network devices, such as IP phone, wireless access
point or router.
S108-90W
v.1.1
S108-90W 10-port switch for 8 IP cameras
Edition: 2 from 20.09.2019
Supercedes the edition: 1 from 01.04.2019
Features
:

LED indication

The
power supply desktop type included

Additional assembly elements

warranty – 2 year from the production date

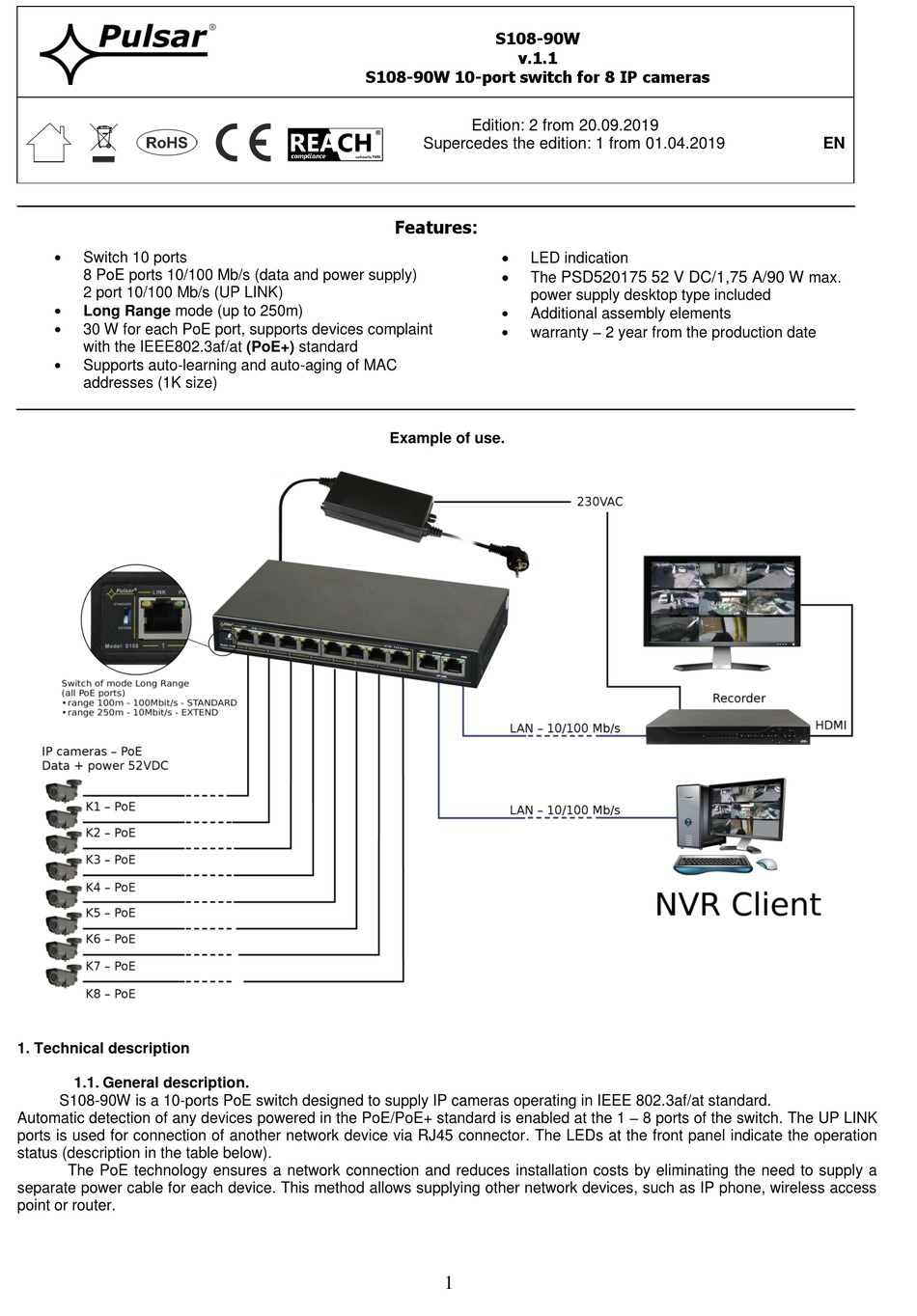

Example of use.
1
PSD520175 52 V DC/1,75 A/90 W max.
