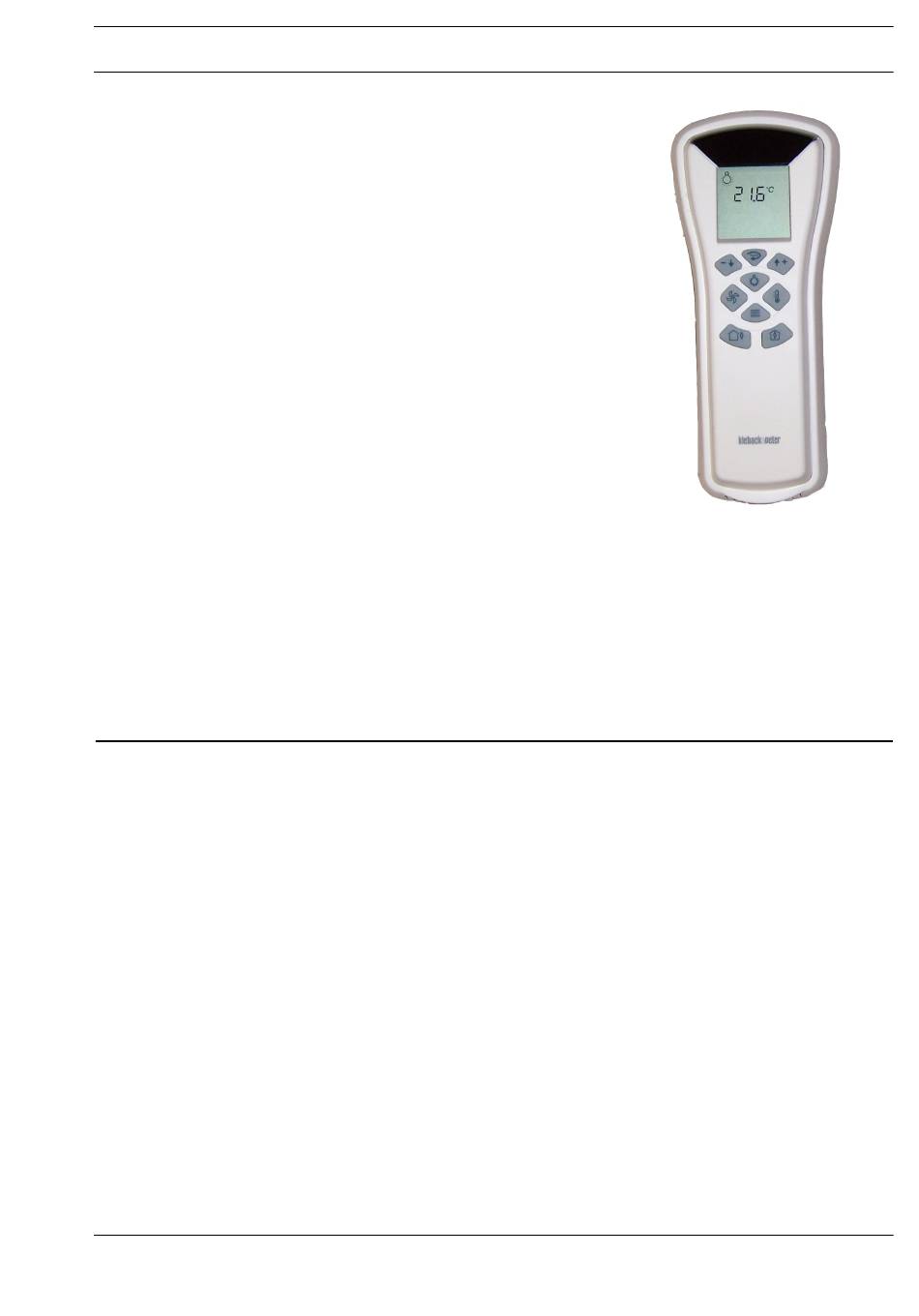

Issue 2016-08-02
Product Description

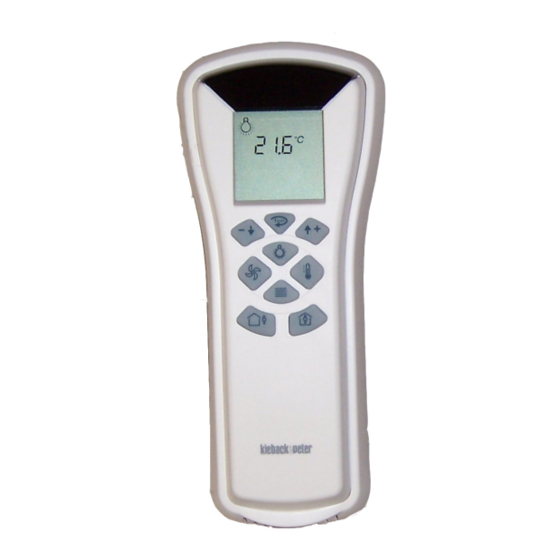

RBW119-IR Infrared Remote Control
Application
Infrared remote control with internal temperature sensor and LCD display
based on infrared transmission technology.
The keypad provides self-explanatory control of lights, blinds and air
conditioners.
Content
Important Information Regarding Product Safety ..................................................................................................2
Article.....................................................................................................................................................................3
Technical data .....................................................................................................................................................3
Accessories (not included in delivery) ...................................................................................................................3
Mounting ................................................................................................................................................................4
Replacing batteries ................................................................................................................................................5
Operation ...............................................................................................................................................................5
Configuration of the Infrared Remote Control........................................................................................................8
Assigning area address .......................................................................................................................................8
Measuring temperature........................................................................................................................................8
Number of light circuits ........................................................................................................................................9
Number of blinds..................................................................................................................................................9
Änderungen vorbehalten - Contents subject to change - Sous réserve de modifications - Reservado el derecho a modificación - Wijzigingen
voorbehouden - Con riserva di modifiche - Innehåll som skall ändras - Změny vyhrazeny - Zmiany zastrzeżone - Возможны изменения -
Kieback&Peter GmbH & Co. KG
Tempelhofer Weg 50, 12347 Berlin/Germany
Telefon: +49 30 60095-0, Telefax: +49 30 60095-164
Datenblatt 2.80-30.119-01-EN
RBW119-IR Infrared Remote Control
A
Page
Advertisement
Table of Contents
Summary of Contents for Kieback&Peter RBW119-IR
-
Page 1: Table Of Contents
Issue 2016-08-02 Datenblatt 2.80-30.119-01-EN Product Description RBW119-IR Infrared Remote Control RBW119-IR Infrared Remote Control Application Infrared remote control with internal temperature sensor and LCD display based on infrared transmission technology. The keypad provides self-explanatory control of lights, blinds and air conditioners. -
Page 2: Important Information Regarding Product Safety
Important Information Regarding Product Safety Safety Instructions This data sheet contains information on installing and commissioning the product "RBW119-IR". Each person who carries out work on this product must have read and understood this data sheet. If you have any questions that are not resolved by this data sheet, you can obtain further information from the supplier or manufacturer. -
Page 3: Article
Datasheet 2.80-30.119-01-EN Product Description RBW119-IR Infrared Remote Control Article RBW119-IR Infrared remote control Technical data Operating voltage Battery-operated, 2 alkaline AAA batteries Battery life approx. 2 years (depending on use) Display LCD display ■ Room temperature, resolution 0.1K ■ Room temperature setpoint adjustment -3 to +3°C, resolution 1K ■... -
Page 4: Mounting
Datasheet 2.80-30.119-01-EN RBW119-IR Infrared Remote Control Product Description Wiring for Accessories Z178-CIAT Connection line between room control module and room controller (RJ9 plug on both sides; 1,5 m) Z178 Connection line between room control module and room controller (RJ9 plug on both sides; 10 m) -
Page 5: Replacing Batteries
Datasheet 2.80-30.119-01-EN Product Description RBW119-IR Infrared Remote Control Replacing batteries Remove the screws Remove the batter- (1) and case cover. ies (2) from the bat- tery compartment and insert new bat- teries. Make sure you observe polarity. NOTE Comply with regulations on battery usage and disposal. - Page 6 Datasheet 2.80-30.119-01-EN RBW119-IR Infrared Remote Control Product Description Controlling fan level When the Fan key is pressed, the following is displayed: ■ Fan symbol ■ Currently set fan level value, represented by the number of blades filled in with black on the fan symbol The four-bladed fan symbol displays the last fan level value called.
- Page 7 Datasheet 2.80-30.119-01-EN Product Description RBW119-IR Infrared Remote Control Present function When the Present key is pressed, the following is triggered: ■ Both lighting circuits are switched on ■ A signal is sent over the network that transmits the present status to the building automation...
-
Page 8: Configuration Of The Infrared Remote Control
Datasheet 2.80-30.119-01-EN RBW119-IR Infrared Remote Control Product Description Configuration of the Infrared Remote Control The infrared remote control can be configured for several operating modes. NOTE To switch to configuration mode, several keys must be pressed and held for five seconds. -
Page 9: Number Of Light Circuits
Datasheet 2.80-30.119-01-EN Product Description RBW119-IR Infrared Remote Control Number of light circuits Press the following keys simultaneously: The light symbol flashes on the display and the number of light circuits that can be controlled by the remote control is displayed. - Page 10 Datasheet 2.80-30.119-01-EN RBW119-IR Infrared Remote Control Product Description Seite 10 / 10...
