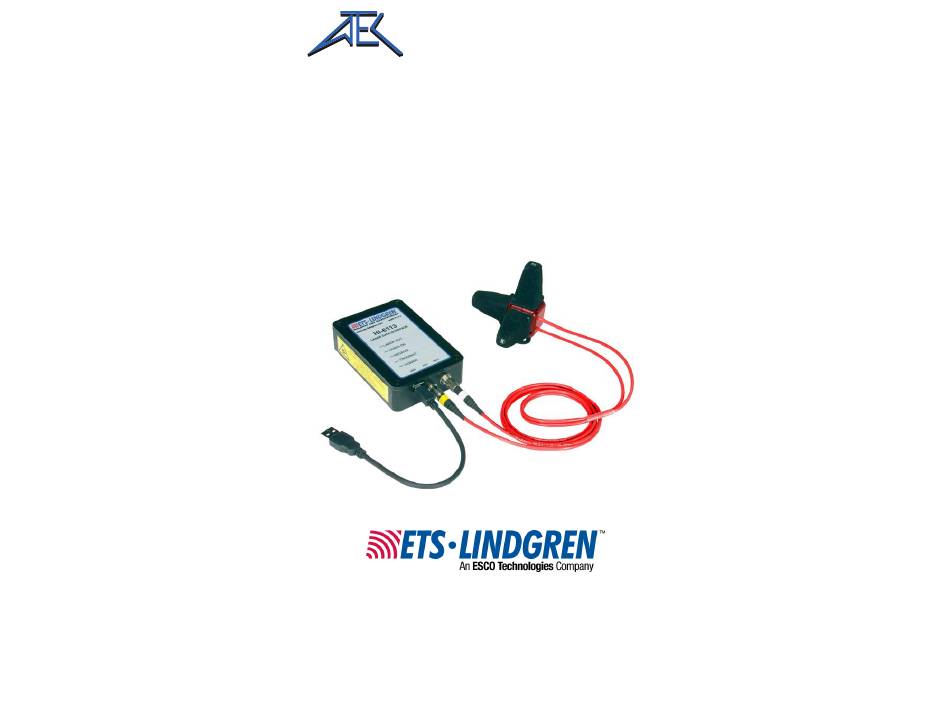

  • Page 1 Advanced Test www.atecorp.com Provided by: ® Equipment Corp. (800) 404-ATEC Rentals • Sales • Calibration • Service Model HI-6113 Laser Data Interface and Probe Measurement System User Manual...
  • Page 2 ETS-Lindgren Inc. reserves the right to make changes to any product described herein in order to improve function, design, or for any other reason. Nothing contained herein shall constitute ETS-Lindgren Inc. assuming any liability whatsoever arising out of the application or use of any product or circuit described herein.
  • Page 3 Revision Record | MANUAL, HI-6113 | Part #H-600098, Rev. H Revision Description Date Initial Release June, 2005 Edits to all sections for updated October, 2006 HI-6113 design; Field Probe content moved to EMC Field Probes User Manual; reorganized content, updated format Added Appendix B: EC Declaration of December, 2006...

  • Page 4: Notes, Cautions, And Warnings

    Notes, Cautions, and Warnings Note: Denotes helpful information intended to provide tips for better use of the product. Caution: Denotes a hazard. Failure to follow instructions could result in minor personal injury and/or property damage. Included text gives proper procedures. Warning: Denotes a hazard.

  • Page 5: System Description

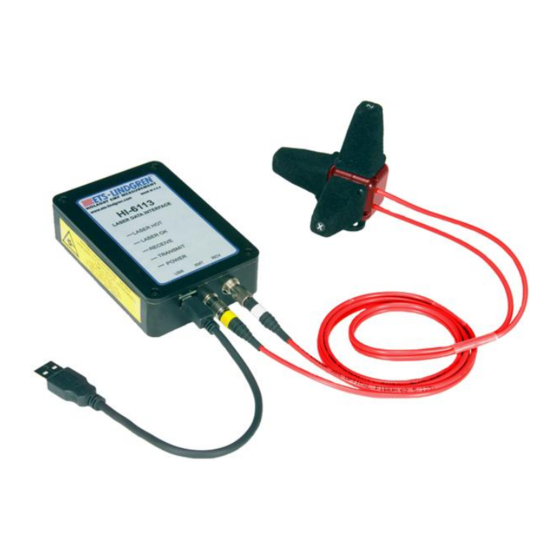

    1.0 Introduction System Description The ETS-Lindgren HI-6113 Laser Data Interface and Field Probe Measurement System consists of:  HI-61XX Series Field Probe  HI-6113 Laser Data Interface  Universal input DC power supply  Fiber optic cables  ProbeView Laser software download—To download...

  • Page 6: Minimum Computer Requirements

    The HI-6113 is an automated laser controller that accepts commands from the software running on the computer and then returns the requested data. Upon receiving the command to turn on the system, the HI-6113 initiates a startup sequence that turns on the laser, which provides power to the Field Probe. The Field Probe, when powered up and running, continuously sends data to the HI-6113.

  • Page 7: Ets-Lindgren Product Information Bulletin

    Sample Setup (computer not included) ETS-Lindgren Product Information Bulletin See the ETS-Lindgren Product Information Bulletin included with your shipment for the following:  Warranty information  Safety, regulatory, and other product marking information  Steps to receive your shipment  Steps to return a component for service ...
  • Page 8 4.0 HI-6113 Indicators Use of controls or adjustments, or performance of procedures other than those specified may result in hazardous radiation exposure. Before connecting any components, follow the safety information in the ETS-Lindgren Product Information Bulletin included with your shipment. For complete information on the HI-61XX Series Field Probe, see the separate Field Probe manual.
