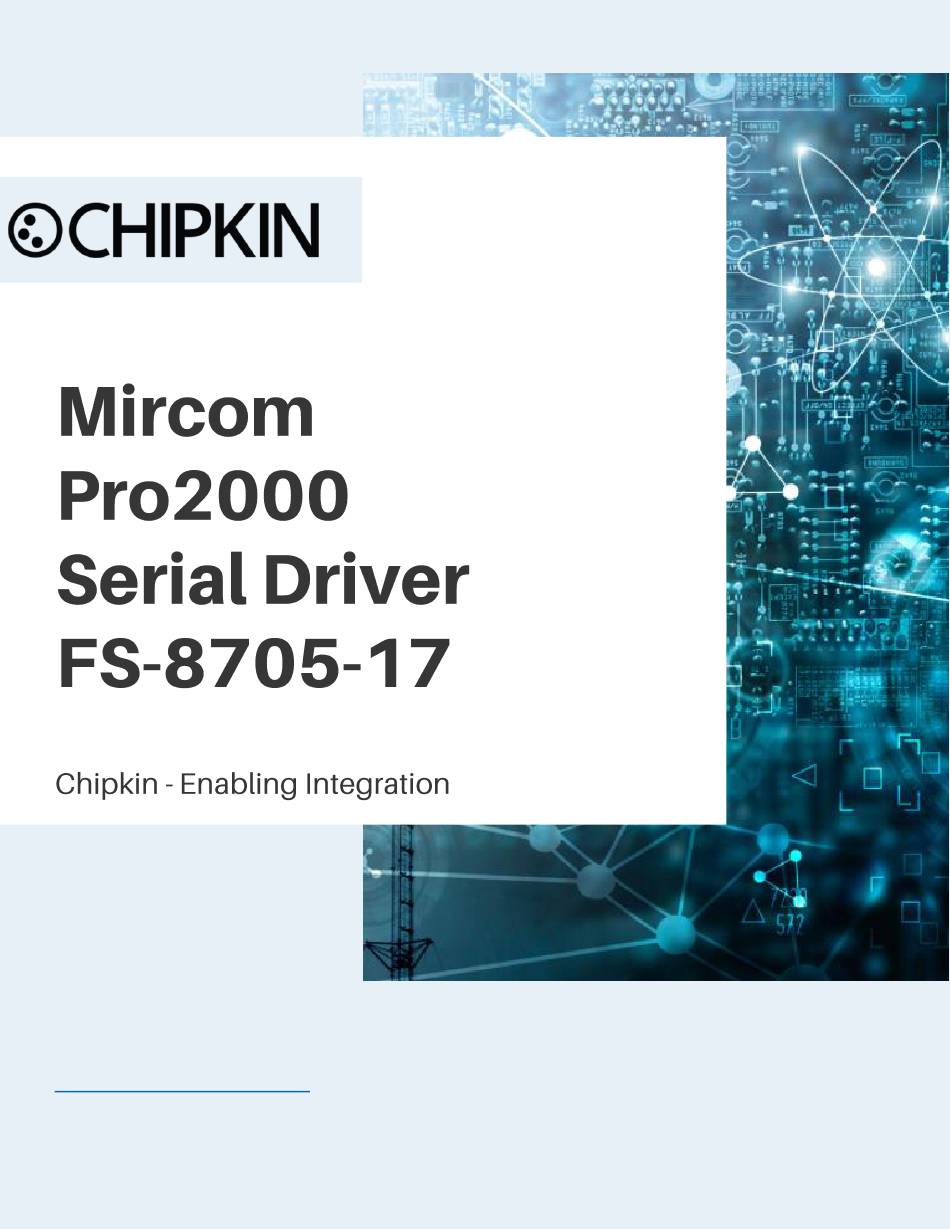

Chipkin Mircom PRO2000 FS-8705-17 Instruction Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

salesgroup1@chipkin.com

Tel: +1 866 383 1657

Driver Version: 1.00a

Document Revision: 1

Table of Contents

Need help?

Do you have a question about the Mircom PRO2000 FS-8705-17 and is the answer not in the manual?

Questions and answers

Summary of Contents for Chipkin Mircom PRO2000 FS-8705-17

Page 2: Table Of Contents
CONFIGURING THE FIELDSERVER AS A PRO2000 SERVER ......................26 REVISION HISTORY .................................. 27 ADVANCED TOPICS ..............................28 ............................... 28 RIVER RROR ESSAGES ................................. 30 RIVER TATISTICS Exposing Driver Stats ..............................30 ........................... 31 LIENT IDE OF THE CONFIGURATION © 2021 CHIPKIN AUTOMATION SYSTEMS...
Page 3: Mircom Pro2000 Fire Alarm Panel Serial Driver Description
Each device has 16 bits allocated to it. These bits report the status of the device. They are documented in this manual but you should check with the manufacturer’s documentation in case there have been changes. This data can be mapped onto any other FieldServer protocol such as BACnet or Modbus/TCP. © 2021 CHIPKIN AUTOMATION SYSTEMS...
Page 4 Only one panel can be connected to a single FieldServer . If this LIMITATION has significant impact for your project, Active Client contact us, we might be able to change this limitation. Active Server Not supported or documented. (Simulate a PRO2000 Panel) © 2021 CHIPKIN AUTOMATION SYSTEMS...
Page 5: Driver Scope Of Supply
A generic male and Female connector kit must be shipped with this driver. FS-8705-17 Driver Manual. Provided by the Supplier of 3rd Party Equipment Required 3 Party Hardware PART # DESCRIPTION Required 3 Party Software Required 3 Party Configuration None known. © 2021 CHIPKIN AUTOMATION SYSTEMS...
Page 6: Hardware Connections
Rockwell DF1 GE-SNP Lonworks Network JCI Metasys N2 RS232/RS485 Network Bacnet MSTP (Units with 1-8ports available) We are always adding to the library of protocols and can add yours. MIRCOM PRO2000 Series Fire and Gas Panels © 2021 CHIPKIN AUTOMATION SYSTEMS...
Page 7: Hardware Connection Tips / Hints
FS-8705-17 Mircom Pro2000 Serial Driver Page 7 of 32 Hardware Connection Tips / Hints Jack J4 Pinout © 2021 CHIPKIN AUTOMATION SYSTEMS...
Page 8 GE-TLC Direct Connect to RJ111 to RJ45 Cable Assembly Instructions Blue-White 1. Cut one end off a Black RJ45 Patch cable. White Jumper between 1,3 and 6. Orange-White Cable Assembly – This cable is not provided. © 2021 CHIPKIN AUTOMATION SYSTEMS...
Page 9 FS-8705-17 Mircom Pro2000 Serial Driver Page 9 of 32 Mircom Jack J4 (RJ11 Telephone Jack) Female Blue Yellow Green Black White Jumper between 1,3 and 6. Cable Assembly – This cable is not provided. © 2021 CHIPKIN AUTOMATION SYSTEMS...
Page 10: Configuring The Fieldserver As A Pro2000 Fire Alarm Panel Active Client
Packed_Byte, Swapped_Byte Number of Data Objects. Must be larger than the data storage area Data_Array_Length 1-10,000 required by the Map Descriptors for the data being placed in this array. © 2021 CHIPKIN AUTOMATION SYSTEMS...
Page 11 FS-8705-17 Mircom Pro2000 Serial Driver Page 11 of 32 Example // Data Arrays Data_Arrays Data_Array_Name, Data_Format, Data_Array_Length, PRO2k_DATA, Packed_Bit, 16000 PRO2k_FLAGS, Packed_Bit, 1600 pro2000-stats, UNT16, REQUIRED: These 3 Data arrays are required in all Pro2000 configurations. © 2021 CHIPKIN AUTOMATION SYSTEMS...
Page 12: Client Side Connection Descriptions
Client Side Connections Connections Port, Baud, Parity, Protocol, 9600, None, Mircom_PRO2000, Not all ports shown are necessarily supported by the hardware. Consult the appropriate Instruction manual for details of the ports available on specific hardware. © 2021 CHIPKIN AUTOMATION SYSTEMS...
Page 14: Client Side Node Descriptors
Not all ports shown are necessarily supported by the hardware. Consult the appropriate Instruction manual for details of the ports available on specific hardware. © 2021 CHIPKIN AUTOMATION SYSTEMS...
Page 15: Client Side Map Descriptors
“Data Array” section in the FieldServer above Starting location in Data 0 to maximum specified in Data_Array_Offset Array “Data Array” section above Function of Client Map Function RDBC, WRBC, WRBX Descriptor © 2021 CHIPKIN AUTOMATION SYSTEMS...
Page 16: Driver Related Map Descriptor Parameters
1. This commonly used Address FieldServer parameter is not used by this protocol. Timing Parameters COLUMN TITLE FUNCTION LEGAL VALUES Scan_Interval Rate at which data is polled ≥0.001s © 2021 CHIPKIN AUTOMATION SYSTEMS...
Page 17: Map Descriptor Example 1
Map Descriptors require a Map Descriptors require a Data Array to be specified. Data Array to be specified. Essentially a dummy Essentially a dummy © 2021 CHIPKIN AUTOMATION SYSTEMS...
Page 18: How Point Data Is Stored
Not Used Reserved bit 3 Reserved bit 3 Reserved bit 2 Reserved bit 2 Reserved bit 1 Reserved bit 1 UA bit 1 UA bit 1 Device not present in Device present in database database © 2021 CHIPKIN AUTOMATION SYSTEMS...
Page 19 Reserved bit 2 Reserved bit 2 Reserved bit 1 Reserved bit 1 UA bit 1 UA bit 1 Device not present in Device present in database database Trouble not cleared Trouble cleared Trouble not acknowledged Trouble acknowledged © 2021 CHIPKIN AUTOMATION SYSTEMS...
Page 20: Driver Limitations And Event Processing
The name of the Modbus Text file produced by the pro2000 configurator. . You can specify the full path. OutputFileName The output from this tool is saved in a file. Specify the name of the file here. You can specify the full path. NameOption Valid options are 1,2,3 © 2021 CHIPKIN AUTOMATION SYSTEMS...
Page 21 If there is a 1 In the column then the corresponding BACnet Object is created when Option= Suffix Description Option=1 Option=2 Option=3 "Sup" "Supervisory" "Alm" "Alarm" "Servce" "Service Mode" "Iso" "Isolate Mode" "Auto" "Auto Manual" © 2021 CHIPKIN AUTOMATION SYSTEMS...
Page 22 Message columns. headerOption If set to 1 then the output file is a complete configuration and will include the default client side. If set to zero the output file contains the BACnet server configuration only. © 2021 CHIPKIN AUTOMATION SYSTEMS...
Page 23: How To Use The Tool
How to use the tool Obtain the tool Create a folder called c:\temp\pro2000 Copy the tool application file into that folder. If it is zipped. Unzip into that folder. Start a command session Start Button Run Button © 2021 CHIPKIN AUTOMATION SYSTEMS...
Page 24 You get a window similar to this one Change folder by typing Cd\temp\pro2000<Enter> Copy the input file (the Modbus text file) into the same folder. For the purposes of this example assume it is called Modbus.txt © 2021 CHIPKIN AUTOMATION SYSTEMS...
Page 25: Driver Limitations
2 GetVar Get the content of a PRO-2000 Variable 3 SetVar Set the contents of a PRO-2000 Variable (except date) 4 SetDate Set the Pro-2000 date variable 5 GetAnalog Get the analog values of a detector © 2021 CHIPKIN AUTOMATION SYSTEMS...
Page 26: Configuring The Fieldserver As A Pro2000 Server
FS-8705-17 Mircom Pro2000 Serial Driver Page 26 of 32 5 Configuring the FieldServer as a PRO2000 Server This driver cannot be used to emulate a PRO2000 panel. © 2021 CHIPKIN AUTOMATION SYSTEMS...
Page 27: Revision History
FS-8705-17 Mircom Pro2000 Serial Driver Page 27 of 32 6 Revision History DOC. DATE RESP FORMAT DRIVER VER. COMMENT REV. 20 Sep 2010 1.00a Document Created 10 May 2021 1.00a Updated to latest template © 2021 CHIPKIN AUTOMATION SYSTEMS...
Page 28: Advanced Topics
PRO2000:#04 Err. DA=%s not found This is a fatal error arising from a configuration error. The Data array required to store the flags is not present. Read section Error! Reference source not found. Error! Reference source not found. © 2021 CHIPKIN AUTOMATION SYSTEMS...
Page 29 1 have a length of 1. Review your configuration. PRO2000:#08 FYI Flags 1st=%d next=%d Ignore this message. It is used during testing. PRO2000:#09 FYI Next block=%d Ignore this message. It is used during testing. © 2021 CHIPKIN AUTOMATION SYSTEMS...
Page 30: Driver Statistics
The driver increments this stat each time it receives a response who length allows it be considered for processing The driver increments this stat each time it receives a response theta was invalid in structure or length. © 2021 CHIPKIN AUTOMATION SYSTEMS...
Page 31: The Client Side Of The Configuration
,Data_Format ,Data_Array_Length PRO2k_DATA ,Packed_Bit ,16000 PRO2k_FLAGS ,Packed_Bit ,1600 DA_CONTROL ,UINT16 pro2000-stats ,uint16 ,100 Check the Baud rate corresponds to the panel //================================================================================ Client Side Connections Connections Port ,Baud ,Data_Bits ,Stop_Bits ,Parity ,Protocol ,19200 ,8 ,None ,Mircom_pro2000 © 2021 CHIPKIN AUTOMATION SYSTEMS...
Page 32 Map_Descriptor_Name ,Scan_Interval ,Data_Array_Name ,Data_Array_Offset ,Node_Name ,Function ,Address ,Length Read_Inputs ,0.0s ,DA_CONTROL ,Panel01 ,Rdbc Only a single MD is required. The driver knows what work to do. This single map descriptor is used to initiate that work. © 2021 CHIPKIN AUTOMATION SYSTEMS...
