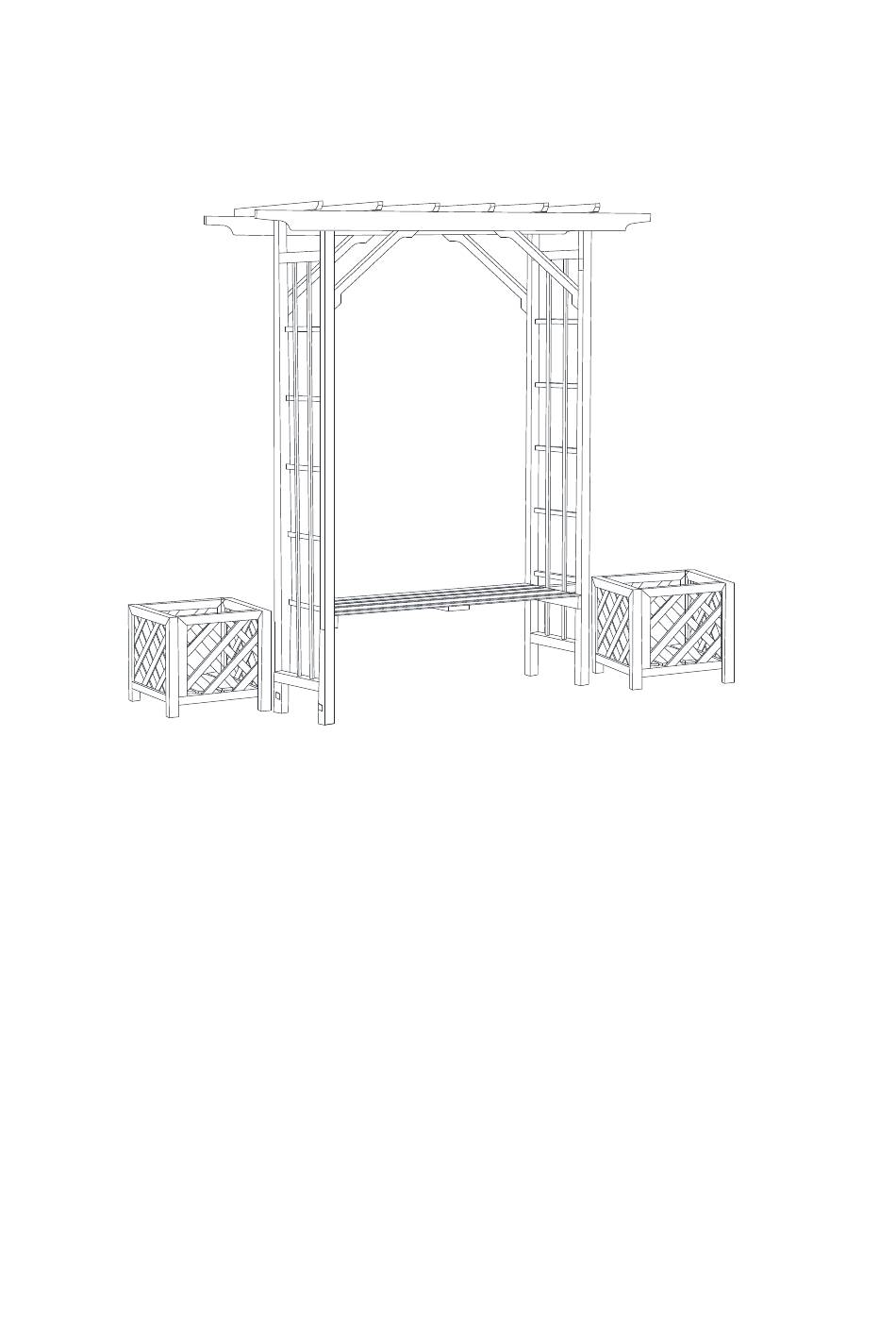

ASSEMBLY INTRUCTION
ITEM#：D-AB020PWD
WARNING:
Repeated assembly can weaken the locking ability of the screw/bolt/nut. Periodically check all bolted connections on
your product to make sure they are tight and secure. Keep these instructions for future reference.
Some parts may contain sharp edges. Wear protective gloves as necessary.
Set it up on the flat, level ground.
Attention: Please notice there are split lines in the wood logs. These are NOT defects. These are factory created to
allow expansion and contracting as the weather changes throughout the year.
Important: For technical assistance or questions, call Sunjoy Group at 1(866) 578-6569 anytime 24 hours / 7 days a
week, or email to customer.care@sunjoygroup.com, or visit www.sunjoyonline.com for more information or assistance.
Production Number: XXXXXXXX
Made In China
1 / 4
