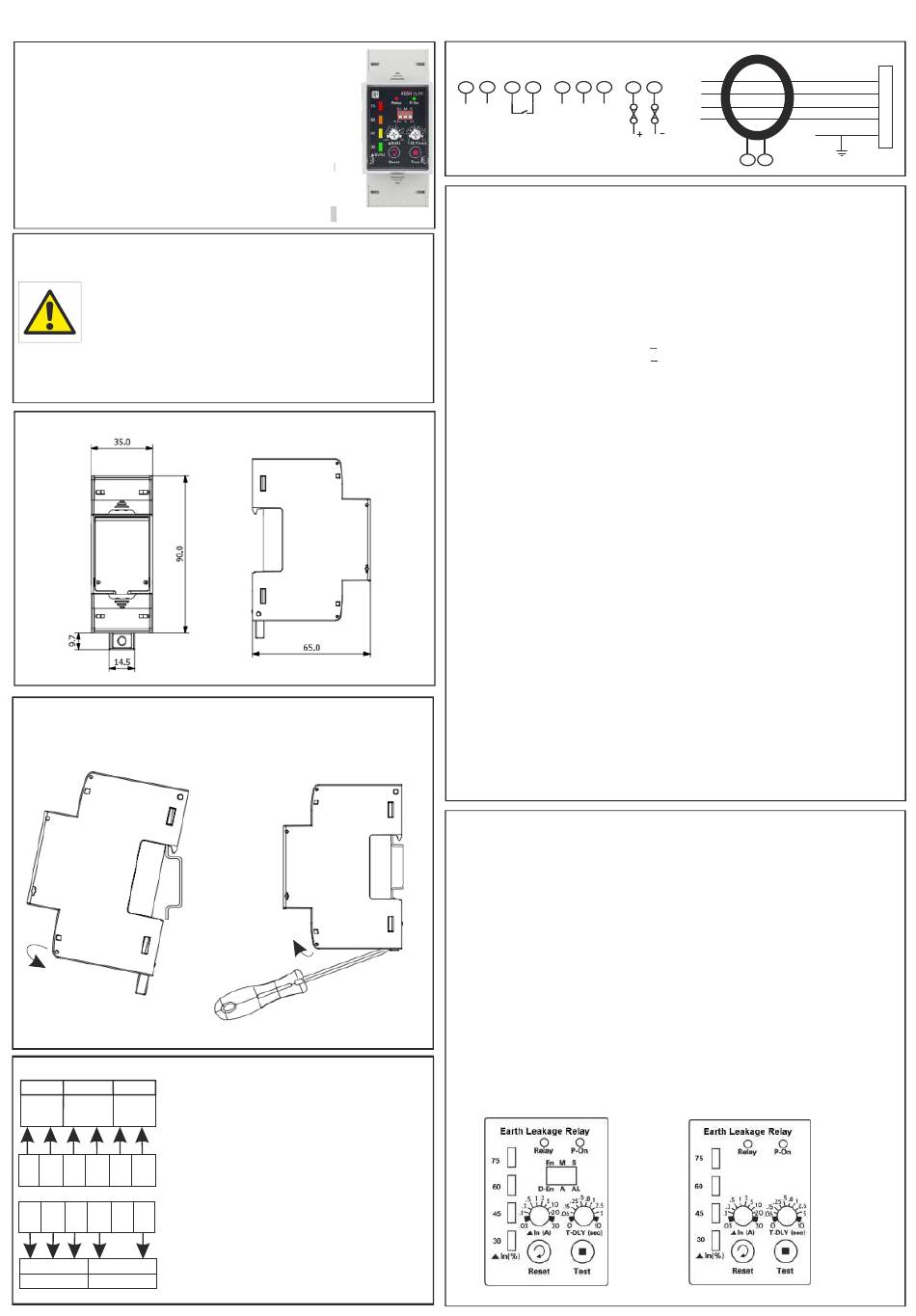

Rishabh ELPR Operating Manual

ELPR Operating Manual and Installation guide
ELPR is earth leakage detection and a protection device
used in electrical installations to measure leakage current
occurs due to punctured or weak insulations or contact to
live parts. Earth leakage current is measured through CBCT.
1CO Relay is provided to disconnect breaker and
additional 1NO configurable relay for alarm / fail safe
purpose is provided, CBCT open detection feature ensures
that no false measurement is made. LED indicates Leakage
current ( bargraph ),relay state, CBCT connections.
Two models Smart, Smart+ models are available.

Installation:

Installation to be carried out by qualied person along
with life protecting equipment to prevent hazardous shock
Isolate incoming supply before connection.
Do not expose device to Rain, Dust environment.
Keep at least 10-15 mm distance on both sides of device.
Do not install near Vibrating environment.
Do not install near Heat source.
Install Fuses of 2 Amp in series with supply.
Use Sealing provision to protect from unintentional
adjustment.
Dimensions :
90 x 65 x 35 mm As Per DIN 43880

Mounting:

To mount the device it should be fastened to a standard 35mm DIN rail
(DIN50022). Key hole is provided for wall mount . follow steps to mount
and unmount the instrument
Step1 - Push
Step2-Push clip
up for click fit
Mounting On DIN rail

Connector details:

Use proper screw driver so that sufficient
but not excess force is applied.
RELAY2 CBCT IN EXT RST SW
Wire of 2 sq.mm with lug is recommended
COM NO Y2 Y1 for all connections. Rated switchgear to be
IN OUT
used for inputs if applicable.
connect supply voltage with 2 Amp fuses
Remote Reset contacts are electrically
6
1 2 3 4 5
isolated from other input / output but are
not potential free
Terminals are marked as 1- 6 and 7-12
10 11
7 8 9 12
Terminal 1-2 - Relay2 COM-NO ( AL/FS)
Terminal 3-4 - CBCT S1, S2 connection
Terminal 5-6 - Remote Reset connection
Terminal 7-8-9 - Relay1 NO-COM-NC (ELR)
ELR Relay AUX
Terminal 10-12 - Auxillary supply
NO COM NC L N
Step2 - Pull
Step1- Pull clip
downward
Removing From DIN rail

Connection diagram:

2 8 9
1 5 6 7
AL / FS
ELR
Remote
RELAY RELAY
Reset
Technical Specications:
Input :
Leakage current (ln)
ELR Tripping range
Alarm Tripping range
Resetting value
Auxiliary Supply:
Auxiliary supply option1
Auxiliary supply option2
Auxiliary supply frequency
Accuracy:
Leakage current
Trip Delay
(Including Setting Accuracy )
Instantaneous Trip
Reference Conditions for Accuracy:
Reference temperature
Input Waveform
Input frequency
Auxiliary supply voltage
Auxiliary supply frequency
VA Burden :
Auxiliary supply burden
Applicable Standards:
EMC
Terms, definitions & Test method
Immunity
Safety
IP for water & dust
Pollution degree
Installation category
High Voltage Test
Environmental:
Operating temperature
Storage temperature
Relative humidity
Shock
Vibration
Enclosure

Relay Contacts:

Relay 1 ( ELR ) Output
Relay 2 ( Alarm / Fail safe Output )
Contact rating
Mechanical endurance
Electrical endurance

Setting interface:

Key operations : Separate Trip and Reset keys are provided
1. Trip key - Pressing of test key ( > 3 second ) and holding till
release of key triggers fault condition of relay contacts.
2. Reset key - Pressing key ( > 3 second ) reset / clear the fault
relay condition if fault current is within normal current range.
This key has memory function till power fail of instrument.
Potentiometers operations :Potentiometers are provided for
1. Leakage current (In) - To set Leakage current in Ampere
2. Trip time setting (T-DLY) - Fault sustain time in seconds before
relay driven to fault state.
DIP switch : DIP switch is provided in Smart+ model only
ELR relay configuration - En / D-En,
Relay 2 configuration - Alarm or fail safe
Leakage Fault reset mode - Automatic with 3 retry or Manual reset
Smart Model
+
L1
12
10
L2
L3
N
L N
Aux Supply
S1 S2
CBCT
3 4
30mA to 30A (Type A)
80% - 100 % of In
> 50 % of In
Below 15% of Trip value
60V - 300V AC/DC
20 - 60V DC / (20-40 VAC)
45 to 66 Hz range
+ 5% of full scale
+ 5% of set trip time or 50ms
(whichever is greater)
< 25 millisecond for leakage current greater than
5 x In, with exception of 30A setting
23°C +/- 2°C
Sinusoidal (distortion factor 0.005)
50/60 Hz ± 2%
230 ± 1%
50 or 60 Hz ±2%
< 4 VA approx
IEC 61326-1:2012 Table2
IEC 60688
IEC 61000-4-3 10 V/m Min - Level 3
IEC 61010-1-2001,Permanently connected use
IEC60529
2
III 300 V
2.2 kV AC, 50Hz for 1 minute between
all electrical circuits
-20 to +65°C
- 40 to +75°C
0... 90% (non condensing)
Half sine 30gn duration 18 ms ( IEC 60068-2-27)
10...150...10 Hz, 0.15mm amplitude
IP40 - Front face Only , IP20 - Terminals
1 CO ( 1NC + 1NO )
1 NO ( Optional )
5A / 250 VAC or 30VDC
1 x 10^7 OPS
5 x 10^4 OPS
Smart Model
L
O
A
D
E
