Application
Use the WRZ-STR0000-2 Series Wireless Refrigerator or Freezer Temperature Transmitter and Probe
Assemblies to sense the temperature in either a refrigerator or freezer unit, and transmit wireless
temperature data to a receiver or controller.
In a mesh application, the WRZ sensor is compatible with the ZFR18xx Wireless Field Bus Systems
(ZFR181x, ZFR182x, ZFR183x). See Table 3. The transmitter communicates with system controllers
through the ZFR18xx Router, the ZFR or the ZFR Pro Series Router. Up to nine WRZ Series Sensors
can associate with a single Controller.
You can also use a WRZ-STR0000-2 Series Wireless Refrigerator or Freezer Temperature Transmitter
and Probe Assembly in a one-to-one application non-mesh network to communicate with a
WRZ-7860-0 Wireless Receiver. The WRZ-7860-0 Receiver transfers data to the controller through
the Sensor Actuator (SA) communication bus. In an application, one WRZ-STR0000-2 Series
Transmitter reports to one WRZ-7860-0 Receiver, but up to five WRZ-STR0000-2 Series Transmitters
can associate with a single WRZ-7860-0 Receiver.
The WRZ-STR0000-2 Series Transmitter can transmit sensed temperature and low battery conditions
to an associated router or receiver. Use the WRZ-STR0000-2 Series Wireless Refrigerator or Freezer
Temperature Transmitter and Probe Assemblies for indoor, intra-building applications only.
Important: The WRZ-STR0000-2 Series Wireless Refrigerator or Freezer Temperature
Transmitter and Probe Assemblies are intended to provide an input to equipment under
normal operating conditions. Where failure or malfunction of the transmitter and probe
assembly could lead to personal injury or property damage to the controlled equipment or
other property, additional precautions must be designed into the control system. Incorporate
and maintain other devices, such as supervisory or alarm systems or safety or limit controls,
intended to warn of or protect against failure or malfunction of the transmitter and probe
assembly.
Important: Le WRZ-STR0000-2 Series Wireless Refrigerator or Freezer Temperature
Transmitter and Probe Assemblies est destiné à transmettre des données entrantes à un
équipement dans des conditions normales de fonctionnement. Lorsqu'une défaillance ou un
dysfonctionnement du transmitter and probe assembly risque de provoquer des blessures
ou d'endommager l'équipement contrôlé ou un autre équipement, la conception du système
de contrôle doit intégrer des dispositifs de protection supplémentaires. Veiller dans ce cas à
intégrer de façon permanente d'autres dispositifs, tels que des systèmes de supervision ou
d'alarme, ou des dispositifs de sécurité ou de limitation, ayant une fonction d'avertissement
ou de protection en cas de défaillance ou de dysfonctionnement du transmitter and probe
assembly.

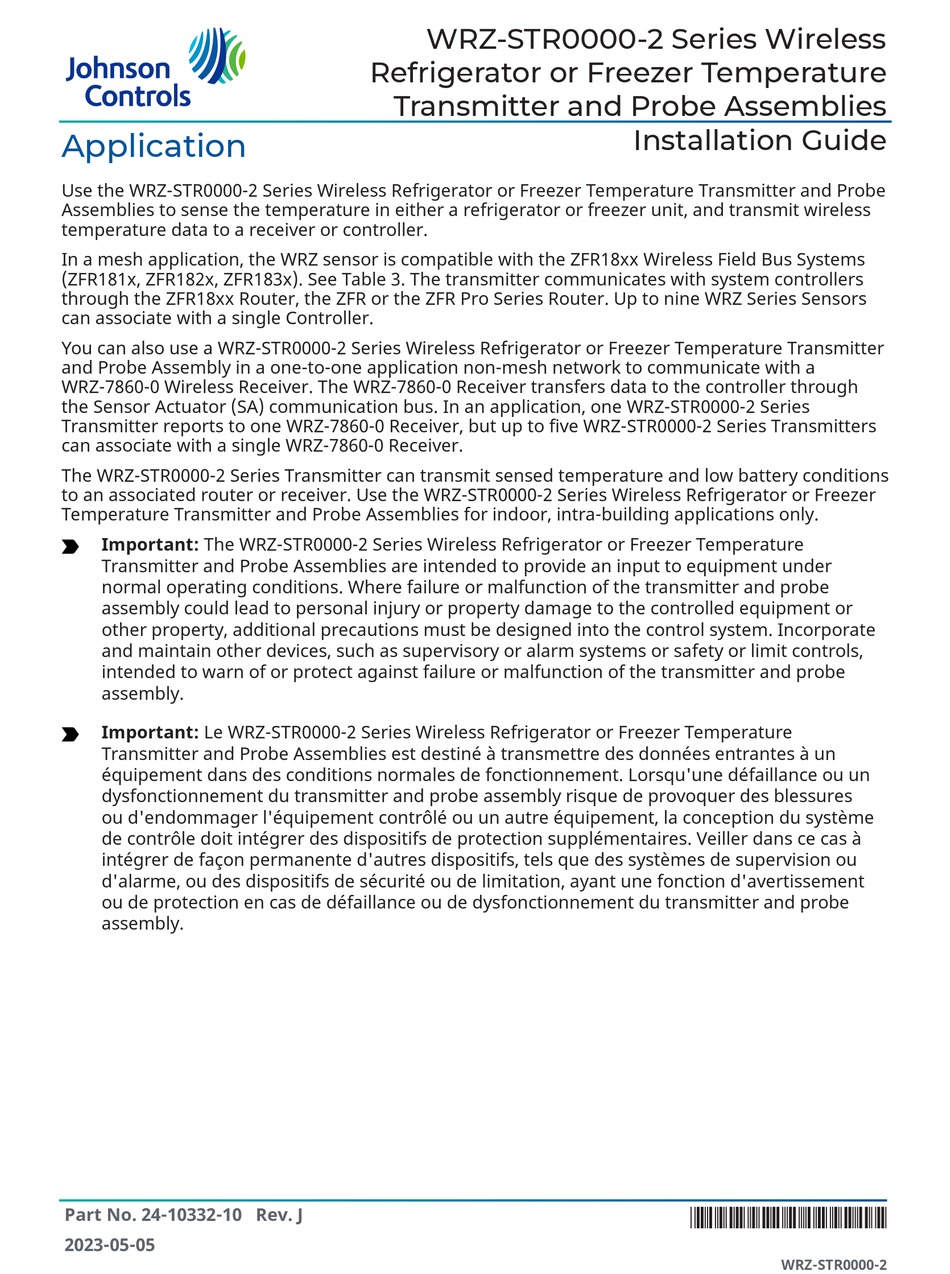

Part No. 24-10332-10 Rev. J
2023-05-05
WRZ-STR0000-2 Series Wireless
Refrigerator or Freezer Temperature
Transmitter and Probe Assemblies
Installation Guide
*241033210J*
WRZ-STR0000-2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Johnson Controls WRZ-STR0000-2 Series
Summary of Contents for Johnson Controls WRZ-STR0000-2 Series
- Page 1 WRZ-7860-0 Receiver. The WRZ-STR0000-2 Series Transmitter can transmit sensed temperature and low battery conditions to an associated router or receiver. Use the WRZ-STR0000-2 Series Wireless Refrigerator or Freezer Temperature Transmitter and Probe Assemblies for indoor, intra-building applications only.
-
Page 2: North American Emissions Compliance
Le terme « IC » précédant le numéro d'accréditation/inscription signifie simplement que le produit est conforme aux spécifications techniques d'Industry Canada. Installation To install the WRZ-STR0000-2 Series Wireless Refrigerator or Freezer Temperature Transmitter and Probe Assembly, follow these guidelines: •... - Page 3 Coin to unlock the transmitter housing from the mounting base locking tab. Mounting To surface mount the WRZ-STR0000-2 Series Transmitter, use the adhesive tape pieces affixed to the back of the sensors. WRZ-STR0000-2 Series Wireless Refrigerator or Freezer Temperature Transmitter and Probe Assemblies...
- Page 4 WRZ-STR0000-0 Series Transmitter. To mount the transmitter base with adhesive foam tape, complete the following steps: Clean the required mounting surface to ensure that the adhesive foam tape sticks to the surface. WRZ-STR0000-2 Series Wireless Refrigerator or Freezer Temperature Transmitter and Probe Assemblies Installation Guide...
- Page 5 Slot Tamper-resistant set screw Mounting base Tabs Transmitter housing a. Loosen but do not remove the tamper-resistant set screw on the locking tab on the mounting base. WRZ-STR0000-2 Series Wireless Refrigerator or Freezer Temperature Transmitter and Probe Assemblies Installation Guide...
- Page 6 Figure 3. Important: Do not turn on the WRZ-STR0000-2 Series Transmitter until an installed receiver or controller operates in the same Radio Frequency (RF) range. Without this condition, the transmitter uses a higher-than-normal battery current as it attempts to find a receiver or controller within range, which results in reduced battery life.
- Page 7 Preparing the WRZ-STR0000-2 Series Transmitter for operation To prepare the WRZ-STR0000-2 Series Transmitter for operation, and to reinstall the transmitter housing on its mounting base, complete the following steps:: Place the appropriate DIP switch overlay, based on the application, over the DIP switches. See Figure 4 through Figure 6.
- Page 8 Set the PAN OFFSET switches according to the job or system plans. Important: Ensure that the PAN OFFSET is the same for each ZFR or ZFR Pro Series Coordinator, ZFR or ZFR Pro Series Router, and WRZ-STR0000-2 Series Transmitter in a mesh network.
- Page 9 Tool to tighten the tamper-resistant set screw and secure the transmitter assembly onto its mounting base. See Figure 2. Press and release the signal test button on the WRZ-STR0000-2 Series Transmitter as shown in Figure 1 to initiate a signal strength test with the associated ZFR or ZFR Pro Series Router, or WRZ-78x0-0 Receiver.
-
Page 10: Additional Product Information
-30 (-34) 71,246 -20 (-29) 50,127 -10 (-23) 35,756 0 (-18) 25,797 10 (-12) 18,846 20 (-7) 13,924 30 (-1) 10,397 40 (4) 7,846 50 (10) 5,977 WRZ-STR0000-2 Series Wireless Refrigerator or Freezer Temperature Transmitter and Probe Assemblies Installation Guide... -
Page 11: Setup And Adjustments
1,748 Setup and adjustments Use the NetZoneSensor option in the CCT software to configure the WRZ-STR0000-2 Series Wireless Refrigerator or Freezer Temperature Transmitter and Probe Assemblies as a Cooler or Freezer NetSensor. In CCT Release 5.1 software or later, to define the hardware setting, complete the following steps: Click Define Hardware. -
Page 12: Version Compatibility
See Table 4 for ordering information. Batteries The two AA alkaline batteries supplied with the WRZ-STR0000-2 Series Transmitter have a life of 5 to 10 years or more, depending on the model and application. The transmitter reports a low battery condition to the receiver or controller, which relays the low battery condition to the system. -
Page 13: Technical Specifications
Temperature sensor type External 3K ohm NTC thermistor Temperature sensor See Table 2 thermal characteristics Materials Transmitter: NEMA 1 white plastic housing Temperature sensor probe: clear acrylic cylinder WRZ-STR0000-2 Series Wireless Refrigerator or Freezer Temperature Transmitter and Probe Assemblies Installation Guide... -
Page 14: Product Warranty
The performance specifications are nominal and conform to acceptable industry standard. For application at conditions beyond these specifications, consult the local Johnson Controls office. Johnson Controls shall not be liable for damages resulting from misapplication or misuse of its products. -
Page 15: Contact Information
THE NETHERLANDS MANCHESTER DISTRICT M40 2WL WUXI JIANGSU PROVINCE UNITED KINGDOM 214028 CHINA Contact information Contact your local Johnson Controls representative: www.johnsoncontrols.com/locations Contact Johnson Controls: www.johnsoncontrols.com/contact-us WRZ-STR0000-2 Series Wireless Refrigerator or Freezer Temperature Transmitter and Probe Assemblies Installation Guide... - Page 16 © 2023 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document revision and are subject to change without notice. www.johnsoncontrols.com...
