C2190D

H.264 DECODER

Stand Alone

Decoder

MANUAL

Firmware 2.2.0.5 Version

Table of Contents

Summary of Contents for Clairvoyant C2190D

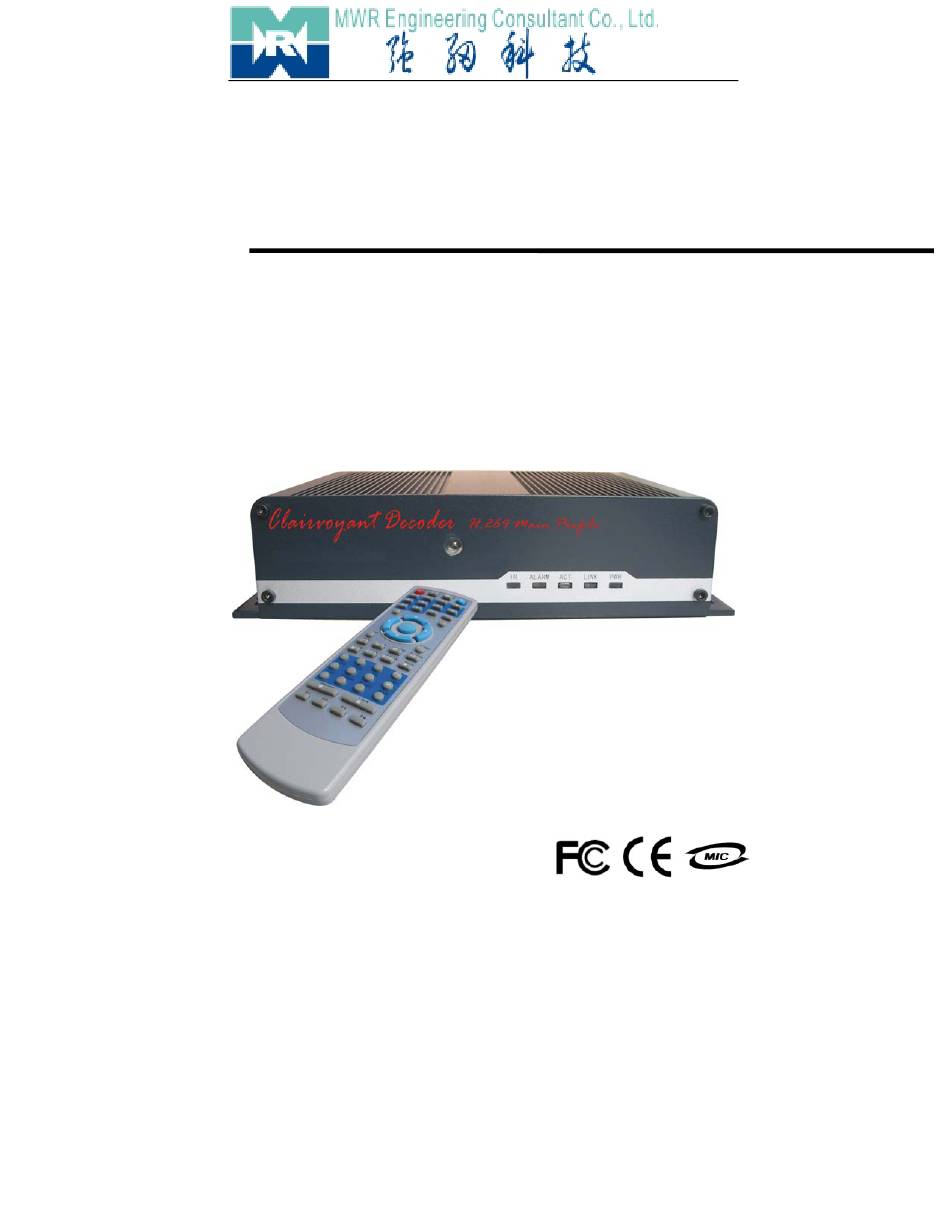

Page 1 C2190D H.264 DECODER Stand Alone Decoder MANUAL Firmware 2.2.0.5 Version...
Page 2 Revision Date : 2009.06.01 Trademarks and/or registered trademarks are the property of their respective owners The information presented in this publication has been carefully prepared and is believed to be correct at the time of publication. However, no responsibility will be assumed for any inaccuracies.
Page 3 WARNING: If the actions indicated in a “WARNING” are not complied with, injury or major equipment damage could result. A warning statement typically describes the hazard, its possible effect, and the measures that must be taken to reduce the hazard. CAUTION: If the action specified in the “...
Page 4 environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
Page 5 All the safety and operating instructions must be read before the unit is operated. • Make sure not to connect the power before you install the NVD. • There is great chance of damaging your NVD if the NVD is opened by an unqualified service engineer or installer.
Page 6: Table Of Contents
Table of Contents 1Key Features ....................7 1.1 Brief Introduction ................7 1.2 Features .................... 7 1.3 Topologies ..................8 2 Appearance and Installation ..............10 2.1 Front-end Panel ................10 2.2 Back-end Panel ................10 2.3 Installation ..................
Page 7: 1Key Features
Clairvoyant 2190D 1Key Features 1.1 Brief Introduction Network Video Decoder is an embedded surveillance device designed for network application uses the most mature and high reliability exclusive DSP solution in the industry together with powerful RTOS (Real-time Operating System) to actually realize industry grade MTBF (Mean Time Between Failure).All of the encoders in our company are compatible with it(NVD).It needn’t PC platform, receiving...
Page 8: Topologies
Clairvoyant 2190D 1.3 Topologies 1.4 Technical Specification： Video Definition PAL: 352*288 (CIF), 704*288 (2CIF), 704*576 (D1); NTSC: 352*240 (CIF), 704*240 (2CIF), 704*576 (D1) Video Compression H.264 Main Profile@ Level 3 Decode Frame Rate PAL: 25 fps 2CIF x 4 channels or 25fps D1 x 2 channels...
Page 9 Clairvoyant 2190D Communication Ports 1x 10M/100M Ethernet port, 1 x RS485 port, 1 x RS232 port Alarm Input 2 channel on/ off input, supporting NO (Normally Open) or NC (Normally Close) sensors Alarm Output 4 channel on/ off output, 120VAC 1A/ 24VDC 1A Power Supply DC 12V, 1.5A...
Page 10: Appearance And Installation
Clairvoyant 2190D 2 Appearance and Installation 2.1 Front-end Panel PWR：Power Indicator Light LINK：Network Connection Indicator Light ACT：Network Transmission Indicator Light ALARM：Alarm Indicator Light Remote -control Indicator Light Window of Remote-control Receiver 2.2 Back-end Panel Back-end Panel Image of Decoder Instruction：...
Page 11: Installation
Clairvoyant 2190D 1. Vout：Composite Video Output 3. DC12V：Power Supply Input, DC12V(1A). 4. MIC：Microphone Input 5. LAN：(ETHERNET) Network Interface 6. RESET：All parameter restore to default value after press it. Notice:Please don’t press RESET if you are not professional operator. 7．Aout：Audio Output Interface Nut : Prevent from being damaged by thunder Notice: Connect it to the Lab network system correctly.
Page 12: Use
Clairvoyant 2190D 3 USE 3.1 Remote-controller 【】 Power ON/OFF 【】 Audio Monitor ON/OFF 【Status】 Display System Information 【Soft-KB】 Open/Close Soft Keyboard 【0 - 9】 NumKey Num-Input under Menu Status Channel-selection Input under Non-Menu Status 【<——】【C】 Clear 【+ -】...
Page 13: Main-Interface
Clairvoyant 2190D 3.2 Main-Interface Figure appears as follows after put through the Power Supply. System Time Connection Monitor Talk-back Alarm All DVS (Digital Video Server/ IP Camera) of our company can be connected. 13/ 31...
Page 14: Structure Of System Menu
Clairvoyant 2190D 3.3 Structure of System Menu Link Shut MLink System Parameter MSet Network Setup Main Menu System Time ABook System Information Alarm Save Parameter Alert 3.4 Soft-Keyboard Operation Press Soft Keyboard to input “User’s Name”, “URL”. Input Input Box...
Page 15: Main-Menu
Clairvoyant 2190D Enter Enter 3.4 Main-Menu Figure appears as follows after press Menu Instruction: Link Enter Operating Interface of Single-channel Connection Shut Disconnect Single-channel or Recycle connection MLink Enter Operating Interface of Recycle Connection MSet Enter Interface of Recycle Setup...
Page 16: Connection
Clairvoyant 2190D 3.5 Connection Move the cursor to Connect, press Enter, figure appears as follows: ◆ Name: Only if when opened DDNS (Set it in Network Parameter) but can’t connect to DVS by URL then use this parameter. URL: ◆...
Page 17: Disconnect
Clairvoyant 2190D 【Enter】 ◆ Password Move cursor to “Password”, press 【Soft Keyboard】,input password then press 【Enter】 Auto-connect ◆ Auto-connection if the network interrupts ◆ Directory Move cursor to “Directory” and select DVS if necessary 3.6 Disconnect Move cursor to Disconnect , press 【Enter】close all connections.
Page 18: Recycle Setup
Clairvoyant 2190D 3.8 Recycle Setup Move cursor to Recycle Setup ,press 【Enter】then figure appears as follows: URL： ◆ Move cursor to “URL”, press Num Key input IP address, press 【*】 input “.”,press 【Soft Keyboard】, then input domain name of the DVS, the length is 1-32.
Page 19: System Setup
Clairvoyant 2190D ◆ Port Move cursor to “Port”, press Num Key input port number. Transmit Mode ◆ “WAN” , “LAN” can be selected. Move cursor to “Transmit Mode”, press 【+】、【-】change it. Channel ◆ Move cursor to “Channel”, press Num key input channel number.
Page 20 Clairvoyant 2190D Instruction: System Parameter Enter System Parameter Setup Interface. Netware Setup Enter Netware Parameter Setup Interface System Time Enter System Time Setup Interface System Information Display System Information Save Parameter Save all parameter 3.9.1 System Parameter Move cursor to System Parameter , press 【Enter】, figure appears as follows:...
Page 21 Clairvoyant 2190D Set RS485 Address ◆ Function of RS485 Move cursor to “Function of RS485”,press 【+】【 -】 select function needed: Transparent Data, External Keyboard, Matrix etc. ◆ Baud-rate Move cursor to “Baud-rate”, press Num Key input Quality of Decoding Image ◆...
Page 22 Clairvoyant 2190D Move cursor to “DNS”, press Num Key to input, press 【←】【→】 to change it. ◆ Physical Address Move cursor to “Physical Address”, press Num Key or use Soft Keyboard input, press 【←】【→】 change it. ◆ DDNS：...
Page 23: Directory
Clairvoyant 2190D 3.9.5 Save Move cursor to Save Parameter , press 【Enter】save all parameter to Flash Chip. 3.10 Directory Move cursor to Directory , press 【Enter】, figure appears as follows: 23/ 31...
Page 24: Alarm Linkage
Clairvoyant 2190D Add/Delete address information 3.11 Alarm Linkage Move cursor to Alarm Linkage , press 【Enter】, figure appears as follows: Set when DVS gives an alarm, link current machine output. 24/ 31...
Page 25: Alarm Query
Clairvoyant 2190D 3.12 Alarm Query Move cursor to Alarm Query , press 【Enter】, figure appears as follows: Inquiry Alarm Record 25/ 31...
Page 26: Appendix I Faq
Clairvoyant 2190D Appendix I FAQ Can’t Connect to Server Check whether the net access line connect correctly ,check IP Address, Port Number, Channel Number, User’s Name, Password. Check Local IP Address, Subnet Mask, Default Gateway and DNS setup. It is a good way to check network connectivity by using Ping command.
Page 27: Appendix Ii Decoder Setup By Pc Software
Clairvoyant 2190D Appendix II Decoder Setup by PC Software Search Decoder Run SearchNVS on product CD or click on SearchNVS button on CD menu. Note: Please reference TV-Wall User’s manual to do C2190D setup. 27/ 31...
Page 28 Clairvoyant 2190D Set NVD Parameter – System Parameters Set NVD Parameter – Network Parameters 28/ 31...
Page 29 Clairvoyant 2190D Set NVD Parameter – Alarm Output Set NVD Parameter – User Account 29/ 31...
Page 30 Clairvoyant 2190D Set NVD Parameter – Alarm Info Set NVD Parameter – DVS Info 30/ 31...
Page 31 Clairvoyant 2190D Set NVD Parameter – Single Connect Set NVD Parameter – Loop Connect 31/ 31...
