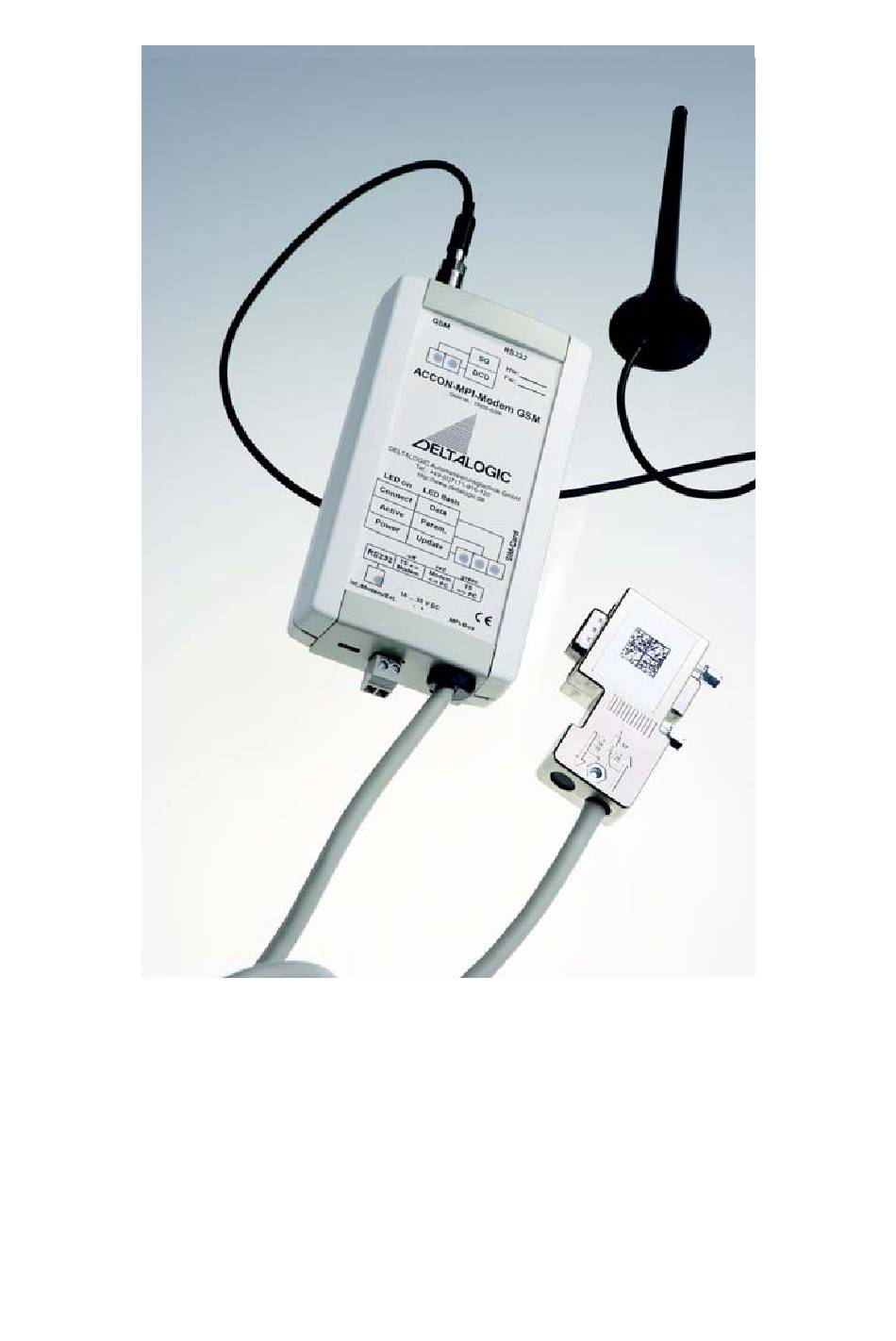

- Page 1 ACCON-MPI-Modem GSM User Manual from HW 1 & FW 3.10 The best solutions for PLC...
-
Page 2: Preface
PREFACE This manual is for project developers, users and assemblers who utilize the ACCON-MPI-Modem GSM. It shows the user the handling of the ACCON-MPI-Modem GSM and explains signaling functions. All necessary data for assembling should be provided to the assembler. © 1995 - 2009... -
Page 3: Table Of Contents
TABLE OF CONTENTS PREFACE..............2 TECHNICAL DESCRIPTION........4 SCOPE OF DELIVERY ..........6 DEVICE DESCRIPTION ..........7 REQUIREMENTS FOR OPERATING .......10 COMMISSIONING ..........12 INSTALLATION OF THE ACCON-MPI-MODEM GSM AT THE PLANT..........18 PARAMETRIZATION WITH ACCONFIGURATOR ...23 TECHNICAL DATA ..........26 ACCON-MPI-Modem GSM... -
Page 4: Technical Description
There is also an additional bushing to connect a further station e. g. a control panel, to the bus plug of the ACCON-MPI-Modem GSM. To use the ACCON-MPI-Modem GSM with STEP 7 via a modem connection, you need the TeleService option package from Siemens. - Page 5 FM35x modules cannot be parametrized with the ACCON-MPI-Modem GSM! Features: • Compact design • Quick commissioning • Modem and TS Adapter combined in one single device • Can be used as local programming adapter • Assembly on a top hat rail ACCON-MPI-Modem GSM...
-
Page 6: Scope Of Delivery
SCOPE OF DELIVERY • ACCON-MPI-Modem GSM • PC-Anschlusskabel • Hutschienenhalterung • CD mit Software ACCONfigurator zur Parametrierung des integrierten Modems • Handbuch Suitable accessories can be found on www.deltalogic.de. ACCON-MPI-Modem GSM... -
Page 7: Device Description
DEVICE DESCRIPTION Figure 2: ACCON-MPI-Modem GSM RS232 interface for the communication with the PC FME plug to connect GSM antennas Modem LEDs Status LEDs RS232 LED Switch to change between the different operating modes (microswitch) Power supply bushing for 24 VDC. Please keep the polarity in mind... - Page 8 LED display The six LEDs on the front side of the device inform about the operating state of the ACCON-MPI-Modem GSM. So sources of error can be detected very quickly. When the ACCON-MPI-Modem GSM is connected to the PLC a connection with the MPI bus will be established if the initialization of the internal modem was successful.
- Page 9 Table 2: DCD LED und SQ LED RS-232 LED The ACCON-MPI-Modem GSM works directly with the internal modem and can be connected to a telephone connection for remote maintenance. The RS232 interface does not have any function.
-
Page 10: Requirements For Operating
SIMATIC S7-300 or S7-400 controller. You always have to use the 24 VDC external power supply for the ACCON-MPI-Modem GSM. Please keep in mind that the ACCON-MPI-Modem GSM cannot be used with PROFIBUS! When using the device abroad, it is recommended to get information about the local radio networks and its frequencies. - Page 11 Minimum clearance The following minimum clearance has to be kept that • you can assemble and disassemble the ACCON-MPI-Modem GSM without disassembling other parts of the facility. • there is sufficient space to connect all interfaces and connections to standard accessories.
-
Page 12: Commissioning
COMMISSIONING Connecting the antenna On the front side of the ACCON-MPI-Modem GSM there is an antenna connection (FME plug). The antenna (FME bushing) is screwed in there and installed at a place with the best radio network quality. Example: Assembly of the magnetic base antenna... - Page 13 Figure 4: Inserted SIM card and ready-to-operate system You can use 1,8 V as well as 3 V SIM cards. Only insert and change the SIM card when the device is off! ACCON-MPI-Modem GSM...
- Page 14 The GSM network does not redirect e.g. a data call to the call number for voice connections. Please attend to dial the correct call number. You can establish a data connection between the following: analog ISDN analog ISDN Table 2: Connection types ACCON-MPI-Modem GSM...
- Page 15 Connecting to the automation system Connect the 9-pin SUB-D plug to the MPI interface of your S7 controller. When the ACCON-MPI-Modem GSM is connected to the PLC at the plant a connection to the MPI bus will be established if the initialization of the internal modem was successful.
- Page 16 Alternatively, you can use one of the standard drivers supplied with Windows (e.g. Standard 28800 bps Modem). You can choose the installed Modem in the programming software's settings. You choose the installed modem in the programming software during connection establishment. ACCON-MPI-Modem GSM...
- Page 17 Example: Setting the local modem Figure 6: Setting the local modem For analog connections to the GSM network you have to set the transmission service V.32. ACCON-MPI-Modem GSM...
-
Page 18: Installation Of The Accon-Mpi-Modem Gsm At The Plant
Adjust the connection in the dialog Set PG/PC Interface as follows: Figure 7: Set PG/PC Interface Choose the PC's COM port to which the ACCON-MPI-Modem GSM is connected to. ACCON-MPI-Modem GSM... - Page 19 It is stored in the initialization string (Init string) of the ACCON- MPI-Modem GSM. The Init string is set with the TeleService software or ACCONfigurator. Setting the PIN with TeleService Go to the tab »Modem«. You have to add »AT+CPIN="PIN"« in the Init string. ACCON-MPI-Modem GSM...
- Page 20 AT control sequence is correct! The second part contains the basic settings which normally need not to be changed. Initiate modem commands &F Load modem factory defaults Echo of commands ON ACCON-MPI-Modem GSM...
- Page 21 The user »ADMIN« is the only one who has the right to change all settings in the adapter including the settings of the other users. The other two users can only change their own password and call- ACCON-MPI-Modem GSM...
- Page 22 The parametrization can be done locally via the TeleService software microswitch position »Ext.« ) as well as via a telephone connection microswitch position »Int.« The ACCON-MPI-Modem GSM is ready to operate when the Power LED as well as the Active LED is on. ACCON-MPI-Modem GSM...
-
Page 23: Parametrization With Acconfigurator
TeleService. The program can be found on the DELTALOGIC Automatisierungstechnik-CD and on www.deltalogic.de. Before starting with the parametrization of the ACCON-MPI-Modem GSM you have to choose the proper device via Adapter/Product > …select. And you have to put the micro switch from »int.« to »ext.«. Connect the ACCON-MPI-Mode GSM to a PG or a PC with the supplied null modem cable. - Page 24 Set the COM port via Adapter/Product > Select com port/serial number to which the ACCON-MPI-Modem GSM is connected to. Read out the settings from the ACCON-MPI-Modem GSM via Adapter/Product > Read parameter and enter the changes. Store the new settings via the button »Save/End«.
- Page 25 Modem GSM to the PC via the supplied null modem cable. Set the COM port via Adapter/Product > Select com port/serial number to which the ACCON-MPI-Modem GSM is connected to. Call Adapter/Product > PIN activating in ACCON-MPI-Modem GSM/ACCON-TS-300 GSM. The following window appears: Figure 15: PIN for modem Enter your actual PIN and click on »set the PIN«.
-
Page 26: Technical Data
Class 4 (2 W) for GSM 850 / EGSM 900 Class 1 (1 W) for DCS 1800 / PCS 1900 GSM/DCS certification GCF-CC V.3.16.0 and GT.01 PCS certification NAPRD.03 (V.2.10.1) Communication interface RS232, serial asynchronous Transmission rate 9.6 KBit/s to 115 KBit/s ACCON-MPI-Modem GSM... - Page 27 SUB-D plug MPI n. c. M24 VDC DATA.B RTS AS 0V (M5 VDC) n. c. +24 VDC DATA.A RTS PG Table 4: Pin assignment Connection cable Null modem cable for the connection to the PC (supplied in delivery) ACCON-MPI-Modem GSM...
