Summary of Contents for Solwise PL-200AV
- Page 1 HomePlug AV 200 Mbps Eth Adaptor Easy Start Guide VERSION 1.0...
- Page 2 The CE and compliance certificate is available for download from the Solwise web site Product warranty does not apply to damage caused by lightning, power surges or wrong voltage usage.
-
Page 3: Table Of Contents
Easy Start Guide Contents About the Product..............5 Package Contents..................5 Requirements....................5 Getting Started................7 Planning your Network................8 Local Network..........................8 Gaming Network..........................8 Entertainment Network........................9 Media Network..........................9 Remove/Disable Conflicts ................10 TCP/IP............................10 Internet Properties ........................11 Connecting the Device ................11 About HomePlug AV Utility ..........12 Requirements.....................12 Software ............................ - Page 4 Easy Start Guide Firmware Upgrade Tab................14 Local Firmware Upgrade ......................15 Remote Firmware Upgrade....................... 15 Encryption Tab...................16 Local Private Network Name ....................17 Remote Private Network Name....................17 Network Information Tab.................18 Regulatory Compliance Notices ........19 FCC Statement ...................19 European Regulations................19 Page 4 of 4...
-
Page 5: About The Product

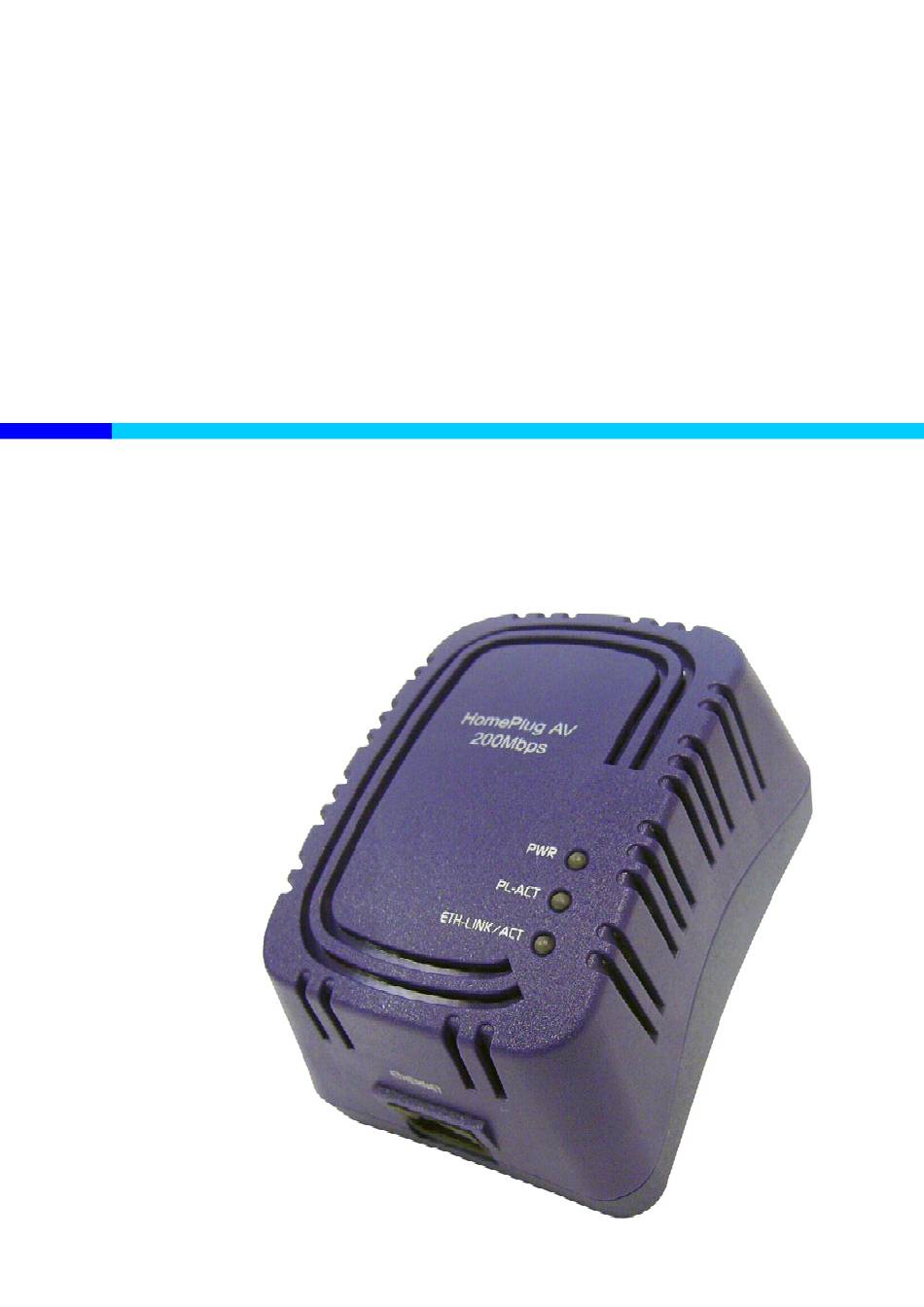

PL-200AV (EU) Two pins Euro plug with integrated 230V AC power supply. • PL-200AV (US) Two pins US plug with integrated 120V AC power supply. HomePlug AV is operating system independent. It can be connected to any device using Windows, Macintosh, or Linux operating systems. - Page 6 Easy Start Guide Device Design HomePlug AV has three LED indicators and an Ethernet port. PL-ACT LED ETH-LINK/ACT LED Ethernet Port Label Status Description/ Function On/Off Power is on/off. Flashes Standby mode. HomePlug AV automatically switches to Standby mode after 15 minutes when there is no active Ethernet device connected.
-
Page 7: Getting Started
Easy Start Guide Getting Started Setting up the device is easy. The flowchart below provides an outline of the steps you need to go through. Some steps are required while some are optional. There are brief descriptions beside each step to help you along. -
Page 8: Planning Your Network
Easy Start Guide Planning your Network Here are ideas on how you can use HomePlug AV within your network. Local Network Share ultra fast Internet connection with any computer wherever it is in the house. Gaming Network Connect your gaming console into the Internet and compete with other online players. Page 8 of 8... -
Page 9: Entertainment Network
Easy Start Guide Entertainment Network Experience the distinction of viewing and listening to media files using your entertainment system. Media Network Realize your high tech lifestyle by converging your IP devices into a single network. Page 9 of 9... -
Page 10: Remove/Disable Conflicts
Easy Start Guide Remove/Disable Conflicts You may need to check the TCP/IP and Internet properties to make sure there are no conflicts with the way devices in the network are identified. TCP/IP HomePlug AV’s IP Address should be obtained automatically. To set the TCP/IP properties: 1. -
Page 11: Internet Properties
Easy Start Guide Internet Properties A browser uses the default Internet connection. To set the Internet Properties: 1. Select Start > Run. This opens the Run dialog box. 2. Enter control inetcpl.cpl and then click OK. This opens the Internet Properties dialog box. 3. -
Page 12: About Homeplug Av Utility
Easy Start Guide About HomePlug AV Utility HomePlug AV Utility is a software application that allows you to configure HomePlug AV. It is mainly used for changing the Private Network Name and detecting other HomePlug AV’s in the network. Installation is straightforward and the user interface is easy to use. Requirements Your computer must meet the following requirements: Software... -
Page 13: Accessing Homeplug Av Utility
Easy Start Guide Two applications will be installed in your computer. HomePlug AV Utility will be installed first. Afterwards, a dialog box opens to ask if you would like to install .NET Framework 1.1. Click Yes to install the package. The .NET Framework 1.1 is required to open HomePlug AV Utility. -
Page 14: Homeplug Av Utility User Interface
Easy Start Guide HomePlug AV Utility User Interface The HomePlug AV Utility user interface is divided into tabs. These tabs include: Firmware Upgrade Encryption Network Information Firmware Upgrade Tab The Firmware Upgrade tab provides the capability to upgrade the firmware of local and remote HomePlug AV’s. -
Page 15: Local Firmware Upgrade
Easy Start Guide Local Firmware Upgrade To upgrade the firmware of a local HomePlug AV: 1. Open HomePlug AV Utility. 2. Click Browse to select the location of the upgrade file. This file is downloaded from the product Web site with a file extension of NVM. 3. -
Page 16: Encryption Tab
Easy Start Guide Encryption Tab The Encryption tab provides the function to change the Private Network Name for HomePlug AV devices within the network. Different Private Network Names can be used to create independent networks within the network. It acts as an authentication mechanism against network eavesdroppers. Encryption Tab Page 16 of 16... -
Page 17: Local Private Network Name
Easy Start Guide Local Private Network Name For added security, you can change HomePlugAV (case sensitive), which is the default Private Network Name. To set the HomePlug AV Network Password: 1. Open HomePlug AV Utility. 2. Click Encryption tab. 3. Enter the Private Network Name. This field is case sensitive. 4. -
Page 18: Network Information Tab
Easy Start Guide Network Information Tab Network Information tab displays the network information for remote HomePlug AV’s detected in the network. Network Information Tab The Network Information tab provides network activity data for remote devices. TEI Refers to the Terminal Equipment Identifier. Device MAC address Refers to the HomePlug AV MAC Address. -
Page 19: Regulatory Compliance Notices
Easy Start Guide Regulatory Compliance Notices FCC Statement This equipment has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 20 Easy Start Guide Safety Warnings For your safety, be sure to read and follow all warning notices and instructions. Do not open the device. Opening or removing the device cover can expose you to dangerous high voltage points or other risks. Only qualified service personnel can service the device. Please contact your vendor for further information.
