Pepperl+Fuchs KC-LCD-48-1R-24VDC Quick Start Manual

Timer, Counter
Model Number

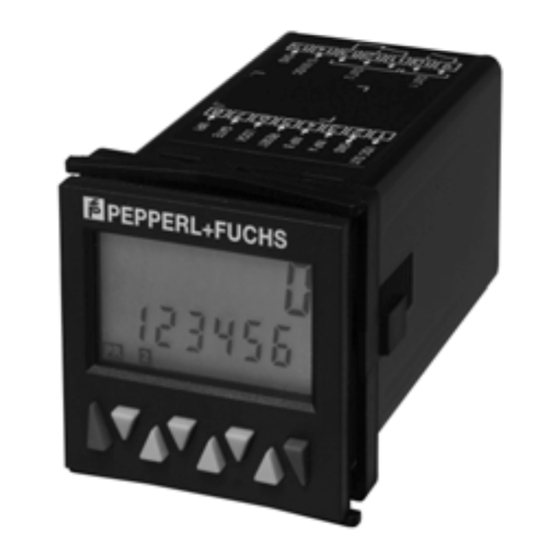

KC-LCD-48-1R-24VDC
LCD batch controller with 1 relay output
and 24 V supply voltage
DC
Features
• Counter/Timer
• Adding/subtracting via 2 separate in-
puts
• Batch controller with 1 pre-selection
• Easy-to-read, 2-line LCD display with
symbols for indicated pre-selection
and output status
• Display range and preselection range
from -999999 up to 999999
Overflow will be evaluated correctly
up to 1 decade
• PNP and NPN sensors can be con-
nected
• Degree of protection IP65 (front only)
Refer to "General Notes Relating to Pepperl+Fuchs Product Information".
Pepperl+Fuchs Group USA: +1 330 486 0001
www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com
Technical data
General specifications
Pre-selection
Data storage
Programming
Indicators/operating means
Type
Display value
Pre-selection
Key interlock
Decimal point
Scale factor
Reset
Electrical specifications
Fusing
Operating voltage
Power consumption
Input
Connection
Signal voltage
High
Low
Counting frequency
Minimum pulse duration
Impedance
Count modes
Pulse counter
Timer
Output
Relay
Switching voltage
Switching current
Switching power
Mechanical life
Electrical life
Response time
Sensor supply
Ambient conditions
Ambient temperature
Storage temperature
Relative humidity
Altitude
Mechanical specifications
Degree of protection
Mass
Dimensions
Compliance with standards and directi-
ves
Directive conformity
EMC Directive 2004/108/EC
Standard conformity
Emitted interference
Mech. capacity
Shock and impact resistance
Germany: +49 621 776 4411 Singapore: +65 6779 9091
fa-info@de.pepperl-fuchs.com fa-info@sg.pepperl-fuchs.com
KC-LCD-48-1R-24VDC
single
> 10 years, EEPROM
keypad-driven menu
2-line, 2 x 6-digit LC display with leading sign
digit height 9 mm
digit height 7 mm
via "high" potential at "LOCK" input
0 to max 5 fractional digits
0.0001 ... 99.9999
manually or external
11 ... 30 V DC: T 0.2 A
U 11 ... 30 V DC
B
P max. 4 W
0
Counter inputs: A and B
Control/reset inputs: LOCK, RESET
3.5 ... 30 V DC
0 ... 2 V DC
30 Hz / 5 kHz
Control/reset inputs: static / 1 ms
10 kOhm
Counting with counting direction (cnt.dir),
difference counting (up.dn),
up/down counting (quad),
Time measurement via GATE input (FrErun),
counter input A: Start, counter input B: Stop (InpA.InpB.),
counter input B: Start/Stop (InpB.InpB.),
changeover contact
max. 250 V AC / 110 V DC
max. 3 A AC/DC, min. 30 mA DC,
max. 750 VA / 90 W
7
2 x 10 switching cycles
4
5 x 10 cycles at 3 A
< 15 ms pulse counter
< 10 ms time counter
connected power supply is looped through,
max. 50 mA
-10 ... 50 °C (14 ... 122 °F)
-25 ... 75 °C (-13 ... 167 °F)
≤ 93 % at 40 °C
(noncondensing)
0 ... 2000 m
IP65 (front)
approx. 117 g
48 mm x 48 mm x 109.8 mm
EN 61000-6-2:2005, EN 50295:1999
DIN EN 55011:2009, Class B
EN 60068-2-6:2008
10 ... 55 Hz / 1 mm / XYZ
30 min in each direction
EN 60068-2-27:1995
100 G / 2 ms / XYZ
3 times in each direction
1
