FREQUENCY SETTING BOARD
Outline
FIX-50 is an option board for PCK-50 to be able to set the frequency easily.
When PCK-50 is inserted to the sockets of FIX-50, the desired frequency can be
obtained by 8 BCD switches on the board. A frequency and setting value can be
memorized by a save switch on the board. When PCK-50 is used for itself, FIX-
50 is used as a memory setting tool of the parameter.

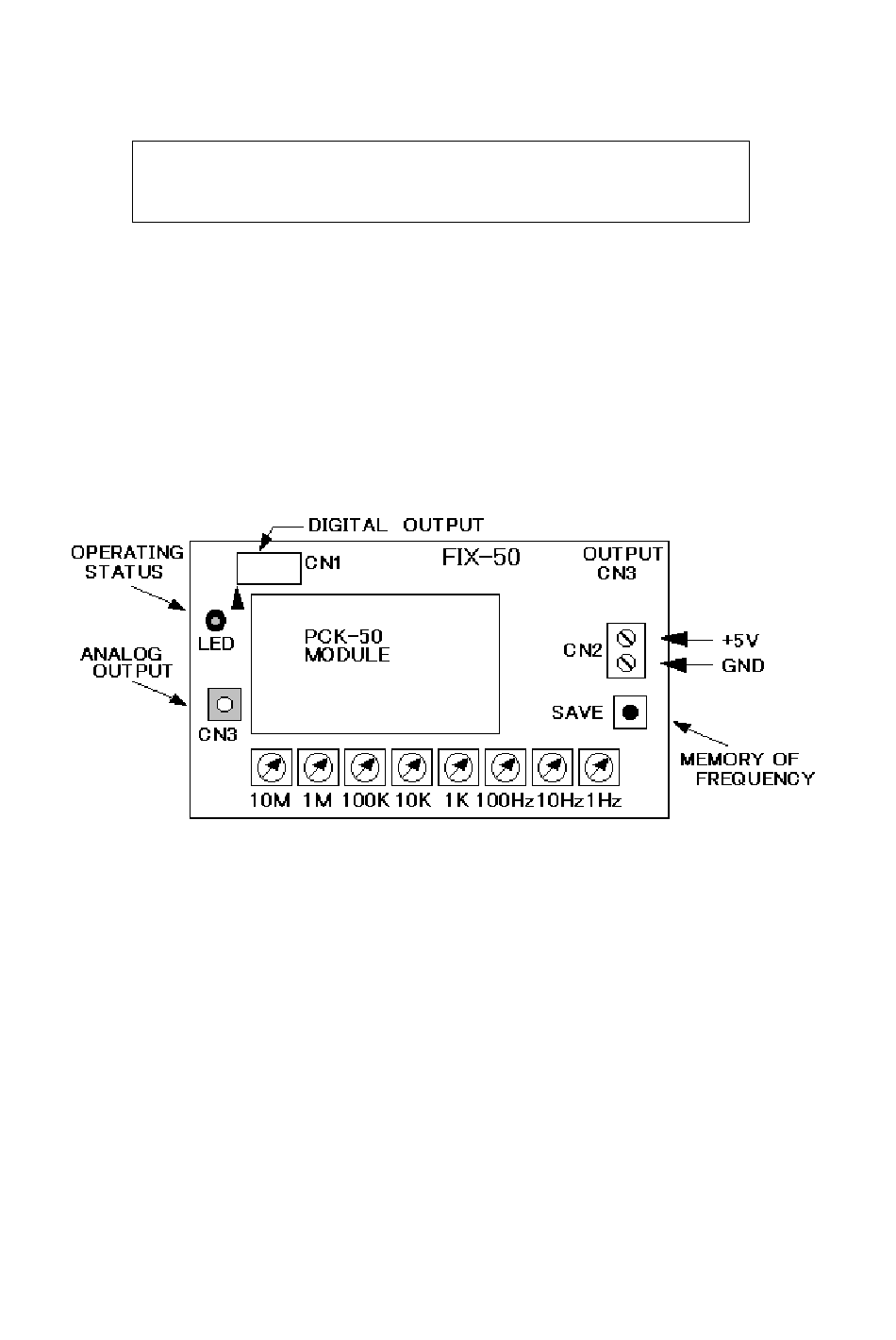

Layout
Specification
Voltage +5V ±5%(0.25V)
Current
less than 200mA(with PCK-50 )
LED
The LED lamp on the board indicates the operating status.
Lighting : LED always lights at the normal status
Blinking : LED blinks continuously when PCK-50 is not correctly mounted.
Blink once : In case of setting value was changed and the save switch is
pushed, LED blinks Momentarily.
.
