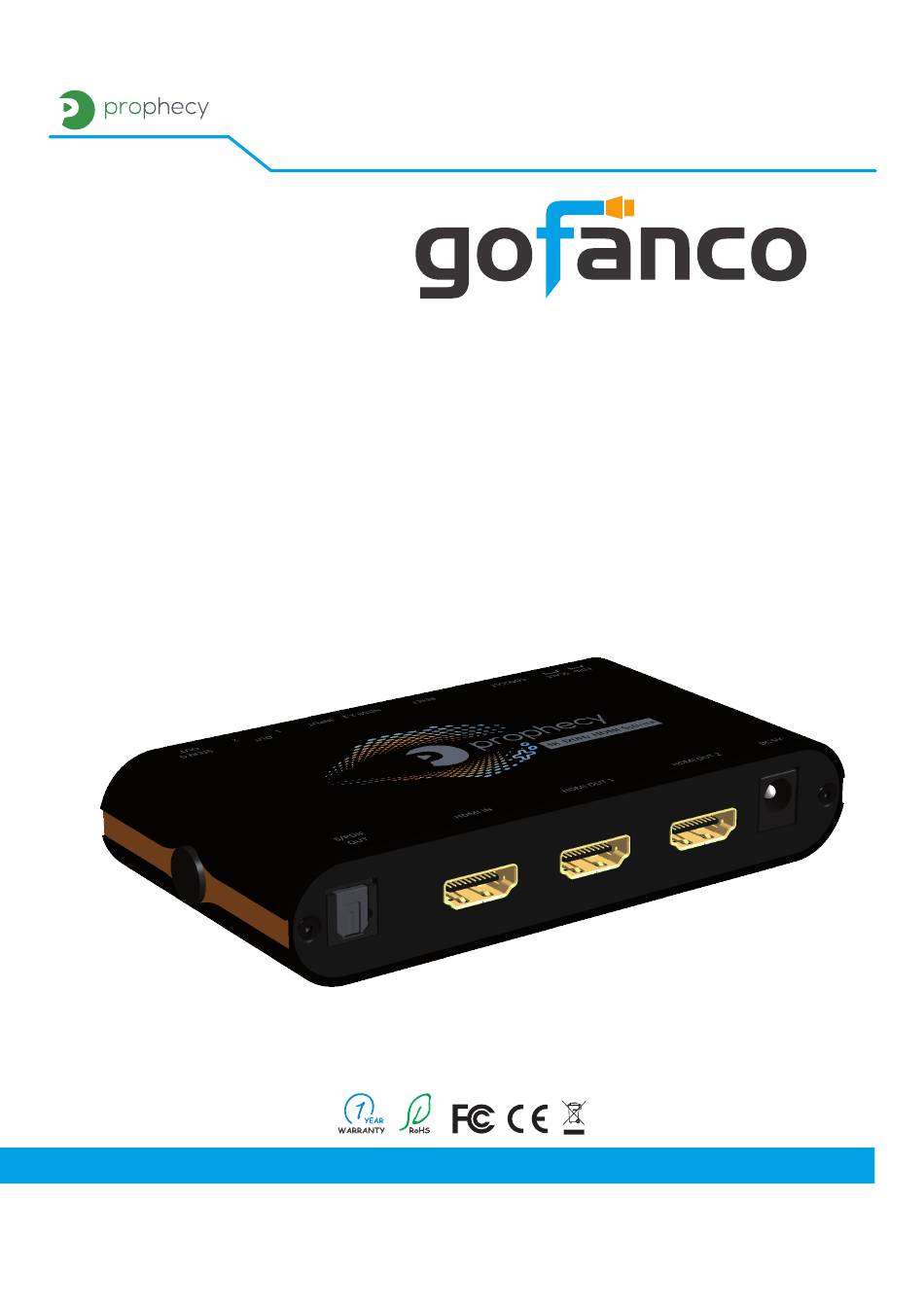

Page 1 ® PRO-HD21Split2P 1x2 4K 120Hz HDMI Splitter with Bulit-in & User Adjustable EDID Management and Audio Extractor User‘s Guide Made in Taiwan...
Page 2 ® PRO-HD21Split2P Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
Page 3 ® PRO-HD21Split2P 1. Introduction gofanco Prophecy PRO-HD21Split2P is a cost-effective and state-of-the-art 4K @120Hz HDMI splitter solution in the mar- ket today, transmitting high-definition video and high-quality audio from one source to 2 different locations without losing quality. The PRO-HD21Split2P also supports HDR and the true 4K120 video! In addition, this device supports separation of high-quality digital S/PDIF (Toslink) audio &...
Page 4: Package Contents
® PRO-HD21Split2P • Supports audio extraction to Toslink & Stereo • Supports 4K to 1080p resolution downscaling • Supports pre-configured EDIDs and EDID learning • Supports xvYCC, x.v.Color & Deep Color • Firmware upgradable via Micro-USB for expanded compatibility • Supports Dolby Digital, DTS-HD and Dolby TrueHD audio Future 8K upgradable.
Page 5: Specifications
® PRO-HD21Split2P 4. Specifications Item Description Role of usage 1x2 Distribution Amplifier (Splitter) HDCP compliance HDCP 2.3 / 1.4 Up to FRL 5 (40G) Video bandwidth Video support Up to 4K2K 120Hz 4:4:4/4:2:2/4:2:0 DTS-HD Master Audio, Dolby TrueHD Dolby Digital, Audio support DTS, LPCM Human body model —...
Page 6: Connection Diagram
® PRO-HD21Split2P 5. Connection Diagram...
Page 7: Panel Description
® PRO-HD21Split2P 6. Panel Description Front Panel 1. EDID MODE: See more details in the DIP SWITCH SETTING section 2. Micro-USB Port: Firmware update / Software control 3. Push Button: Reset the device 4. LED Indicators: Input FRL format, Input signal, Output 1 signal, Output 2 signal (from left to right) 5.
Page 8: Dip Switch Setting
® PRO-HD21Split2P 7. Dip Switch Setting  On [ ] Off [  DIP Switch Position Description Pin 1 Pin 2 Pin 3 Pin 4   4K Ultra HD(4K@120 4:4:4 (32G)) 8ch PCM audio   4K Ultra HD(4K@120 4:2:0 (24G)) 2ch audio ...
Page 9: Installation
® PRO-HD21Split2P 8. Installation Broadcasts HDMI signal to 2 HDMI displays! • Switch off all devices, including the monitors. • Connect to the displays. • Connect an HDMI source (such as a Blu-ray Disc player) to the HDMI In. • Plug in 5V DC power supply. •...
Page 10: Software Operation
® PRO-HD21Split2P 9. Software Operation The included software features the following functions in Splitter mode: 1) Main: View input/output information; 2) EDID: Load user-defined EDID & read/download EDID; 3) Sys- tem: Firmware version/update & FRL (Fixed Rate Link) output This Windows PC software can be downloaded from our web- site.
Page 11 ® PRO-HD21Split2P 1. Splitter Control Interface Main Tab In this section, the software will show the input/output information.
Page 12 ® PRO-HD21Split2P EDID Tab 1. ) User-defined EDID • Set the dip switches to [Pin 1/2/3/4] to [---] • Click Load button to select the user-defined EDID file from the PC • Click Upload button to load the user-defined EDID file •...
Page 13 ® PRO-HD21Split2P System Tab 1. ) Firmware Version Click Read button to display the device’s current firmware version 2. ) Output FRL Mode Select bypass, 3Lanes/3G, 3Lanes/6G, 4Lanes/6G, 4Lanes/8G, 4Lanes/10G or 4Lanes/12G on output 1 & output 2...
Page 14 ® PRO-HD21Split2P 2. Firmware Update From the main screen, click Firmware Update button to enter the FW update interface. • Click the … button to select the file which you want to write into the device. • Click the Burn button and a message “Please power cycle …” will display.
Page 15: Limited Warranty
® PRO-HD21Split2P 10. Limited Warranty The SELLER warrants the PRO-HD21Split2P 1x2 HDMI 2.1 4K120 Splitter with Built- in & User Adjustable EDID Management and Audio Extractor free from defects in the material and workmanship for 1 year from the date of purchase from the SEL- LER or an authorized dealer.
