Summary of Contents for SPANARCI ZETA 2000
- Page 1 材质：105g铜版纸 尺寸：215 x95 mm 印刷：单黑 装订：骑马钉 注：封面封底背面不印刷...
- Page 2 ZETA 2000 JUMP STARTER User Manual Read this manual carefully before use and keep it for future reference...
-
Page 3: Table Of Contents
Contents - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1. -
Page 4: Product Overview

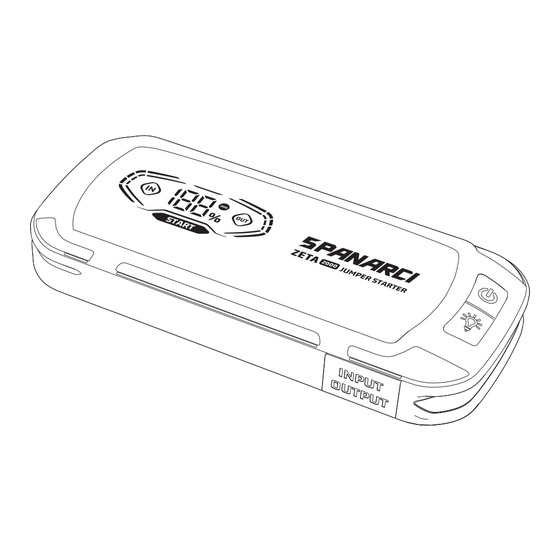

Thank you for choosing Spanarci. Thank you for purchasing Spanarci Jump Starter. It is a portable power bank with USB quick charge. 1. PRODUCT OVERVIEW Display Screen USB-C Port (IN/OUT) LED: Toggles the LED light through 4 light modes: 50%-100%-SOS-Strobe USB-A Port (OUT) LED Button: Press 2s to turn the unit "ON"&"OFF"... -
Page 5: Package Contents
2. PACKAGE CONTENTS 3. HOW TO USE ZETA 2000 ×1 12V Booster Clamps ×1 USB-C TO C Cable ×1 Connect the jumper cables with the ZETA 2000 Connect the jump clamps with the car battery jump starter. correctly. START Warranty Card... - Page 6 30W fast input or output. USB-A or USB-C output voltage. ZETA 2000 is designed to jump start 12-Volt lead-acid batteries, the “START” will be in yellow if the voltage of the car battery is too low. You can press the power button and the light button at the same time for 3s to activate the BOOST FUNCTION.
-
Page 7: Specifications
4. SPECIFICATIONS Performance index Items Specifications L × W × H (mm) 212*92*45 Dimensions Internal Battery Lithium Ion Peak current 2000A Battery Capacity 44.4Wh Input USB-C PD30W (5V 3A, 9V 3A, 12V 2.5A, 15V 2A, 20V 1.5A) / 5V 1A / 5V 2A Main Parameters PD30W (5V 3A, 9V 3A, 12V 2.5A, 15V 2A, 20V 1.5A) / 5V 1A / 5V 2A Output USB-C... -
Page 8: How To Charge The Zeta2000
Plug the other end of the Type-C cable into an external power supply. Note：The ZETA 2000 is equipped with a PD 30W Type-C Input/Output port. It can be charged with a 5-30W wall charger. Please check the full charging time in the following excel. -
Page 9: Faq
How do I turn off ZETA 2000? Simply press the power button to turn it off. Note that ZETA 2000 is able to detect its own battery status and can take steps to save power, such as going into sleep mode when the battery is very low. -
Page 10: Toxic And Hazardous Substances
Indicate all homogeneous materials’ hazardous substances content are below the MCV limit specified in the Standard 2002/95/EC(RoHs). 8. TROUBLESHOOTING If the following operations can not solve your problems, please stop using the device and contact the manufacture with E-mail: automotive@spanarci.net - 08 -... -
Page 11: Safety Instructions
Solution No response when pressing • The voltage of the ZETA 2000 is really low and triggers the low power protection to shut down the device. the power button • Plug the wall charger into the ZETA 2000 to recharge it. - Page 12 The product only works with 12V battery. Use the clamps that come with the device. When the clamp or wire is damaged, stop using it immediately to avoid injuries caused by fire or electric shock. Do not connect the positive and negative clamps to each other. Before starting, make sure there is no rust or foreign matter on the interface.
-
Page 13: Warning
At the end of the product life, lithium battery should be disposed in accordance with local regulations. If your car battery is in low voltage(below 8V), press the power button and the LED button of the jump starter simultaneously for 3 seconds to force start your car. 10. - Page 14 Shenzhen Xinjiale Electronic Commerce Co., Ltd. MADE IN CHINA E-mail: automotive@spanarci.net ADD: 98 Pingxin North Road, Pinghu Street, Longgang District, Shenzhen...
