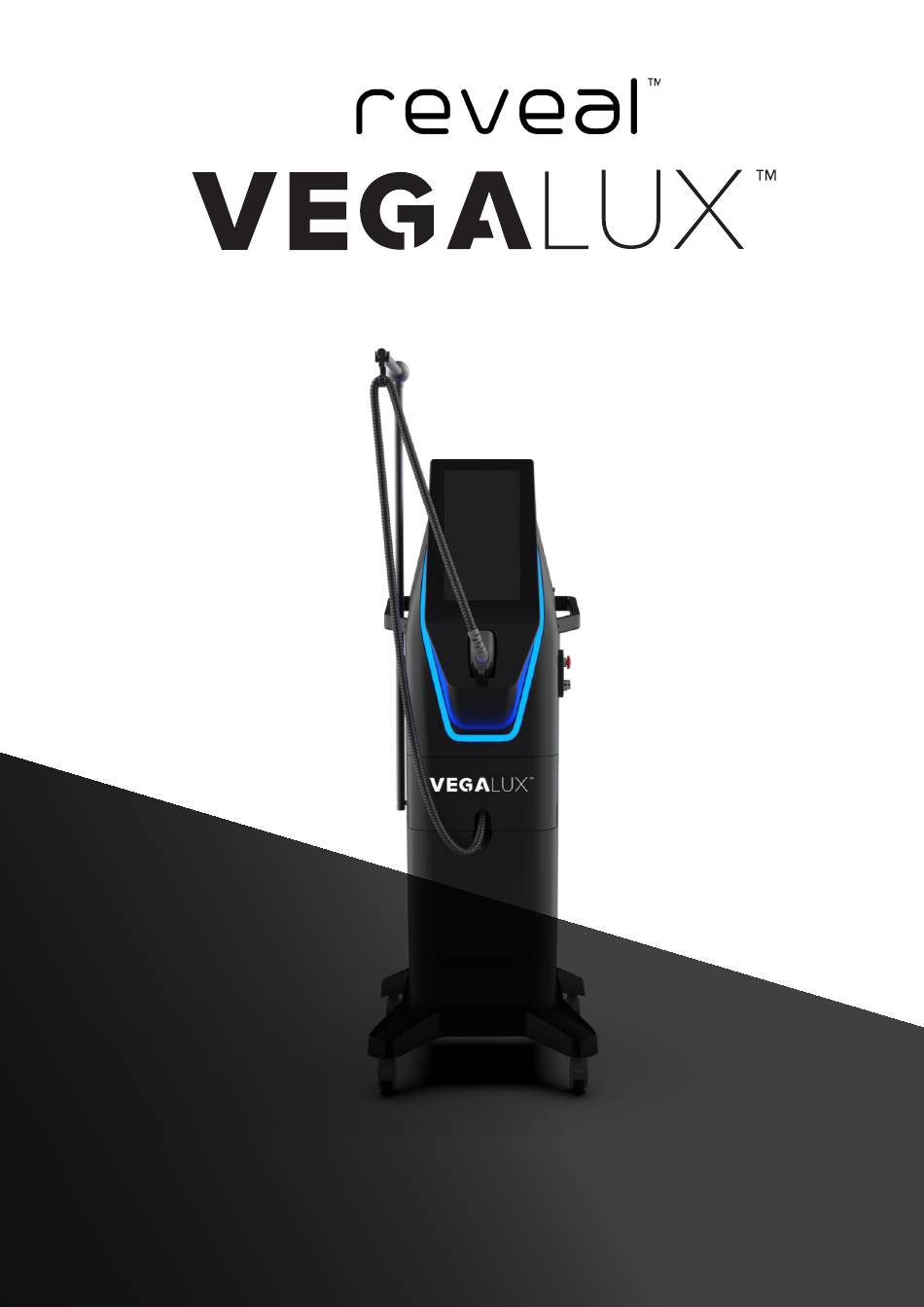

- Page 1 HAIR REMOVAL - PERFECTED™ USER MANUAL...
- Page 2 Reveal Lasers - User Manual...
- Page 3 Reveal Lasers Ltd info@reveallasers.com reveallasers.com Copyright © Reveal Ltd. All rights reserved. Contents of this publication may not be reproduced in any form without the written permission of Reveal Ltd. Reveal Lasers - User Manual...
- Page 4 CHAPTER 1 System Overview Section Title Page Use of this Manual Maintenance Modification of the System Abbreviations and Acronyms Reveal Lasers - User Manual...
- Page 5 System Overview 1.1 Use of this Manual The VEGA LUX™ system is designed to meet international safety and performance standards. Personnel operating the system must have a thorough understanding of the proper operation of the system. This manual has been prepared to aid medical and technical personnel to understand and operate the system.
- Page 6 1.2 Maintenance The VEGA LUX™ system is a precision, technical medical device that requires periodic routine maintenance service, which much be performed by REVEAL™ authorized technical personnel. Failure to obtain service voids all warranties expressed and implied. Please contact REVEAL™...
- Page 7 Near Infrared Centimeter(s) Nanometers Continuous Wave Optical Density Hair Removal Pulse Width Modulation Hertz Second(s) International Electro Technical Commission Skin Protection Factor Joule(s) Thermoelectric Cooling Joule(s) per square Centimeter Volt(s) J/cm Kilogram(s) Volt(s) AC Pound(s) Watt(s) Reveal Lasers - User Manual...
-
Page 8: Table Of Contents
Grounding the System System Safety Features 2.6.1 Emergency Shut-Off Knob 2.6.2 Main Circuit Breaker 2.6.3 Light/Laser Emission Indicators 2.6.4 Double-Tiered Security for Laser Emission 2.6.5 Foot-switch 2.6.6 Tissue Cooling System 2.6.7 Module Design 2.6.8 Compliance Reveal Lasers - User Manual... -
Page 9: Introduction
CHAPTER 2 Safety 2.1 Introduction This chapter describes general safety issues regarding the use of the VEGA LUX™ system, with special emphasis on optical and electrical safety. With proper operation and maintenance, trained and qualified medical practitioners can use the VEGA LUX™ system safely. The supervising physician and all other personnel operating or maintaining the VEGA LUX™... -
Page 10: Light And Laser Safety
Light and Laser Safety 2.2.2 The following Light & Laser safety features are incorporated in the VEGA LUX™ system. Closed light-guide geometry is used to transmit Light/Laser energy to the treatment site. Light/ Laser energy is emitted only through the front plane of the light-guide. -
Page 11: General Precautions And Cautions
Only REVEAL™a uthorized personnel may service the VEGA LUX™s ystem. This includes making internal adjustments to the power supply, cooling system, optics, modules, etc. Verify that the VEGA LUX™ is wired for the appropriate electrical voltage of your country (230V AC). -
Page 12: The Treatment Room
The treatment room must be clearly labelled with a sign indicating that high intensity light/laser energy is in use. The treatment room sign that is supplied with the VEGA LUX™ system. The treatment room should not include any light reflecting objects such as a mirror. -
Page 13: Safety Eyewear
Do not use any flammable substances such as alcohol or acetone in the preparation of the skin for treatment. If necessary, use soap and water to clean before treatment. If alcohol is used to clean and disinfect any part of the VEGA LUX™ system, allow it to dry thoroughly before operating the system. -
Page 14: Grounding The System
To avoid the risk of electric shock, this equipment must only be connected to a supply main with protective earth. 2.6 System Safety Features The VEGA LUX™ system is equipped with a number of safety features. All treatment room personnel should be familiar with the location and operation of these safety features. 2.6.1 Emergency Shut-Off Knob This red knob is used for emergency shutdown. -
Page 15: Double-Tiered Security For Laser Emission
4°C (39°F) during system operation. 2.6.7 Module Design Several aspects of the module design contribute to the safety of the VEGA LUX™ system: Since the Light/Laser energy is generated in the module itself and not in the console (as in conventional lasers), there is no need for an articulated arm or other beam delivery system with inherent beam quality and alignment concerns. - Page 16 Facility Requirements 3.3.1 Space and Positioning 3.3.2 Electrical Requirements 3.3.3 Environmental Requirements System Installation 3.4.1 Environmental Conditions during Storage and Transportation 3.4.2 Foot-switch Connection 3.4.3 Filling the Coolant Reservoir 3.4.4 Module Connection 3.4.5 Moving the System Reveal Lasers - User Manual...
-
Page 17: Introduction
Installation 3.1 Introduction The VEGA LUX™ system is designed for installation in an office or a clinic and requires minimal site preparation. When the VEGA LUX™ system is purchased, complete on-site installation, including initial system testing and calibration, is included. -
Page 18: Facility Requirements
Good grounding is essential for safe operation. Caution: The system should be connected to a separate power line with separate circuit breakers. REVEAL™ cannot guarantee adequate performance unless the system is connected to a dedicated circuit. Caution: In order to guarantee safe disconnection of the system in any hazardous situation, system shall be allocated in such a way that appliance coupler always accessible. -
Page 19: Environmental Requirements
3.4 System Installation 3.4.1 Environmental Conditions during Storage and Transportation Transportation of the VEGA LUX™ system should be under normal environmental conditions within the following range: Ambient temperature: 0°C to 50°C Relative air humidity: 10% to 60% Atmospheric pressure: 90 kPa to 110 kPa Note: If the system is to be stored in a cold area where the temperature may fall below 0°C (32°F),... -
Page 20: Foot-Switch Connection
The VEGA LUX™ cooling system's water reservoir must be filled (or refilled) with de-ionized water in the following instances: Upon installation of a new system... -
Page 21: Module Connection
It is designed to enable easy replacement of the module when required. The module connection port is located on the middle of the front panel. Lift the cover in front of the machine for the access to connect and disconnect the handpiece. Reveal Lasers - User Manual... -
Page 22: Moving The System
Release the wheel breaks. Slowly push or pull the system using the handle. Caution: Never use the module or the umbilical cable to move the system. Do not use the module mast for moving or lifting the system. Reveal Lasers - User Manual... - Page 23 Reveal Lasers - User Manual...
- Page 24 Introduction General System Description and Intended Use System Components and Controls 4.3.1 Main Console 4.3.2 System Controls 4.3.3 System Controller 4.3.4 Cooling System 4.3.5 Isolation Transformer revealVEGA ™ Modules 4.4.1 Diode Laser Modules System Specifications Reveal Lasers - User Manual...
-
Page 25: Introduction
The module's tip is cooled by the VEGA LUX™ cooling system. Output parameters and other system features are controlled from the touch-screen control panel on the console, which provides an interface to the system's micro-controller through &... -
Page 26: Main Console
The VEGA LUX™ system controls offer the following features: Control Panel - this touch-controlled screen provides information on the status and settings of the VEGA LUX™ system. The various screens of the display are described in detail Emergency Shut-off Knob - this is a red, mushroom-like knob designed for emergency shutdown of the system. -
Page 27: Cooling System
4.3.5 Isolation Transformer The isolation transformer reduces the leakage current in the system to the ground for safety. It is designed as a medical grade unit. Reveal Lasers - User Manual... -
Page 28: Revealvega ™ Modules
4.4 VEGA LUX™ Modules The following modules are available for use with the VEGA LUX™ system: Diode Laser Modules: 2D (755 nm + 810 nm) combined in 2 cm2 spot size module. The 2D, 755nm, 810nm Diode Laser Handpiece are intended for the removal of unwanted hair and to effect stable, long- term hair reduction. -
Page 29: System Specifications
Language English Machine Dimensions 58 x 64 x 159 cm Packing Size 85 x 78 x 178 cm Net Weight Gross Weight 158kg Packaging Aluminum alloy case, thick sponge cushion Voltage AC 220-230V / 50N60Hz Reveal Lasers - User Manual... - Page 30 5.2.2 Connected Module Indicator 5.2.3 Emergency Shut-off Knob 5.2.4 Light/Laser Emission Indicators 5.2.5 Key-switch Service Panel 5.3.1 Main Circuit Breaker 5.3.2 Main Power Switch 5.3.3 Electrical Current Indicator 5.3.4 Diode Laser Module's Trigger 5.3.5 Foot-switch Reveal Lasers - User Manual...
- Page 31 Controls and Indicators 5.1 Introduction This chapter details the controls, indicators and connection ports of the VEGA LUX™ system. 5.2 Control Panel The control panel incorporates all the controls necessary to operate the VEGA LUX™ system, including a back-lit LCD graphic display with built-in touch- screen technology, key-switch, emergency shut-off knob and light/laser emission indicators (audio and visible).
- Page 32 A correct operation sequence starts with switching on the main switch prior to turning on the key-switch. 5.3.3 Electrical Current Indicator This green LED indicator illuminates when the power cable is connected to the wall outlet. Reveal Lasers - User Manual...
- Page 33 The foot-switch is an electric pedal that connects to the system through the foot-switch connection port on the service panel. Warning: If the system is in Ready mode, light/laser energy emission from the modules occurs when the footswitch or foot-switch and module's trigger are activated. Reveal Lasers - User Manual...
- Page 34 Section Title Page Introduction Control Panel LCD Touch-Screen Panel 6.3.1 Connected Module Indicator 6.3.2 Emergency Shut-off Knob Light/Laser Emission Indicators 6.4.1 Key-switch Service Panel 6.5.1 Main Circuit Breaker 6.5.2 Main Power Switch Electrical Current Indicator Reveal Lasers - User Manual...
- Page 35 A light/laser radiation danger sign, supplied with this system, should be placed at the entrance to the treatment room whenever the system is in use. Improper use or adjustment of this system may invalidate the VEGA LUX™ service warranty agreement. Please contact your authorized distributor before attempting to use the system in any manner other than those specified in this manual.
- Page 36 Lift up the circuit breaker on the rear panel to the upper position. 6.3.1 Module detection The VEGA LUX™ system is equipped with sensors that automatically detect the module connected to the system. Based on the module connected, the system will enable the display of the available operation modes.
- Page 37 The UV light turns ON for 30 seconds and the tip gets sterilized Rotate the key to start using the machine The VEGA LUX, by default, will be switched to Smooth Mode. Select the Gender "Male / Female" and the area to be treated. Toggle for the area to be treated in Front/Back/ Face.
- Page 38 Warning: The VEGA LUX™ system emits intense light/laser pulses through the module. Make sure that all personnel are protected against accidental exposure to these pulses, either directly from the module or indirectly from a reflecting surface. To protect against eye damage and discomfort, make sure that everyone present in the room is wearing recommended protective eyewear.
- Page 39 - arrow to adjust the Frequency from 0 to 100%. The RF can be disabled by clicking on the RED button and enabled by clicking the ON button. Temperature: Displays the temperature of the machine. Switch mode: Click on Switch mode at the bottom corner of the screen for the Reveal Lasers - User Manual...
- Page 40 Pulse duration: The pulse duration is to be adjusted between short, Medium and Long. Standby/Ready mode: This soft key toggles the VEGA Lux between standby and ready modes. Press the Ready button when you are ready to start the treatment. Once the treatment is done toggle the machine back to standby mode.
- Page 41 Disconnect the power cable from the mains outlet. Clean the module and other accessories Set the module in its cradle. Warning: To prevent unauthorized use of the system, do not leave the key in the key-switch unattended. Reveal Lasers - User Manual...
- Page 42 Why Treatments May Cause Negative Reactions Managing Patient Discomfort Post-Treatment Care - Advice Sheet Other Treatments and LHR Consultation Discussions What to Expect During and After Treatment 7.10 Possible Side Effects 7.11 Clinical Photography Consent Forms and Treatment Records 7.12 Reveal Lasers - User Manual...
-
Page 43: Safety Checks
& marked. Establish skin type and hair. 10. Use three different fluence levels starting with the lowest. 11. Choose the highest fluence that gives the best efficacy with no adverse side effects. Record reactions Reveal Lasers - User Manual... -
Page 44: Preparation Of Skin Before Treatment
• The patient will feel uncomfortable and feel slight pain. Comfortable treatment • Clients should never be treated on a greater than level 5 of a pain scale of 0-10, where 10 is the maximum pain. Reveal Lasers - User Manual... -
Page 45: Why Treatments May Cause Negative Reactions
Not lowering the fluence on target rich area. (melanin) Not test patching pre-treatment Too heavy an overlap Failure to monitor patient comfort Not recording parameters correctly 10. Not cleaning laser consumables, glass pieces, distant gauges, inserts etc. Reveal Lasers - User Manual... -
Page 46: Managing Patient Discomfort
Anytime from 10-21 days after the treatment, shedding of the treated hair may occur & this appears as new hair growth. This is NOT new hair growth. You can clean & remove the hair by washing or wiping the area with a wet cloth or loofah sponge. Reveal Lasers - User Manual... - Page 47 A medical history is taken at the consultation, but we rely on you to inform us of any changes to this. We need to know of any medication you are taking including those bought from a chemist or herbalist/homeopath (inter sessions as well). Reveal Lasers - User Manual...
-
Page 48: Other Treatments And Lhr
How often do you need to? How quickly does your hair grow back? Confirm Client's Medical history. Go through any underlying medical conditions Ask if the client is taking / applying any medications. Reveal Lasers - User Manual... -
Page 49: What To Expect During And After Treatment
PCOS. Results to expect: Differs for different hair and skin types and body areas being treated. 100% clearance cannot be guaranteed. Reveal Lasers - User Manual... -
Page 50: Possible Side Effects
Which explains any possible side effects, and confirmation that the patient has been given an explanation of the procedure and expected outcome. A consent form is necessary for Insurance /Legal and Medical purposes Reveal Lasers - User Manual... - Page 51 Reveal Lasers - User Manual...
- Page 52 Reveal Lasers Ltd info@reveallasers.com reveallasers.com USER MANUAL...
