Kettler P-04 Assembly Instructions

Assembly Instructions

Parts List

A
Base B
C
x1
E
Washer
x1
H
These
can be
found in
the tube
stem (F)
G
F
E
D
A

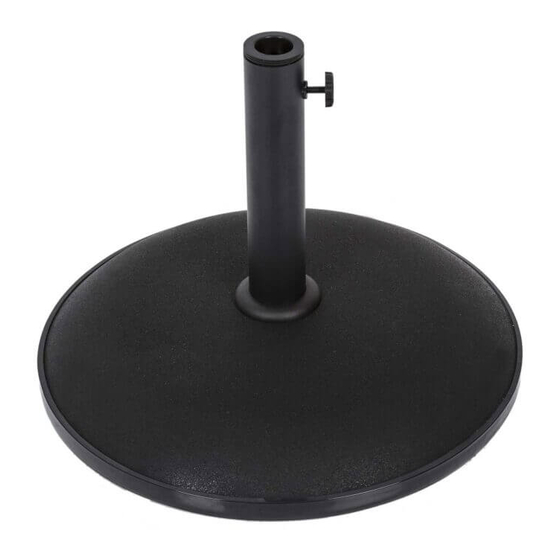

P-04 Parasol Base
F
Tube Stem
x1
D
Flat Washer
x1

Helpful advice before you begin:

1. We suggest you spend a short time reading through this leaflet
and then follow the simple step by step instructions.
2. Do not discard any of the packaging until you have checked that
you have all the parts and the pack of fittings.
3. Assemble this product on a soft surface.
4. Keep fittings out of children's reach.
Align one tab
on the collar 5. Do not use any other tools other than those recommended to
with the
build this product.
screw knob
in the base
6. Please do not use substitute parts. Use only additional or
stem.
replacement parts supplied by Kettler.
7. In the unlikely event that this product has missing or damaged
parts, please visit our website www.kettler.co.uk
15 - 20 mm
G
Locking Knob
x1
Do not discard any of the
packaging until you have
checked that you have all the
parts and the pack of fixings.
H
Adapter Collars
These can be found
in the tube stem (B)
x3
Sept 2021
