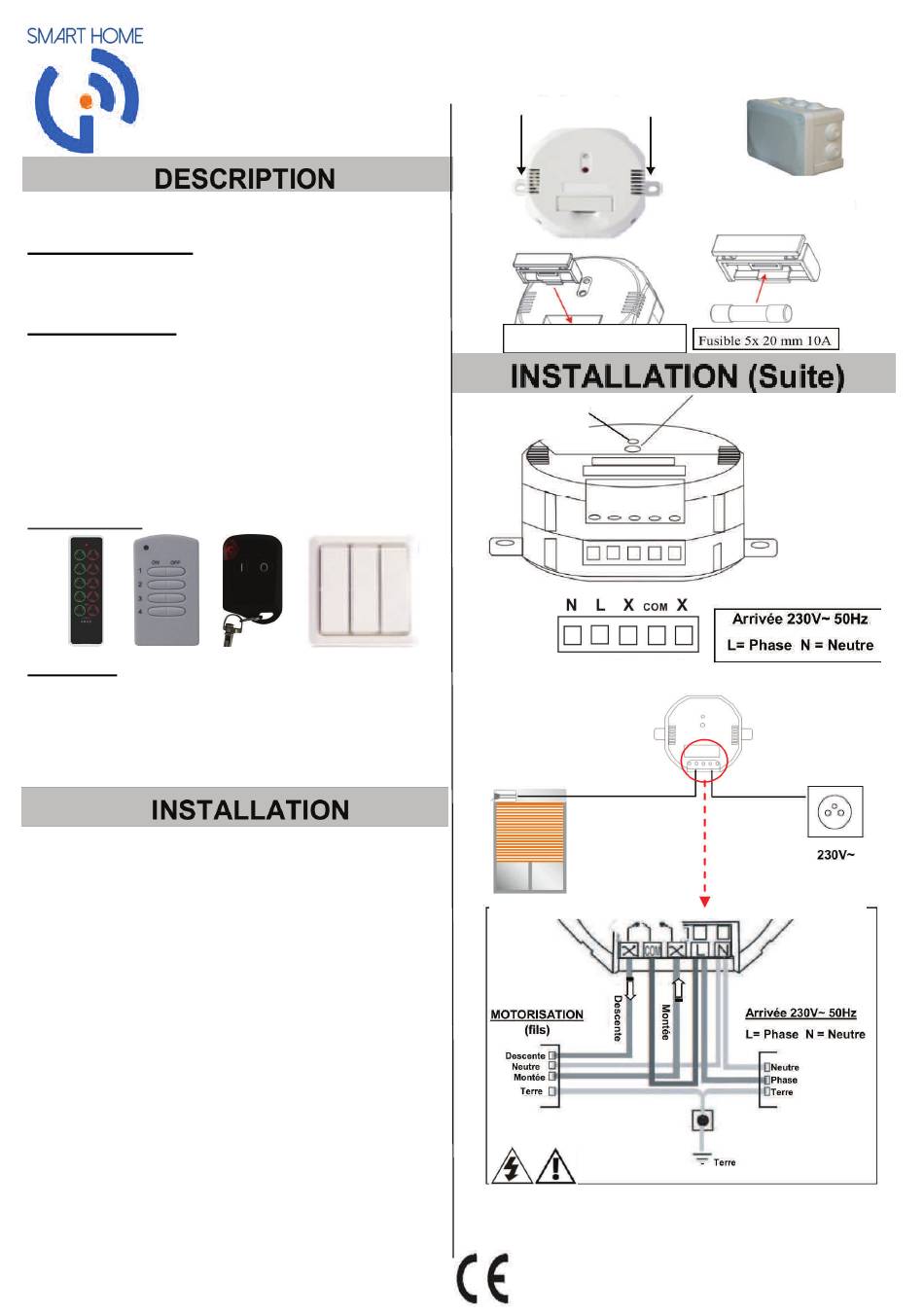

smart home MMV-100 User Instruction

Wireless Remote Control Switch Module
Product Content:
1 Remote Control Switch Module for Motorized System MMV-100
Technical Data:
Indoor use. Coding button
Power Supply 100-240V ~ 50/60 Hz
Supported power: 1000W max.
Standby Power / Function: 0.9W
Memorization of 4 different commands (remote control, switch... )
Remote Controls:
Features:
Range of 100m in free field (no obstacles)
Range of 50m (with barriers)
Transmission frequency: 433.92 MHz
The RF micro module can control a shutter motor or awning wind-
ing up to 1000W of power, this module is hidden or placed in a
wall or surface mounting box.
It is inadvisable to use this RF module in a metallic form of a bus
at the location where it will be placed, the reception of radio
waves will be greatly reduced.
In the case of an installation with several RF modules, you must
keep at least 1 meter distance between each module so as not to
disturb the radio frequency signals.
The module can be controlled wirelessly with a control system
from the SMART HOME range (Local or Remote).
www.i-chime.com
Visit our website:
It can also be installed outside in a waterproof junction box ( type
Plexo®) according to the applicable installation standards for
electrical equipment outdoors.
USER INSTRUCTION
5A
Wall fixtures
Fuse holder to extract
Coding Button and
On / Off (Test)
MODULE INSTALLATION WITH A MOTORIZATION 230V ~ (AC)
Any electrical connection must be done with 230V Any electrical connection must be done with 230V
Wire color in general (check manufacturer data)
L = Phase: Red or Brown
N = Neutral: Blue
Descent: Black or Brown (reverse required)
Ascent: Black or Brown (reverse required)
Ref: MMV-100
Waterproof box type
Plexo® (not included)
LED
Earth: Yellow / Green
