Telonics CR-2a Reference Manual

Programmable collar release
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

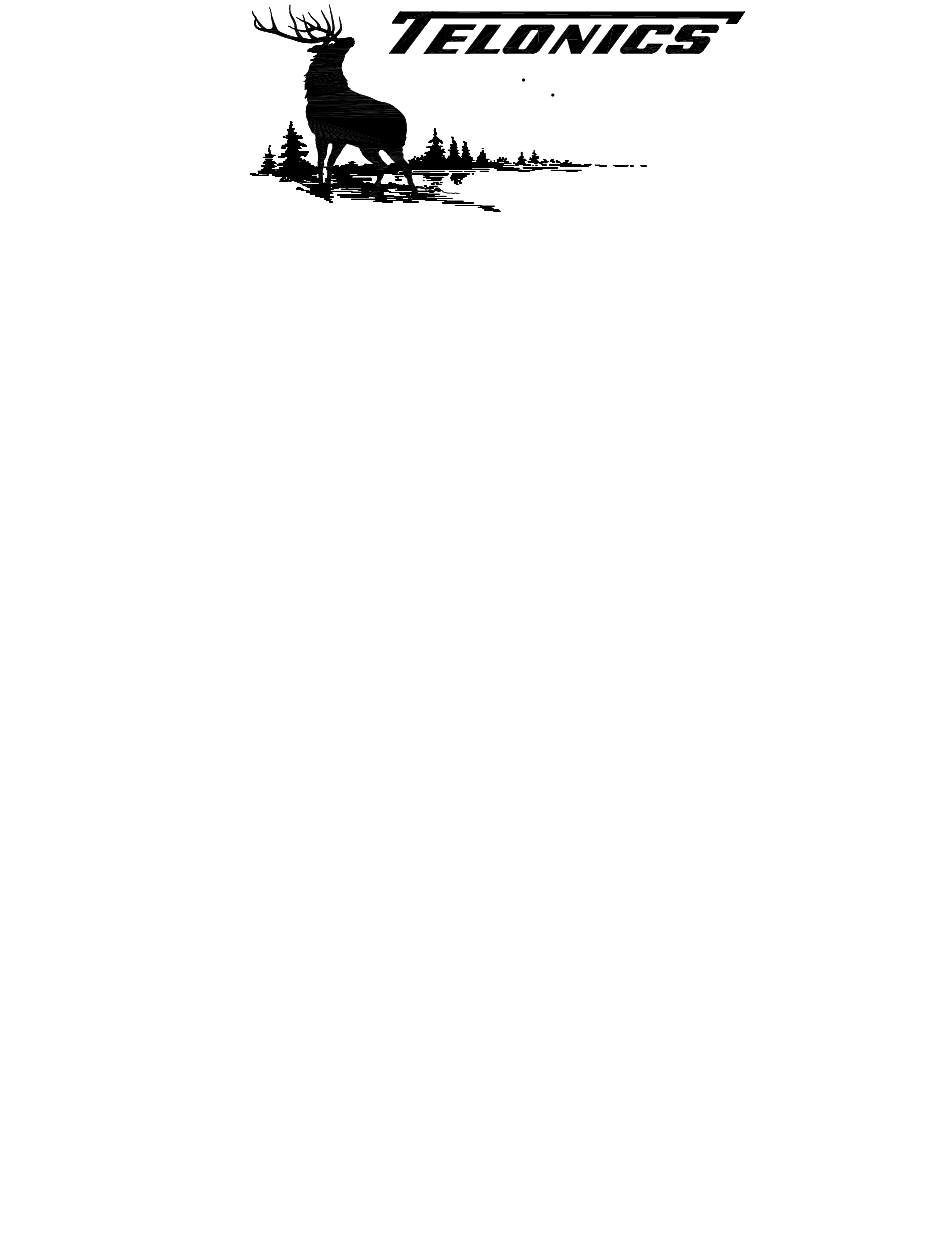

TELEMETRY-ELECTRONICS CONSULTANTS
932 E. IMPALA AVENUE MESA, ARIZONA 85204-6699 U.S.A.
TEL (480) 892-4444 FAX (480) 892-9139
E-MAIL info@telonics.com
www.telonics.com
TELONICS CR-2a
PROGRAMMABLE COLLAR RELEASE
REFERENCE MANUAL
PB006318 Rev M 2019.11.07
Copyright Notice
Copyright © 2011 Telonics, Inc.
All Rights Reserved.
No part of this publication may be copied without the express written permission of Telonics, Inc.,
932 E. Impala Ave., Mesa, AZ 85204.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR-2a and is the answer not in the manual?

Questions and answers

Summary of Contents for Telonics CR-2a

  • Page 1 PROGRAMMABLE COLLAR RELEASE REFERENCE MANUAL PB006318 Rev M 2019.11.07 Copyright Notice Copyright © 2011 Telonics, Inc. All Rights Reserved. No part of this publication may be copied without the express written permission of Telonics, Inc., 932 E. Impala Ave., Mesa, AZ 85204.

  • Page 2: Table Of Contents

    Collar Length Adjustment Precautions ..............11     CR-2A ASSOCIATED PRODUCTS ................12     Accessory items available for use with the CR-2a ............ 13     Hardware/installation kits for user attachment of the CR-2a ........13     SERVICE COMMITMENT ..................... 14  ...

  • Page 3: Introduction

    The CR-2a is intended for use on collars with a width of 2 inches or greater, has a weight of 50g, and has an operating temperature range of -40° C to +60° C.

  • Page 4: Cr-2A Alternatives

    CR-2a. To easily distinguish between CR-5B and CR-2a, the devices are manufactured with different colored housings (CR-5B is brown, CR-2a is black). As with the CR-7B, the user-commanded remote release capability is available only when paired with Telonics TGW- 4x77-4 and TGW-4x78-4 GPS-Iridium systems.

  • Page 5: Starting User Software (Bcp-2)

    BCP-2 is described in more detail and is available for download at the Telonics web site (http://www.telonics.com/software/bcp-2.php). There are no fees associated with the download or installation of the BCP-2 application. BCP-2 versions prior to V4.03 require that a license be purchased in order to both Read and Program the CR-2a.

  • Page 6: Connecting The Cr-2A To Your Computer

    Communications with the CR-2a are accomplished using a TSC-9A interface cable (to connect to your computer) and a CN006799-001 adapter (to connect the TSC-9A to the CR-2a). For your convenience, the TSC-9A may be used with or without the included USB extension cable.
  • Page 7 Figure 4, USB extension cable, TSC-9A interface cable, and CN6799-001 adapter If the CR-2a is currently installed on a collar, remove the collar hardware by first removing the two lock nuts using a nut driver or suitable wrench (Figure 5).
  • Page 8 Save the programming port plug and shunt for reinstallation after programming is complete. Figure 9 Connect the TSC-9A interface cable to a USB port on your computer and to the CR-2a using adapter CN006977-001 (Figure 10). PB006318 Rev M Discontinued model –...

  • Page 9: Reading Cr-2A Parameters

    In order for the release mechanism to actuate, the Release Safety must be OFF. 3. In the Release Time group, select the date and time at which you want the CR-2a to release. The release time must be specified using the 24-hour UTC (Coordinated Universal Time) format.

  • Page 10: Placing The Cr-2A In Safe (Storage) Mode

    When reading/programming is complete, disconnect the adapter and cable. Ensure that the bottom of the CR-2a and the programming port are free of dust and debris and then re-install the conductive rubber shunt, programming port plug, and protective cover. The following protective cover choices are available and are in descending order of preference: •...

  • Page 11: Collar Length Adjustment Precautions

    (Figure 12). Tighten screws until plate compresses into collar material. Refer to assembly diagram (Figure 13) for correct installation. Note: Do not trap any antennas in or under the CR-2a release mechanism or the release will fail to function properly.

  • Page 12: Cr-2A Associated Products

    Figure 15 Figure 14 IMPORTANT: Be sure that you are using proper hardware based on collar thickness (see Hardware/Installation Kits in section 5.2). Using a torque wrench, tighten the two self-locking screws (Figure 12 and Figure 13) to 26 inch-pounds. Failure to use proper length self-locking screws or inadequate torque while tightening may allow the screws to back out while the collar is deployed.

  • Page 13: Accessory Items Available For Use With The Cr-2A

    Part Number Description TSC-9A Interface cable: requires a USB port on the PC, compatible with CR-2a, CR-5, CR-7, Gen 4 GPS/Iridium systems, and most other systems supported by the Telonics Product Programmer (TPP) software. Includes a 3ft USB extension cable.

  • Page 14: Service Commitment

    The internal electronics (excluding the battery) are warranted to be free from defects in material and workmanship and to perform to the operational specifications over the specified operating temperature range as published by Telonics for up to a maximum of one (1) year from the date of initial shipment of the unit by Telonics.

  • Page 15: Exercising The Warranty

    Telonics-authorized distributor. 7.1 Exercising the Warranty If a defect occurs, return the CR-2a to Telonics within the applicable time frame noted above at the following address: TELONICS, 932 E. IMPALA AVENUE, MESA AZ USA 85204-6699. Telonics does not assume responsibility for loss or damage to equipment during shipment.
