First Time Start-Up for AVW200 w/Card Reader

Step 1: Visually Inspect Installation & Wiring

Verify that all equipment is properly installed and mounting hardware is securely

fastened. Check all wiring to make sure none of the wiring will cause mechanical

interference and ensure that all connections are mated properly and secure.

CARD READER

CONNECTION

Before the Card Reader can be initialized, it is necessary to first initialize the ProStar

AVW200 Monitor and verify that it is configured correctly. Disconnect the 8-wire, main

cable connection from header P2 on the card reader

Within 20 seconds of A/C power being restored, the TX light on the ProStar

Monitor should begin to flash at a rate of once per second and the LED 1 will be lit

indicating that the monitor has no configuration. The power indicator on the AVW

Cellular Modem should also be lit.

Step 4: Initiate Communications Between Pro-Star® AVW200 and IVS

Press and hold the red Service Button on the Pro-Star® AVW200 Monitor (not on the

card reader) until LED 3 on the Monitor turns on, and then release the button. This will

cause the Monitor to call IVS and download its configuration data. LED 3 on the Monitor

will start blinking when communication with IVS starts, and the LED will turn off when

the communication is complete. During the communication LED 1 will turn off indicating

that the monitor has successfully received the configuration data.

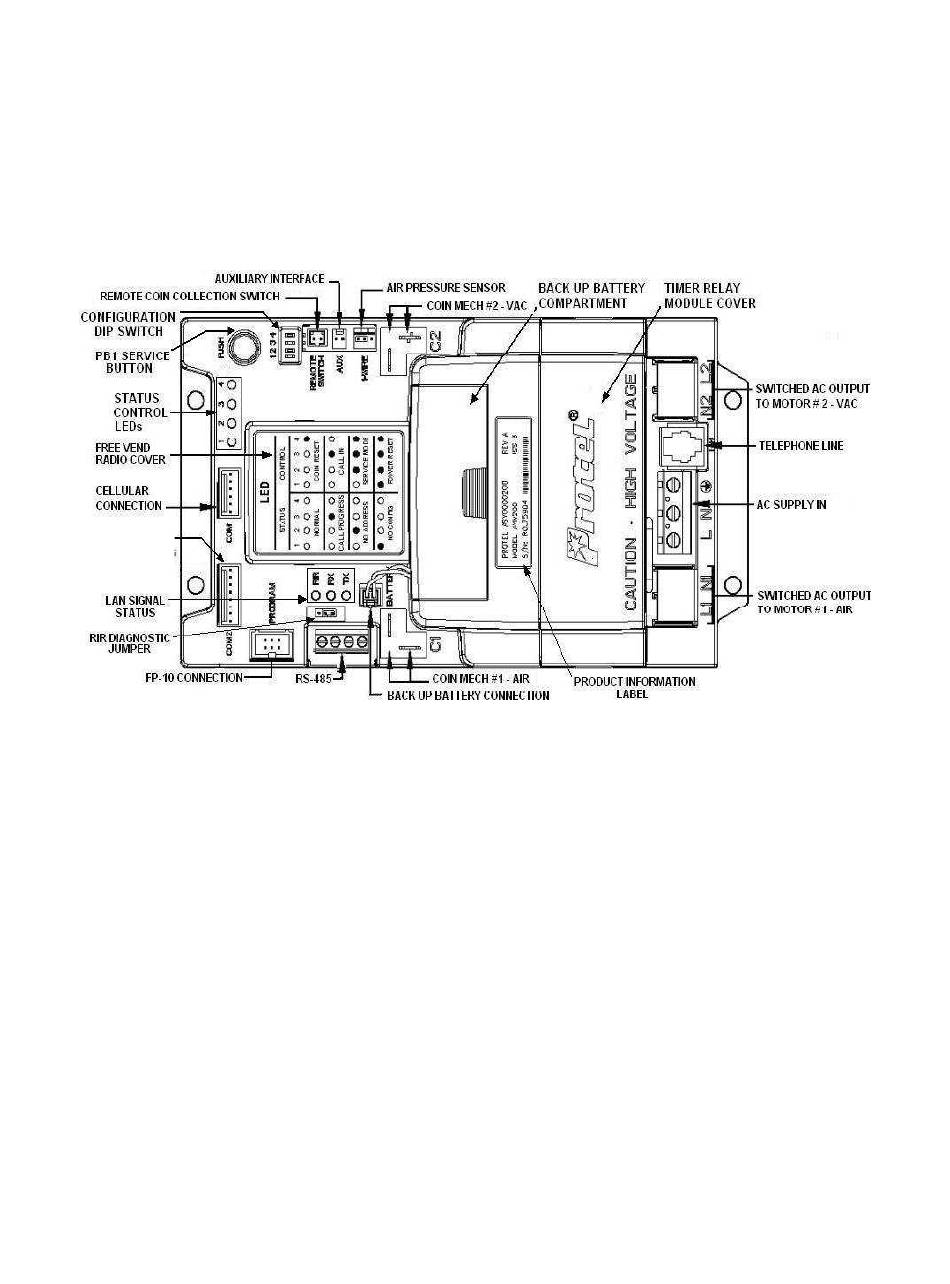

AVW200 Connection Diagram

AVW200

Table of Contents

Need help?

Do you have a question about the Pro-Star AVW200 and is the answer not in the manual?

Page 1 First Time Start-Up for AVW200 w/Card Reader Step 1: Visually Inspect Installation & Wiring Verify that all equipment is properly installed and mounting hardware is securely fastened. Check all wiring to make sure none of the wiring will cause mechanical interference and ensure that all connections are mated properly and secure.
Page 2 Step 5: Verify the AVW200 is Properly Configured Initiate test vends using coins. Verify that the appropriate motor (air compressor and/or vacuum) turns on when the specified coin deposit is made. Perform all other non-card tests as directed to ensure the proper operation of the equipment. Headers P4, P5, P6, and P7 for Front Panel LEDs...
Page 3 AVW200 Monitor to call the Protel IVS server to report the settlement results. To call the Protel IVS server, press and hold the red Service Button on the Monitor (not on the card reader) until LED 3 on the Monitor turns on, and then release the button.
