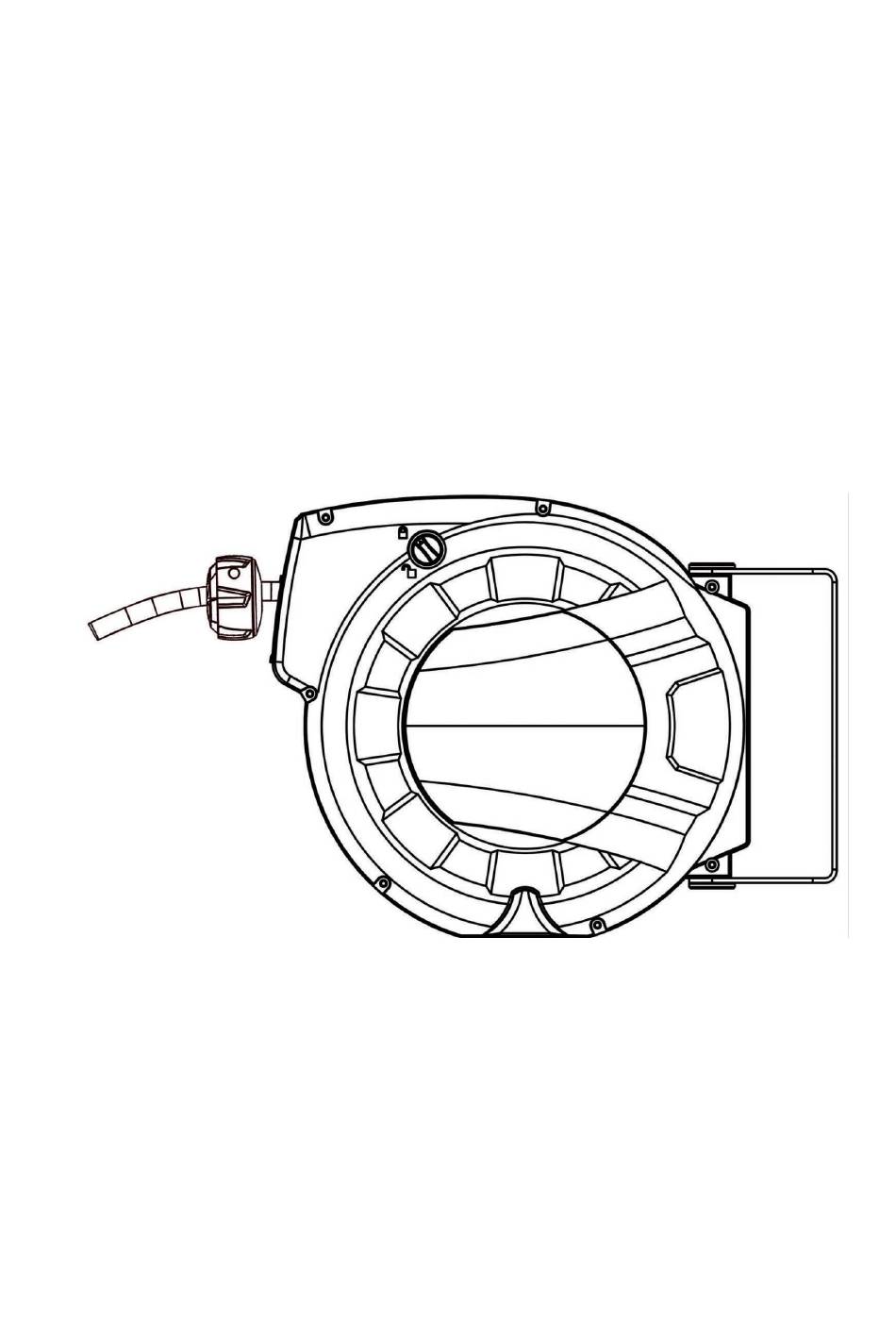

- Page 1 Auto Cable Reel Instruction Manual Please read these operating instructions carefully and note the information given. Use these operating instructions to familiarize yourself with the product, the proper use and the safety instructions.
- Page 2 Correct use: The Hose Reel is provided with auto rewind system and intended for use in the private home and workshop or repair shop etc. Parts list: Description Quantity Picture Hose reel Metal bracket 6*10mm Screw 6*50mm bolts Installation: The reel could be installed horizontally, vertically on the cement pillar, cement wall or steel structure.
- Page 3 4. Fix the brac ket by four 6*50mm screws accordi ngly, 5. Slip the reel to the mounting bra cket ,the n fas ten it by 1 *6*10 mm screw. See Fig.3 Note: 1 . T he reel co uld be insta lled to a wall / post o r ce iling . 2.
