MRC MSF 11-3 Instruction Manual

High temperature laboratory resistive electric furnaces
Hide thumbs
Table of Contents

Advertisement

Quick Links

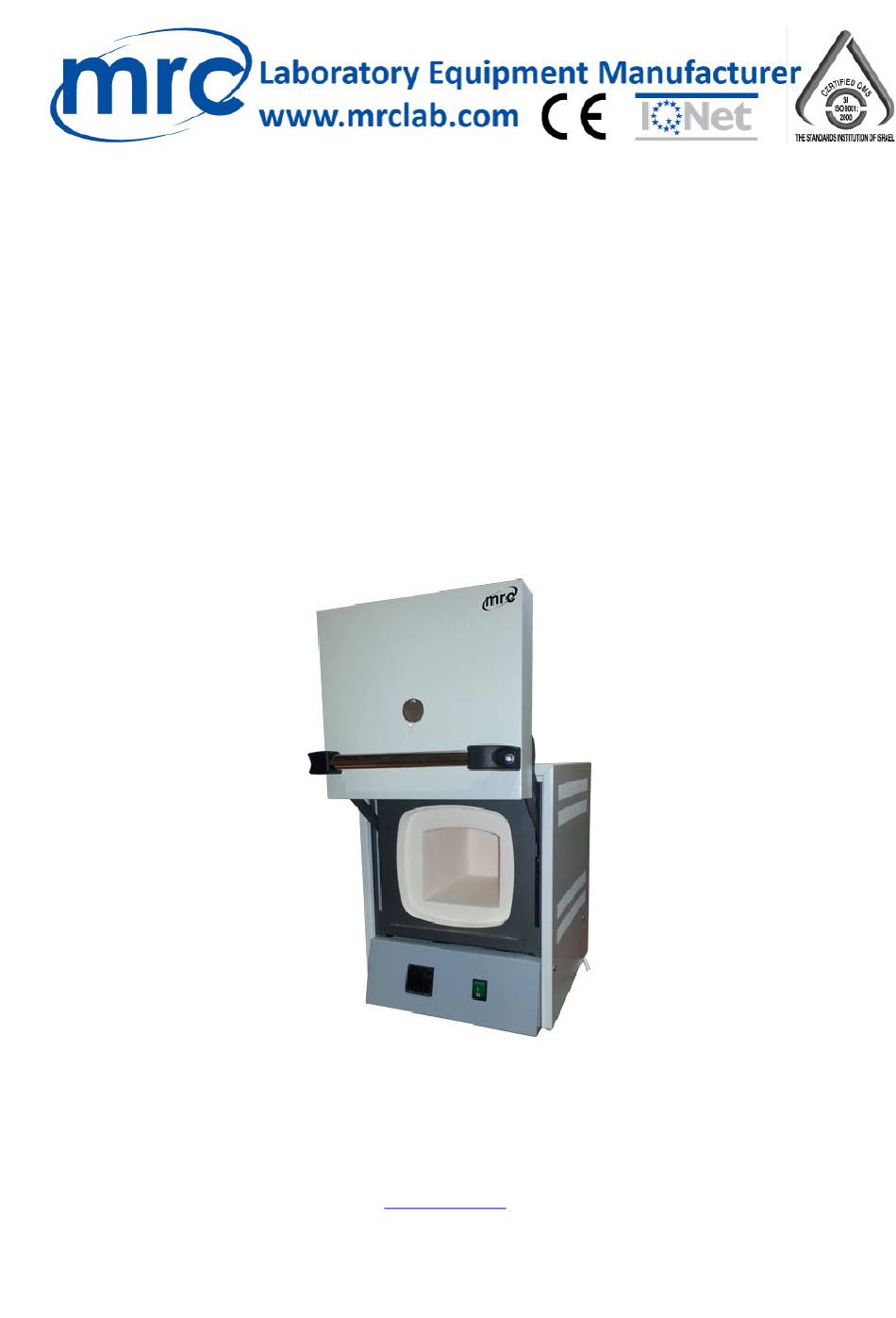

HIGH TEMPERATURE LABORATORY RESISTIVE ELECTRIC
The product conforms to the requirements of the European Union Low Voltage Directive
2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EC, and Machinery Safety
3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529
FURNACES
MSF 11-3
MSF 11-8
MSF 11-13
MSF 11-22
MSF 12-4
MSF 13-6.7
INSTRUCTION MANUAL
Directive 2006/42/EC.
mrc@mrclab.com
MRC. 5.23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSF 11-3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MRC MSF 11-3

  • Page 1 HIGH TEMPERATURE LABORATORY RESISTIVE ELECTRIC FURNACES MSF 11-3 MSF 11-8 MSF 11-13 MSF 11-22 MSF 12-4 MSF 13-6.7 INSTRUCTION MANUAL The product conforms to the requirements of the European Union Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EC, and Machinery Safety Directive 2006/42/EC.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. PURPOSE 2. SYMBOLS AND MARKINGS 3. SAFETY REGULATIONS 4. REQUIREMENTS FOR SAFE USAGE 5. COMPOSITION AND PRINCIPLE OF OPERATION 6. UNPACKING, CHECKING EQUIPMENT, DELIVERY 7. ASSEMBLY 8. PREPARATION FOR USE 9. OPERATION 10. MAINTENANCE 11. STORAGE 12.

  • Page 3: Purpose

    1. PURPOSE The MRC XX/XXXX electrical resistive laboratory Furnace (further called "Furnace“) is designed for heating or drying materials and stocks in the ambient air temperatures from T + 10 C in static conditions (T – temperature of the room where Furnace is being to 1100 ÷...

  • Page 4: Safety Regulations

    A room in which several Furnaces are in operation must have a dedicated means of ventilation. In the event of obvious malfunctions, the Furnace must be immediately turned off. Maintenance can be performed by MRC Therm service operators, an authorized specialist or a user who .strictly follows MRC Therm written maintenance instructions In the event the Furnace ceases normal operations, disconnect it from the power supply (the mains) and take measures to resolve the problem.

  • Page 5: Requirements For Safe Usage

    4. REQUIREMENTS FOR SAFE USAGE The electric Furnace should be placed in a closed, ventilated room that meets the following requirements: - the electric Furnace should be placed on a base that is horizontal (an allowed unevenness for a 1m base is ±...

  • Page 6: Unpacking, Checking Equipment, Delivery

    ADDITIONAL ACCESSORIES MAY BE INSTALLED IN THE FURNACE: 1. Process observation window; 2. Protection from overheating, which prevents the Furnace from exceeding the maximum temperature. If the maximum temperature is exceeded, the safety device turns the heating off automatically. If this happens, allow the Furnace to cool down by 50-100˚C below overheating safety device activation temperature.

  • Page 7: Assembly

    Picture 5 Picture 6 Picture 7 Sliding or tilting of the unit. Damage to the unit. Risk of injury by lifting heavy loads. Do not lifti or transport the unit using the door handle, the door or the lower housing. Forbidden to raise or to carry one person, if the stove weighs more than 30 kg.

  • Page 8: Preparation For Use

    Prepare the place where the Furnace will be used. -The supporting surface, where the Furnace will be placed on, must be smooth and non-combustible. -To prevent damage to the floor covering or the risk of fire if a hot object falls during removal from the chamber, the floor covering in the working area of the Furnace must be non-combustible.

  • Page 9: Maintenance

    A, B, C – dimensions of the chamber; a, b, c – spaces between the walls and the load; a= A x 0,1 b= B x 0,1 c= C x 0,1 Working volume (space) V = (A-2a) x (B-2b) x (C-2c) Close the electric Furnace’s door.

  • Page 10: Storage

    24 months beyond the Furnace’s manufacture date. Manufacture defects t hat appear during the warranty period shall be repaired at the :manufacturer’s expense. The manufacturer’s address Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529 ,3 mrc@mrclab.com TROUBLESHOOTING Possible Cause Solution Problem The Furnace doesn’t...

  • Page 11: Assessment Technique Of The Parameters

    *If after switching on the protective device it triggers again, the Furnace must not be operated. In that case the manufacturer or the manufacturer ‘s representative should be addressed for the repairs of the Furnace. In order to continually improve our products and their usage, supplements to this publication may be introduced without notice.
  • Page 12 46TTECHNICAL SPECIFICATIONS In the tables are provided the technical parameters of basic models Model Furnaces with muffle chambers 1100 MSF 11-3 MSF 11-8 MSF 11-8 VER2 MSF 11-8 VER3 1100 ±10 ±2 MSF 11-13 MSF 11-22 MSF 11-40 1300 MSF 13-6.7...
  • Page 13 Model Furnaces with ceramic chambers MSF 9-4 MSF 9-7.2 MSF 9-12 ±10 ±2 MSF 9-15 1100 MSF 11-4 MSF 11-7.2 ±10 ±2 MSF 11-12 1100 MSF 11-15 1200 MSF 12-4 MSF 12-7.2 ±10 ±2 1200 MSF 12-12 MSF 12-15 1300 MSF 13-4 MSF 13-7.2 ±10...

  • Page 14: Electrical Principle Scheme

    4747ELECTRICAL PRINCIPLE SCHEME MSF 11-3/11-8/11-13...
  • Page 15 MSF 11-3/11-8/11-13...
  • Page 16 MSF 11-3/11-8/11-13...
  • Page 17 MSF 11-3/11-8/11-13...
  • Page 18 MSF 11-3/11-8/11-13...
  • Page 19 MSF 11-3/11-8/11-13...
  • Page 20 /MSF 9-4/MSF 11-4/MSF 12-4/MSF 13-4/MSF 9-7.2/MSF 11-7.2...
  • Page 21 /MSF 9-4/MSF 11-4/MSF 12-4/MSF 13-4/MSF 9-7.2/MSF 11-7.2...
  • Page 22 MSF 12-7.2/MSF 13-7.2/MSF 9-12/MSF 11-12/MSF 12-12/MSF 13-12...
  • Page 23 MSF 12-7.2/MSF 13-7.2/MSF 9-12/MSF 11-12/MSF 12-12/MSF 13-12...
  • Page 24 MSF 12-7.2/MSF 13-7.2/MSF 9-12/MSF 11-12/MSF 12-12/MSF 13-12...
  • Page 25 MSF 9-15/MSF 11-15/MSF 12-15/MSF 13-15...
  • Page 26 MSF 9-15/MSF 11-15/MSF 12-15/MSF 13-15...
  • Page 27 MSF 9-15/MSF 11-15/MSF 12-15/MSF 13-15...
  • Page 28 MSF 13-6.7...
  • Page 29 MSF 13-6.7...
  • Page 30 MSF 13-6.7...
  • Page 31 MSF 13-6.7...
  • Page 32 MSF 13-10...
  • Page 33 MSF 13-10...
  • Page 34 MSF 13-10...
  • Page 35 MSF 13-10...
  • Page 36 MSF 11-22...
  • Page 37 MSF 11-22...
  • Page 38 MSF 11-22...
  • Page 39 MSF 11/39...
  • Page 40 MSF 11/39...
  • Page 41 MSF 11/39...
  • Page 42 MSF 11/39...
  • Page 43 MSF 11/39...

  • Page 44: Furnace With Muffle Chambers

    488FURNACE WITH MUFFLE CHAMBERS Example of base model MSF 11-8 BASIC MODEL Chamber made of thermal insulation fiber ᴏ Heating elements are embedded in vacuum formed fiber ( in models up to 1100 ᴏ Heating elements exposed on ceramic tubes( on models up to 1300 Microprocessor –...

  • Page 45: Closed Heating Elements

    CLOSED HEATING ELEMENTS MSF 11-3 MSF 11-8 MSF 11-13 MSF 11-8 MSF 11-8...

  • Page 46: Open Heating Elements

    OPEN HEATING ELEMENTS MSF 13-6.7 MSF 13-10 MSF 11-22 MSF 11-39...

  • Page 47: Furnace With Ceramic Chambers

    499FURNACE WITH CERAMIC CHAMBERS Example of base model MSF 12-7.2 BASIC MODEL Solid ceramic chamber ᴏ Exposed heating elements (in models up to 1100 and 1300 ᴏ Enclosed heating elements (in models up to 900 and 1200 Microprocessor – controlled thermoregulator Ceramic hearth plate (-es) High- quallity thermal insulation material...

  • Page 48: Closed Heating Elements

    CLOSED HEATING ELEMENTS MSF 9-4 MSF 11-4 MSF 9-7.2 MSF 12-7.2 MSF 9-12 MSF 12-12 MSF 9-15 MSF 12-15...

  • Page 49: Open Heating Elements

    OPEN HEATING ELEMENTS MSF 12-4 MSF 11-7.2 MSF 13-4 MSF 13-7.2 MSF 11-12 MSF 13-12 MSF 11-15 MSF 13-15...
  • Page 50 500PACKAGE CONTAINS Furnace; Bottom plate; Feet; Instruction manual; Instruction manual of temperature controller; PRODUCT MSF 11-3 MSF 11-8 MSF 11-8 ver2 MSF 11-8 ver3 MSF 11-13 MSF 11-22 MSF 11-39 MSF 13-6.7 MSF 13-6.7 ver2 MSF 13-10 MSF 9-4 MSF 11-4...

  • Page 51: The Packaging Parts Removal

    511THE PACKAGING PARTS REMOVAL PACKAGING ELEMENT MATERIAL DISPOSAL Straps to fix packing on pallet Plastic Plastic recycling Cardboard Wood recycling IPPC Shipping box standartas Metal Metal recycling Pallet Massive wood Wood recycling Cardboard Paper recycling Packing with metallic holders Metal Metal recycling Wood as a stabilizer Massive wood...

  • Page 52: Furnace Conformity Certification

    522FURNACE CONFORMITY CERTIFICATION The laboratory Furnace model was tested and meets the company standards . Furnace /Serial No Produced/ Product code Control department seal and signature...
