  • Page 1 DM User Manual 10.1'' Integrated Device Master...
  • Page 2 DM Document History Version Date Description of Change 10-May-23 Initial release © 2009-2023 Seeed Technology Co.,Ltd. All rights reserved.

  • Page 3: Table Of Contents

    DM Table of Contents C1. Introduction 1.1 Overview 1.2 Feature 1.3 Specification 1.4 Dimension C2. Hardware Overview 2.1 System Overview 2.1.1 Interface Overview 2.1.2 Mainboard Overview 2.1.3 Power Supply 2.1.4 Block Diagram 2.1.5 IIC Tree 2.2 Interface Description 2.2.1 Microphone 2.2.2 LED Indicator...
  • Page 4 DM C3. Assembly Guide 3.1 Disassembly Guide 3.2 Assemble WiFi/BLE Antenna 3.3 Assemble 4G Module and Antenna 3.4 Assemble LoRa Module and Antenna ® 3.5 Assemble PCIe Extension Module 3.6 Assemble SSD 3.7 Assemble Camera 3.8 Assemble PoE Module 3.9 RTC Battery Replacement...

  • Page 5: C1. Introduction

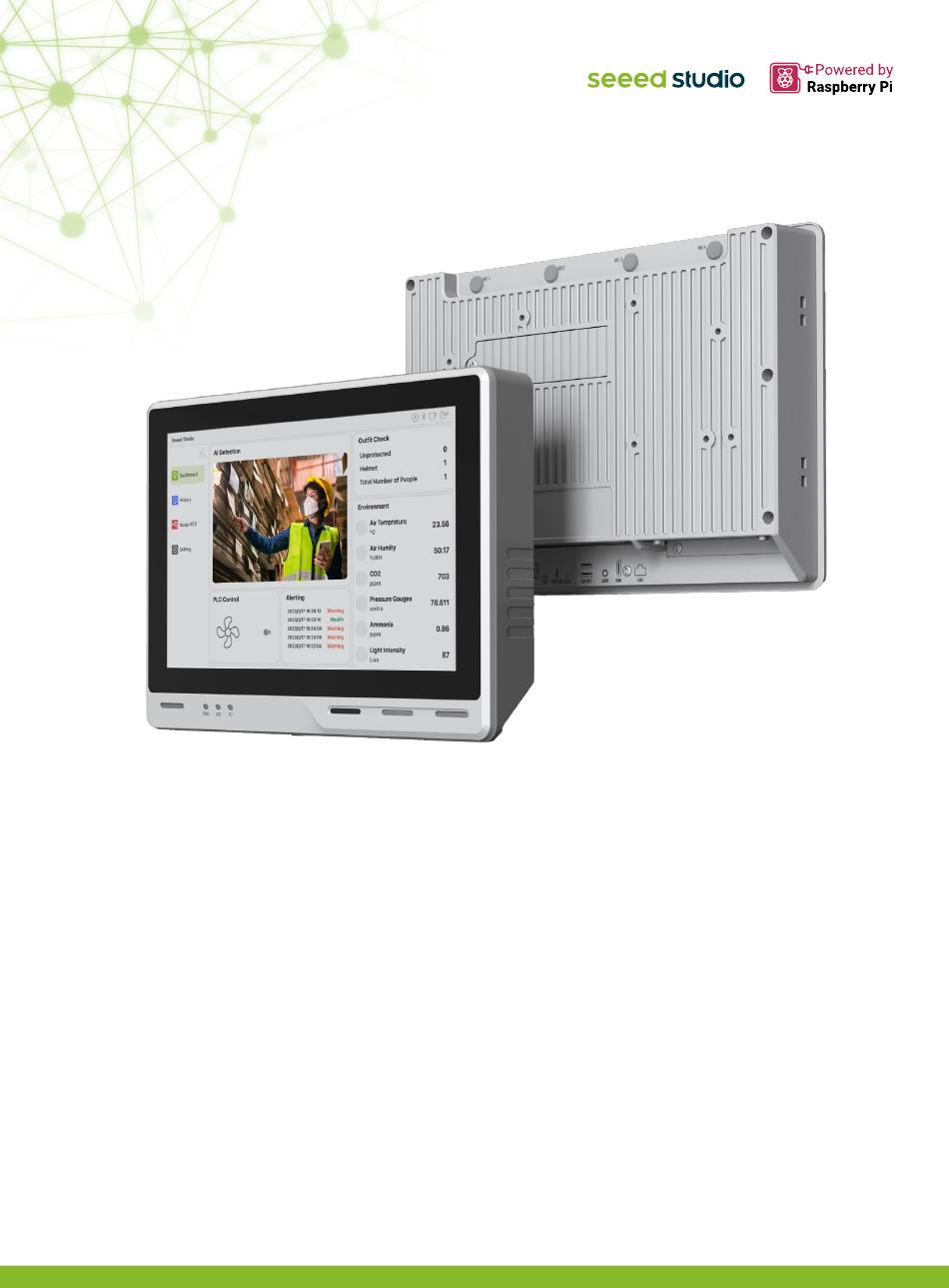

    C1. Introduction 1.1 Overview The reTerminal DM is a multi-functional industrial panel PC based on the Raspberry Pi CM4 platform. With its powerful computing performance, convenient touchscreen interface, various IOT gateway wireless connectivity options, rich peripheral interfaces, and strict industrial reliability design, the reTerminal DM is ideal for a wide range of applications and industries, including energy mana- gement, medical monitoring, commercial retail, home automation, and more.

  • Page 6: Specification

    DM 1.3 Specification Parameter Description Basic Quad-core Cortex-A72@ 1.5GHz Memory 8GB RAM Storage 32GB eMMC M.2 NVMe SSD Slot 2280-M Key(optional) OS Support Raspbian SenseCraft Edge Platform Display Size 10.1'' Max. Resolution 1280 x 800 Max. Colors 16.7M (8-bit) Luminance (nit) Viewing Angle (H/V°)
  • Page 7 DM Parameter Description Power Input 2-pin Terminal Block PoE(optional) Power Range 12~24V DC Power Consumption 4W Idle. 9W Max. Power Switch Reboot Switch Environment Ingress Protection IP65 Front Panel Operating Temperature -10~50 °C Storage Temperature -20~70 °C Humidity (Operating)

  • Page 8: Dimension

    DM 1.4 Dimension Unit: mm © 2009-2023 Seeed Technology Co.,Ltd. All rights reserved.

  • Page 9: C2. Hardware Overview

    DM C2. Hardware Overview 2.1 System Overview 2.1.1 Interface Overview Microphone LED Indicator Light Sensor Buzzer Microphone Power In 4 Reserved Antennas SIM Slot HDMI Ports for Wireless RS485/232/DIO/CAN Reset Hole 1000M Ethernet Boot Switch USB Host PCIe Extension Slot...

  • Page 10: Mainboard Overview

    DM 2.1.2 Mainboard Overview [J1] [J2] [J3] [J4] USB2.0 9Pin CSI0 CSI1 Camera Power connector [J5] Watchdog enable [J20] LED connector [J6] Mini-PCIe LoRa [J19] ® PCIe [J7] DSI1 [J18] Mini-PCIe 4G/LTE [J17] 40-PIN header [J8] Light connector [J16]...

  • Page 11: Power Supply

    EEPROM The reTerminal DM supports two power supply options: DC terminal and PoE port. By default, the reTerminal DM is powered through the DC terminal, while the PoE power supply is optional. This provides flexibility in power supply selection and allows for easy integration with various power sources.
  • Page 12 Note It's worth noting that the PoE module provided with the reTerminal DM is compliant with the IEEE 802.3af standard and can provide a maximum power supply of 13W. Therefore, if there is a need to connect high-power peripherals such as mobile hard disks or 4G modules, the PoE power supply may not be sufficient. In this case, it's recommended to use the DC terminal for power supply instead to ensure stable and reliable operation of the device.

  • Page 13: Block Diagram

    DM 2.1.4 Block Diagram Map Legend: LTE_USB Wi-Fi Toggle Switch USB HUB2 Wi-Fi Mini PCIE_USB nRPIBOOT Bluetooth Bluetooth PIN Header PIN Header DEVICE USB4 INTERF ACE LPDDR4 USB Switch USB HUB1 USB TypeA SET=0 USB1/USB2 USB 2.0 CONN 4/8GB...

  • Page 14: Iic Tree

    DM 2.1.5 IIC Tree IIC3 ATECC608A 0xc0 PCF8563T 0x51 40PIN Mini-PCIe User operable 0x50 EEPROM x2 0x57 IIC1 Light Sensor 0x29 TLV320AIC3104 0x1b GPIO EXPAN 0x21 Mini-PCIe LoRa ® 40 PIN IIC0 MIPI IPS 0x5d © 2009-2023 Seeed Technology Co.,Ltd. All rights reserved.

  • Page 15: Interface Description

    2.2 Interface Description 2.2.1 Microphone The reTerminal DM is equipped with two MEMS microphones located on the left and right sides below the screen. These micro- phones can be configured as a dual microphone array, providing superior sound pickup capabilities.

  • Page 16: Light Sensor

    2.2.4 Buzzer The reTerminal DM features an active buzzer located at the bottom right corner of the screen, which can be used for various purposes such as alarm and event notifications. The buzzer is controlled through the PCA9535 GPIO expansion IC, which provides additional digital I/O channels for the device.

  • Page 17: Di/Do

    DM 2.2.6 DI/DO The reTerminal DM supports 4 digital input and 4 digital output channels, all of which are optically isolated to effectively protect the mainboard from voltage spikes or other electrical disturbances. Digital Input Digital Output DI/DO pin assignment table...

  • Page 18: Rs232

    2.2.10 Boot Switch The Boot Switch of reTerminal DM is connected to the nRPI_BOOT pin of CM4. This switch allows users to select either eMMC or USB as the boot source. In normal operation, the boot switch should be set to the right position, and the system will boot from eMMC.

  • Page 19: Sim Slot

    Note Please note that the standard version of reTerminal DM does not come with a 4G module. If you require 4G functionality, an additional 4G module must be purchased separately. For more information, please refer to section "2.3.2 4G Module".

  • Page 20: 40-Pin Gpio

    Note Please note that the reTerminal DM is shipped with an RTC battery, if you need to replace the battery please refer to section 3.9 RTC Battery Replacement. 2.2.19 Watchdog The reTerminal DM comes equipped with an independent hardware watchdog circuit that ensures automatic system reboot in case of abnormal system crashes.

  • Page 21: Optional Interfaces And Modules

    Note It is important to note that due to the reTerminal DM's metal casing, WiFi/BLE signals may have difficulty penetrating the metal exterior. If you require WiFi/BLE functionality, it is recommended to purchase an external antenna and follow the instructions in section 3.2 "Assemble WiFi/BLE Antenna".

  • Page 22: Camera

    Note Please note that the standard version of the reTerminal DM does not come with a camera opening on the front panel, therefore, the camera functionality is not available for the standard product. If you have a customized camera requirement, please contact odm@seeed.cc 2.3.5 PCIe Expansion Card...

  • Page 23: Ssd

    Please note that： 1- The standard version of the reTerminal DM does not support SSD and requires the purchase of a PCIe expansion card to enable this feature. For more information, please refer to section 2.3 Optional Interfaces and Modules. Additionally, please refer to section 3.5 Assemble PCIe Extension Module and 3.6 Assemble SSD for instructions on installing the SSD and PCIe expansion card.

  • Page 24: C3. Assembly Guide

    DM C3. Assembly Guide 3.1 Disassembly Guide Step 1: Place the reTerminal DM screen-down on a flat surface. Step 2: Loosen the screws and remove the back cover. PM3x10 KM3x8 KM3x8 PM3x10 © 2009-2023 Seeed Technology Co.,Ltd. All rights reserved.

  • Page 25: Assemble Wifi/Ble Antenna

    DM 3.2 Assemble WiFi/BLE Antenna Step 1: Remove the back cover, take out the silicone plug. Step 2: Load the antenna SMA connector into the back cover, and screw the antenna into the SMA connector. Step 3: Insert the other end of the antenna feeder (IPEX plug) into the IPEX socket of the CM4.

  • Page 26: Assemble 4G Module And Antenna

    DM 3.3 Assemble 4G Module and Antenna Step 1: Remove the back cover, take out the silicone plug. Step 2: Load the antenna SMA connector into the back cover, and screw the antenna into the SMA connector. Step 3: Insert the 4G module into the mainboard socket and lock the screws.

  • Page 27: Assemble Lora ® Module And Antenna

    DM 3.4 Assemble LoRa Module and Antenna ® Step 1: Remove the back cover, take out the silicone plug. Step 2: Load the antenna SMA connector into the back cover, and screw the antenna into the SMA connector. Step 3: Insert the LoRa module into the mainboard socket and lock the screws.

  • Page 28: Assemble Pcie Extension Module

    DM 3.5 Assemble PCIe Extension Module Step 1: Remove the back cover. Step 2: Insert two sets of 16pin cables into sockets on PCIe PCBA and dual network port PCBA. Step 3: Load the PCIe PCBA into the mainboard and lock the screws.

  • Page 29: Assemble Ssd

    DM 3.6 Assemble SSD Step 1: Remove the back cover. Step 2: Load the PCIe PCBA into the mainboard and lock the screws. Step 3: Cover the rear case back and lock the screws. Step 4: Unscrew the quick remove cover screw and take out the quick remove cover.

  • Page 30: Assemble Camera

    DM 3.7 Assemble Camera Step 1: Remove the back cover. Step 2: Insert the camera into the camera bottom board. Step 3: Insert the camera FPC cable into the socket of the camera bottom board. Step 4: Install the camera into the front cover and attach a sticker to fix it.

  • Page 31: Assemble Poe Module

    DM 3.8 Assemble PoE Module Step 1: Remove the back cover and take out the mainboard. Step 2: Insert the PoE into the mainboard according to the dot mark. Step 3: Solder the PoE module on the back of the mainboard.

  • Page 32: Rtc Battery Replacement

    DM 3.9 RTC Battery Replacement Step 1: Remove the back cover. Step 2: Insert the RTC battery cable into the RTC battery socket, and attach the RTC battery to the network port. Step 3: Cover the back cover back and lock the screws.

  • Page 33: Fuse Replacement

    DM 3.10 Fuse Replacement Step 1: Remove the back cover. Step 2: Take out the old fuse in the mainboard fuse socket and put in the new fuse. Step 3: Cover the back cover back and lock the screws.

  • Page 34: Chassis Grounding Guide

    DM 3.11 Chassis Grounding Guide Step 1: Loosen the grounding screw. Step 2: Load the grounding connector and tighten the screw. Ground Connector Ground Screw © 2009-2023 Seeed Technology Co.,Ltd. All rights reserved.

  • Page 35: Terminal Connection Guide

    DM 3.12 Terminal Connection Guide Step 1: Insert the power connector in the direction shown below. Step 2: Insert the cable connector in the direction shown below. Power Connector Cable Connector © 2009-2023 Seeed Technology Co.,Ltd. All rights reserved.

  • Page 36: C4. Mounting Guide

    C4. Mounting Guide The reTerminal DM supports multiple installation methods, and users can choose flexibly according to their usage scenarios. It should be noted that the standard product does not come with the accessories required for Panel Mount and Din Rail Mount, and defined accessories need to be purchased for installation.

  • Page 37: Vesa Mount

    DM 4.2 VESA Mount 4.3 DIN Rail Mount 114070181, Sliding Block for Linear Guideway Rail is required for DIN Rail mounting © 2009-2023 Seeed Technology Co.,Ltd. All rights reserved.

  • Page 38: C5. Warranty & Support

    5 - During the free warranty period, in case of any of the following events, Seeed Studio has the right to refuse service or charge materials and service fees at its discretion.
