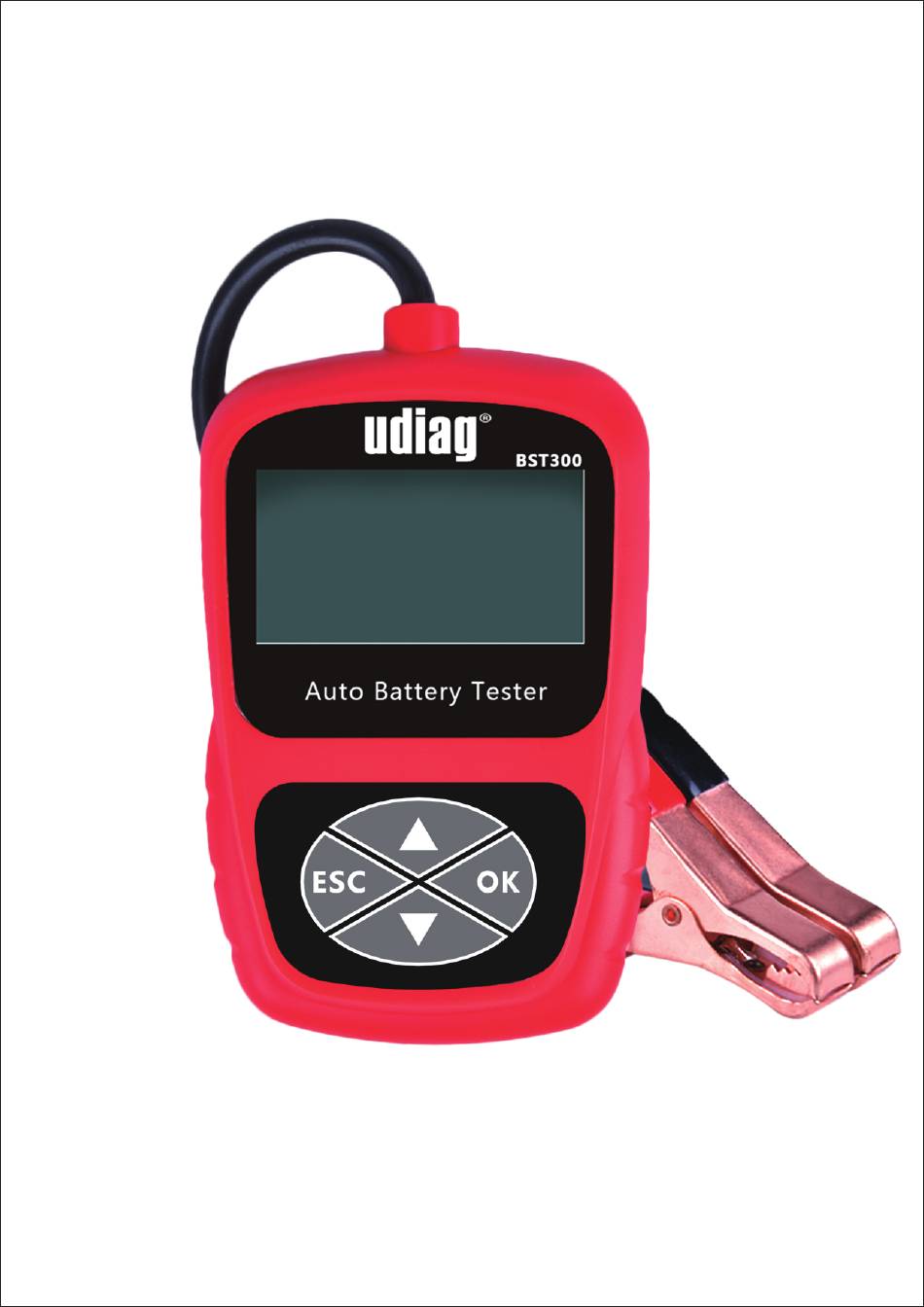

- Page 1 Udiag BST300 Battery Tester User Manual www.udiagtech.com...
- Page 2 Content 1 Introduction............................3 1.1 Product Introduction ......................... 3 1.2 Specification ............................3 1.3 Product Function..........................3 2 Operating Instruction ........................... 4 2.1 Battery Test............................4 2.1.1 Before Testing ..........................4 2.1.2 Check Connection .......................... 4 2.1.3 Reverse Connection........................4 2.
- Page 3 1 Introduction 1.1 Product Introduction BST300 Battery Tester adopts currently the world's most advanced conductance testing technology to easily, quickly and accurately measure the actual cold cranking amps capability of the vehicle starting battery, health state of the battery itself, and common fault of the vehicle starting system and charging system, which can help maintenance personnel to find the problem quickly and accurately.
- Page 4 BST300－Connecting the test clamp with the battery. 2.1.5 Hidden Function BST300: Press DOWN key to choose DISPLAY Resistance or Rated CCA. 2.1.6 IN-VEHICLE or OUT-OF-VEHICLE After starting up, the battery will prompt to select batter location. Press UP/DOWN key to select in-vehicle or out-of-vehicle, then press OK key to confirm.
- Page 5 2.1.7 Select Battery Charge State Press UP/DOWN key to select battery charge status: Before Charge or After Charge, then press OK key to confirm. This way can ensure a more accurate test result. NOTE: In Vehicle, select Before Charge for Cold Vehicle and After Charge for Hot Vehicle. STLECT CHARGE SELECT CHARCE BEFORE CHARGING...
- Page 6 2.1.10 Battery Test Result Testing Result Description State of Health State of Charging Voltage Measured CCA Result Rated CCA Battery test result includes 5 types as following Good battery Good, Recharge GOOD BATTERY SOH: 96% SOC: 98% SOH: 78% SOC: 30% 12.64V 490A 12.20V...
- Page 7 NOTE: If "Replace" resulted from IN-VEHICLE mode, it might be the reason that vehicle cable is not well connected with the battery. Ensure to cut off the cable and retest the battery under OUT-OF-VEHICLE before making a decision to replace battery. After testing, if need to return, press “RETURN”...
- Page 8 The exclusive remedy for any automotive part found to be defective is repair or replacement, and Udiag shall not be liable for any consequential or incidental damages.
