Elsner EMP 5508P Series Operating Instructions

19 -Inch- SAT Multiswitch for 1 Satellite
Operating instructions for EMP 5508P-xx | 5516P-xx | 5532-xx
Design -01: Connections User (5532 front + rear) and trunk front, LNB rear.

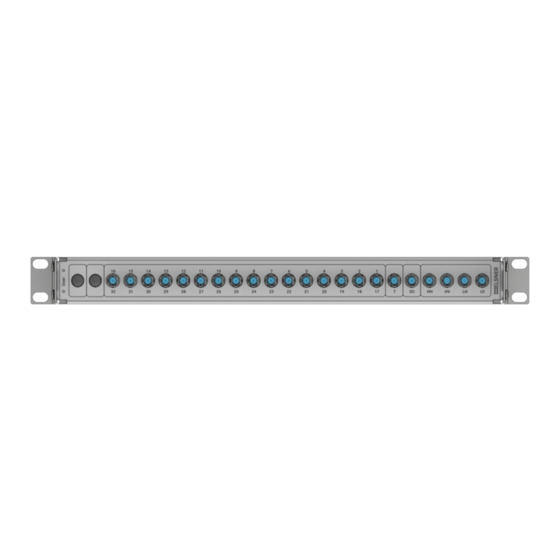

Picture EMP 5532-01
Design -05: With integrated 19-inch power supply unit. Connections user (5532 front + rear) and
trunk front, LNB rear.
Design -07: The 19-inch power supply unit is equipped with two power supply plug-in units for
redundant operation.
Picture EMP 5532-05/07
Description
The multiswitch is assembled in a functional unit and is delivered tested for function and ready for
operation.
The functional unit complies with EN60728-11 for the installation and operation of antennas and antenna
systems. During installation, observe the earthing regulations EN60065 and EN60728-11 for the
operation of antennas and antenna systems.
Elsner KG, Bergstraße 14, 6835 Zwischenwasser, Austria
TEL +43-660-3005010 WEB: https://elsner.biz MAIL: verkauf@elsner.biz
Picture back EMP 5532-01
Pos: 1-2 n.c. | 3-18 user | 19 TER | 20 DC | 21-24
LNB
Picture front EMP 5532-01
Pos: 1-6 trunk | 7-22 user | 23 n.c. | 24 PSU
Package includes:
Multiswitch and plug-in power supply unit
Picture back EMP 5532-05
PSU: Section 1 | Section 2 | Section 3 | Section 4
Picture back EMP 5532-07
PSU: Section 1 | Section 2 | Section 3 | Section 4
Picture front EMP 5532-05/07
Pos: 1-6 trunk | 7-22 user | 23 PSU 2 | 24 PSU 1
EMP 55
Issue 2020-11
