Cpu Fan Pin; System Fan Pin - Colorful BATTLE-AX B760M-PLUS D5 V20 Manual

BATTLE-AX B760M-PLUS D5 V20

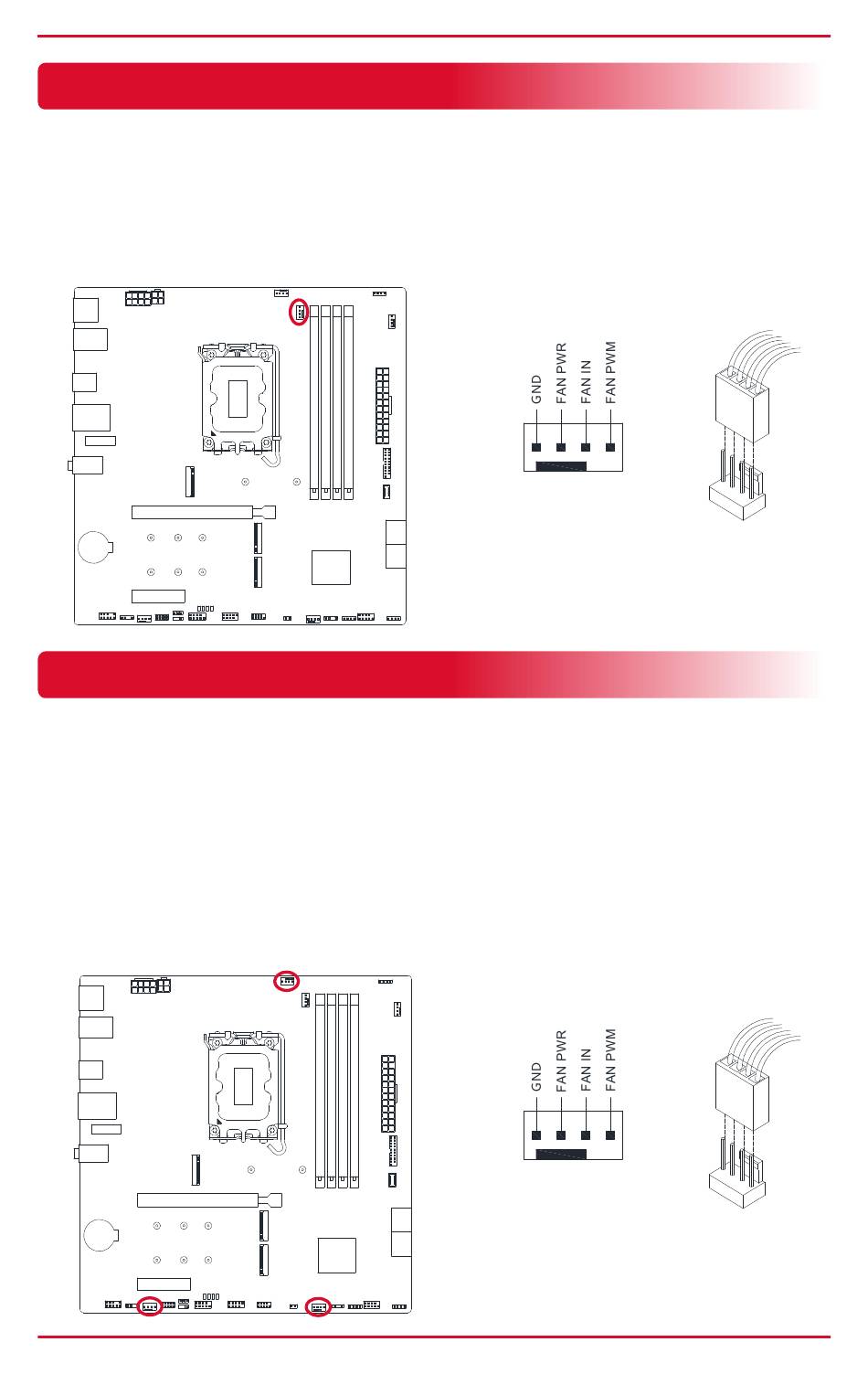

CPU fan pin

There is one 4-pin CPU fan pin on the motherboard. The socket comes with a
foolproof design, and the correct direction must be checked before installation.
The cooling fan with a speed control function can reduce the temperature of
the CPU and provide a cooling function.

System fan pin

There are three 4-pin system fan pins in total on the motherboard. The socket comes
with a foolproof design, and the correct direction must be checked before
installation. CHA_ FAN1 supports independent control, while CHA_FAN2 and
CHA_FAN3 share control, and when a single fan is connected to CHA_FAN3, the fan
cannot be detected by the motherboard. Matching with a cooling fan with a speed
control function, the temperature of the computer case can be reduced, achieving
the cooling function.
