TRANSLATION FROM THE ORIGINAL MANUAL
Before assembly and start-up, please read and clearly understand all the
IMPORTANT :
documents relating to the equipment (professional use only).
THE PICTURES AND DRAWINGS ARE NOT CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT
SAMES KREMLIN
AIRSPRAY GUN
Disassembly / Reassembly
PRIOR NOTICE.
SAMES KREMLIN SAS
l
13, chemin de Malacher
38 240 - MEYLAN - France
: 33 (0)4 76 41 60 60
www.sames-kremlin.com
FPro P
N° : 578.224.110-UK-1710
Advertisement
Summary of Contents for SAMES KREMLIN FPro P

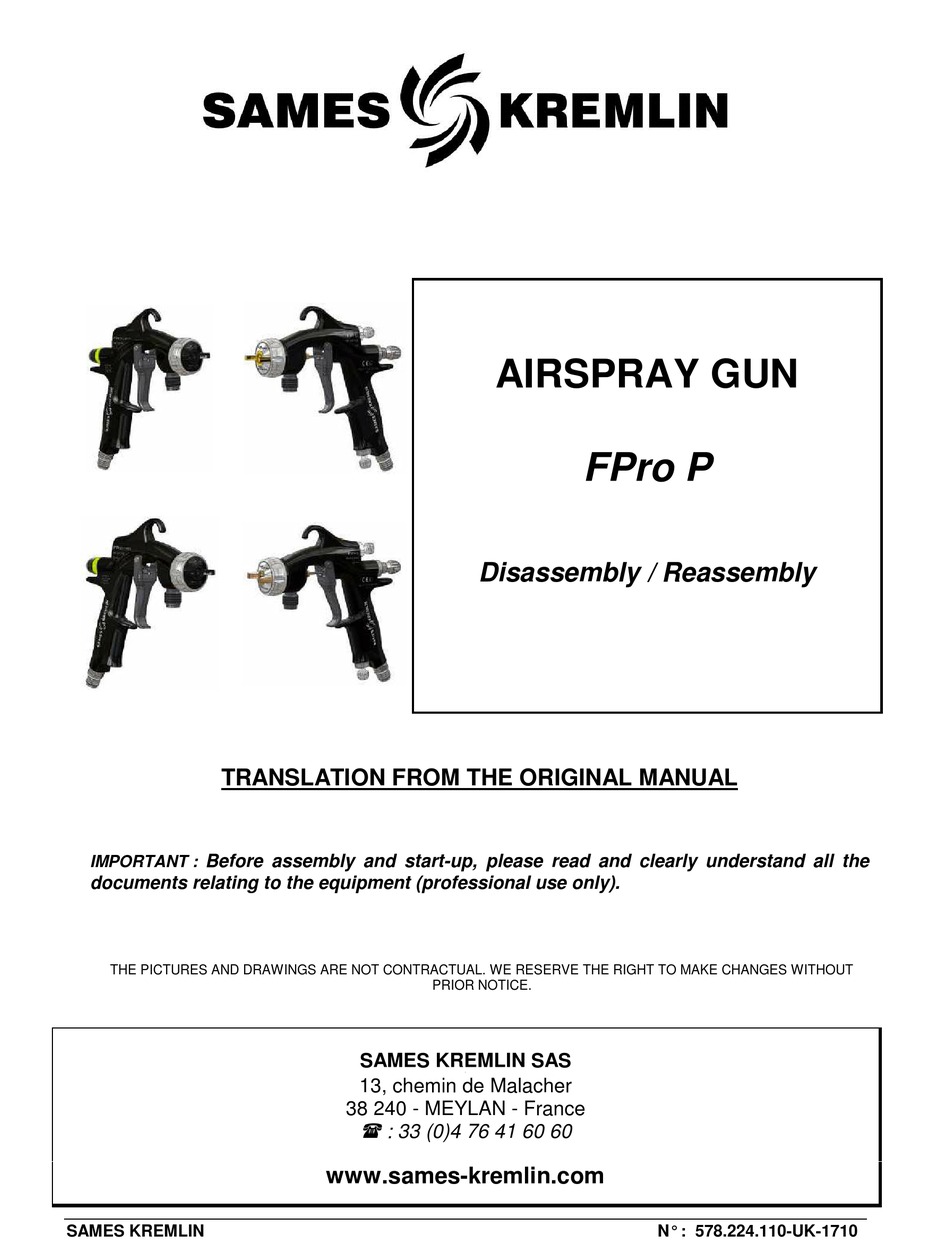

- Page 1 AIRSPRAY GUN FPro P Disassembly / Reassembly TRANSLATION FROM THE ORIGINAL MANUAL Before assembly and start-up, please read and clearly understand all the IMPORTANT : documents relating to the equipment (professional use only). THE PICTURES AND DRAWINGS ARE NOT CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRIOR NOTICE.
- Page 2 The gun is manufactured under the ATEX agreement and can not be modified. SAMES KREMLIN will not be held responsible for any failure to comply with that instruction. Before removing a component of the gun, some precautions have to be taken :...
- Page 3 FPRO P LP - CONV FPRO P LOCK LP - LOCK CONV SAMES KREMLIN - 2 - N° : 578.224.110-UK-1710...
- Page 4 For the guns, model FPRO P LP and CONV : reinstall them as well as the needle stop (22). For the guns, model FPRO P LOCK LP and LOCK CONV : reinstall them as well as the needle stop sleeve (17) - screwing torque : 5 Nm / 3.688 Ft/Lbs.
- Page 5 NEEDLE PACKING (IND. 13) REPLACEMENT Make sure there is no more paint inside the gun. For the guns, model FPRO P LP and CONV : unscrew the needle stop (22) and remove the needle spring (20). For the guns, model FPRO P LOCK LP and LOCK CONV : unscrew the needle stop sleeve (17) and remove the needle spring (20).
- Page 6 Dismount the trigger (36) by removing the screw (39) and the trigger spindle (38) by means of two wrenches n° 5.5. Reinstall the parts in the reverse order of the disassembly sequence. Apply previously low strength - Anaerobic adhesive on the screw (39). SAMES KREMLIN - 5 - N° : 578.224.110-UK-1710...
- Page 7 AIR ADJUSTER ASSEMBLY (IND. 31 & IND. 40) (ONLY FOR FPRO P LP - CONV) Unscrew the air adjuster (31and/or 40) by means of the wrench supplied with the gun. Check the ring (32 and/or 41) condition and change it if necessary.
