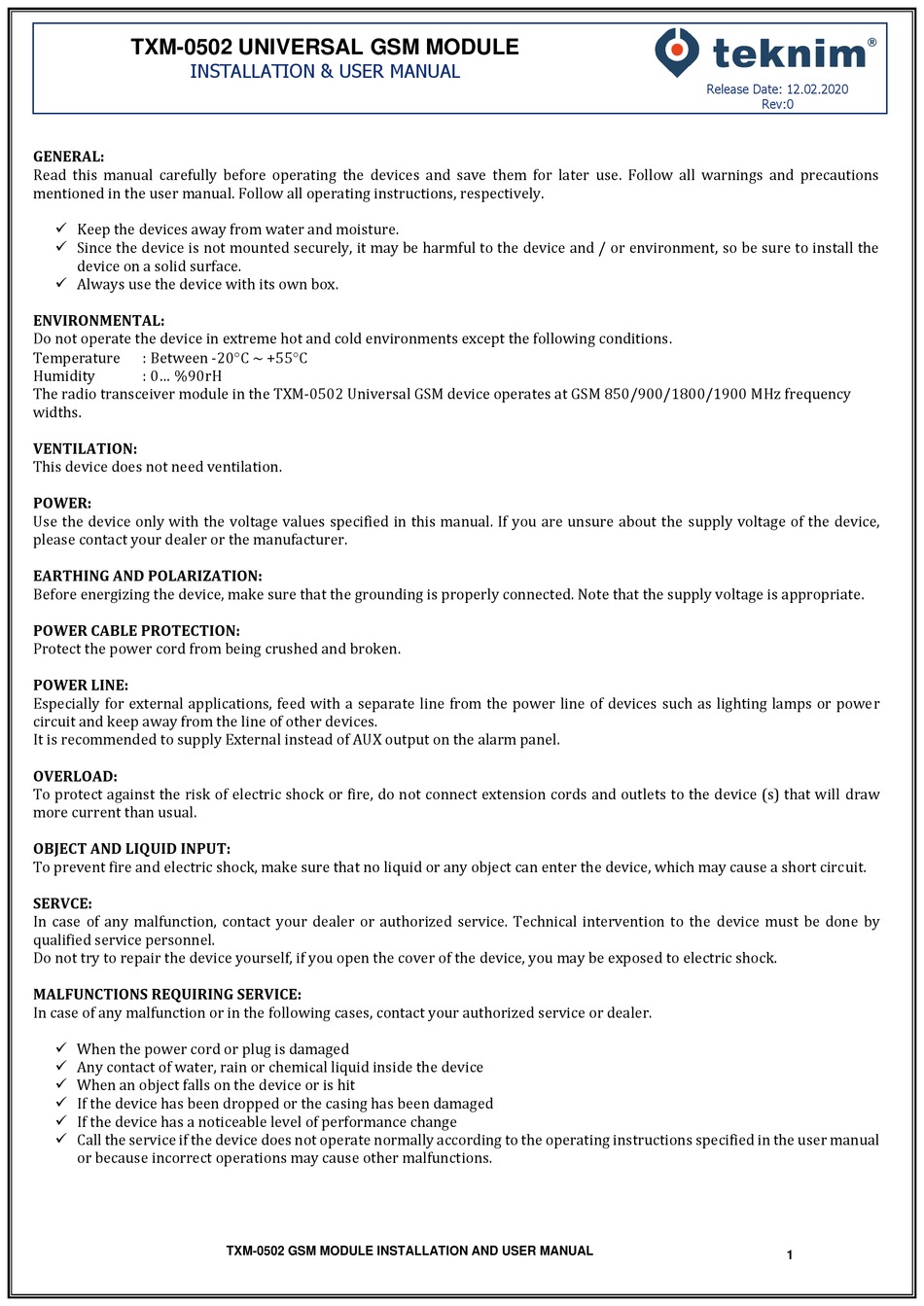

Teknim TXM-0502 Installation & User Manual

TXM-0502 UNIVERSAL GSM MODULE
INSTALLATION & USER MANUAL
GENERAL:
Read this manual carefully before operating the devices and save them for later use. Follow all warnings and precautions
mentioned in the user manual. Follow all operating instructions, respectively.
✓ Keep the devices away from water and moisture.
✓ Since the device is not mounted securely, it may be harmful to the device and / or environment, so be sure to install the
device on a solid surface.
✓ Always use the device with its own box.
ENVIRONMENTAL:
Do not operate the device in extreme hot and cold environments except the following conditions.
Temperature : Between -20C ~ +55C
Humidity : 0... %90rH
The radio transceiver module in the TXM-0502 Universal GSM device operates at GSM 850/900/1800/1900 MHz frequency
widths.
VENTILATION:
This device does not need ventilation.
POWER:
Use the device only with the voltage values specified in this manual. If you are unsure about the supply voltage of the device,
please contact your dealer or the manufacturer.
EARTHING AND POLARIZATION:
Before energizing the device, make sure that the grounding is properly connected. Note that the supply voltage is appropriate.
POWER CABLE PROTECTION:
Protect the power cord from being crushed and broken.
POWER LINE:
Especially for external applications, feed with a separate line from the power line of devices such as lighting lamps or power
circuit and keep away from the line of other devices.
It is recommended to supply External instead of AUX output on the alarm panel.
OVERLOAD:
To protect against the risk of electric shock or fire, do not connect extension cords and outlets to the device (s) that will draw
more current than usual.
OBJECT AND LIQUID INPUT:
To prevent fire and electric shock, make sure that no liquid or any object can enter the device, which may cause a short circuit.
SERVCE:
In case of any malfunction, contact your dealer or authorized service. Technical intervention to the device must be done by
qualified service personnel.
Do not try to repair the device yourself, if you open the cover of the device, you may be exposed to electric shock.
MALFUNCTIONS REQUIRING SERVICE:
In case of any malfunction or in the following cases, contact your authorized service or dealer.
✓ When the power cord or plug is damaged
✓ Any contact of water, rain or chemical liquid inside the device
✓ When an object falls on the device or is hit
✓ If the device has been dropped or the casing has been damaged
✓ If the device has a noticeable level of performance change
✓ Call the service if the device does not operate normally according to the operating instructions specified in the user manual
or because incorrect operations may cause other malfunctions.
TXM-0502 GSM MODULE INSTALLATION AND USER MANUAL
Release Date: 12.02.2020
Rev:0
1
