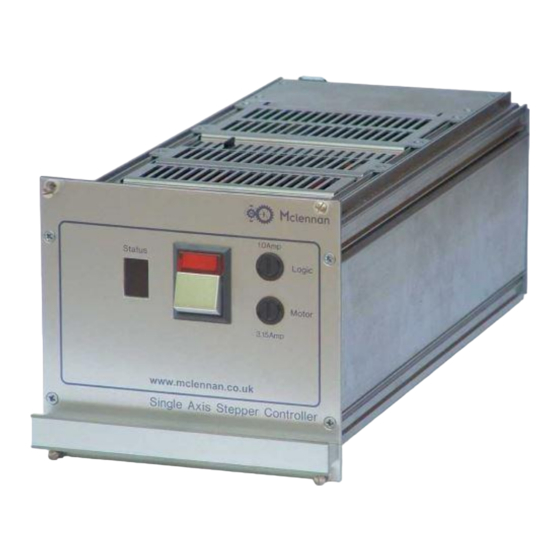

VACGEN 17HS-006 Mk 3 Operating And Maintenance Handbook

Operating and Maintenance Handbook
Wiring Information for Stepper Motors and SIMSTEP Controller
Revision History
Revision Date
1 June 2019
Copyright Notice: 2019 by VACGEN Ltd. All rights reserved. Information contained in this handbook is subject to change without notice
and does not represent a commitment on the part of VACGEN Ltd. No part of this document may be copied, distributed, transmitted,
transcribed, stored in a retrieval system or translated into any human or computer language, in any form or by any means, electronic,
mechanical, magnetic, optical, manual or otherwise or disclosed to third parties without the express written of VACGEN Ltd, Diamond
Drive, Hailsham, East Sussex, BN27 4EL, UK
1.
INTRODUCTION
1.1
HEALTH AND SAFETY INFORMATION
This equipment is a component for use with vacuum systems. Whilst every effort has been made to eliminate hazards, its safe use
is also dependant on the system to which it will be connected.
The owner of the equipment must ensure that all users are aware of the Health and Safety information contained in this
handbook. If the equipment is sold or passed to another owner, this handbook must be included with the equipment. If in
doubt contact VACGEN.
Warning: This equipment must be repaired/installed by qualified personnel.
Warning: It is the responsibility of the user to consider the safety requirements of hazardous materials used with this
equipment and the consequence of any leakage, however caused. Consider possible reactions with materials of construction.
Any equipment returned to VACGEN must have the correct Declaration of Contamination securely fastened to the outside of
the packaging.
Warning: Harmful gases may be evolved if this equipment is heated to temperatures above the maximum specified
bakeout temperature.
Warning: Lubricants used in this assembly may cause irritation to sensitive skin. Wear protective clothing.
Warning: Where cryogenic liquids are used with the equipment, it is the responsibility of the user to ensure that the correct
safety precautions are taken when handling and storing these materials.
Warning: Safe disposal of the equipment is the responsibility of the user.
Warning: It is the responsibility of the user to fit emergency stops to automated equipment.
Warning: Keep clear of moving parts.
Warning: Do not use this equipment with positive internal pressure above the specified maximum.
sales@vacgen.com
Comment
Original Release
www.vacgen.com
Initials
DRM
0044 (0) 1323 379335
