JOMO Tech Lite 80 Quick Start Manual

The JOMO Tech Lite 80 Tank Quick Start Guide

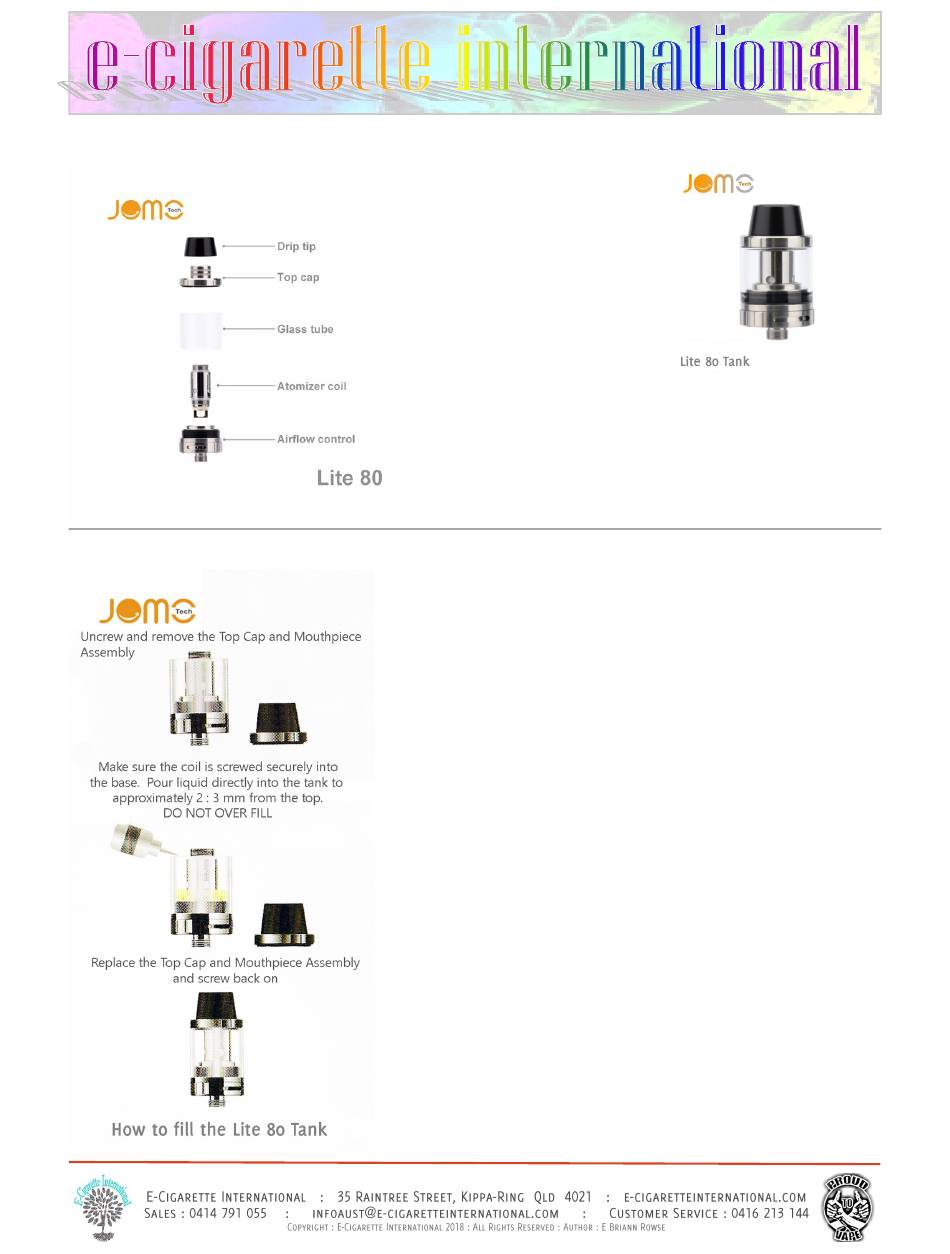

Filling the Tank

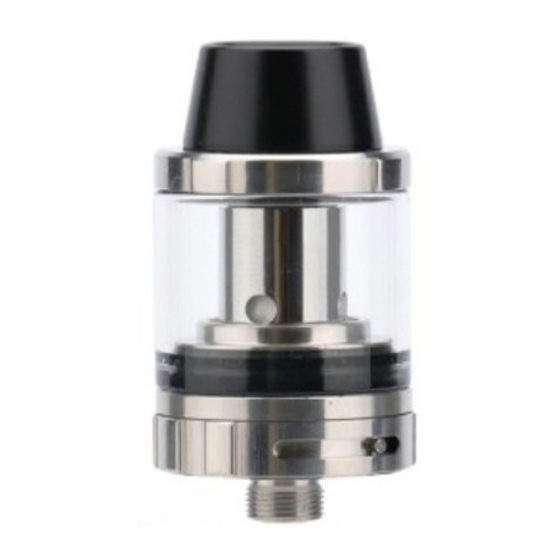

The JOMO Tech Lite 80 Tank was designed
for a more powerful e-cigarette, it needed
to be able to function perfectly at 80W or
more, which is why when the Lite 80 Box
MOD was discontinued, the upgraded Lite
80 Tank was the most logical tank for the
Royal 100 Vape Pen . . . and they work
perfectly together.
It has a 2ml capacity and runs a 0.4 ohm
coil, which probably helps to explain the
fairly economical liquid consumption.
And it's just too easy to fill and maintain : everything happens through the top of the
tank. You remove the mouthpiece and top cap assembly and it's all right there : the
coil [screw out / screw in] and the void between the glass and the coil wall to fill
directly into.
The glass is attached to the base via a black seal and a vacuum seal deal when the
top cap is screwed on [physics stuff] : the air flow control is located on the base.
Always make sure that the coil is screwed securely into place before you start to fill the
tank. If the coil isn't in tight enough, when you remove the mouthpiece and top cap assembly
next, the coil may unscrew with the assembly, leaving any liquid in the tank to drain into the
base of the tank and leak out the air flow vents . . . messy . . .
If this does happen, face the open end of the tank down to let the remaining liquid drain
before you take the coil out completely.
A good way to test if the coil is in securely is to screw the top assembly back into place and
then unscrew it again before you fill the tank. If you see the coil begin to move, screw it in
tighter . . . if it stays put, I'd give it a tweak anyway, then start filling.
If you're filling the tank and it's got a brand new coil fitted, it's a good idea to 'prime' the coil
before you screw it in place and fill the tank. If you have a look at the coil itself, you'll see
there are two holes, one on each side of the coil body. To 'prime' a coil, you put a coupe of
drops of liquid into the holes in the coil body to kick start the absorption process of the
organic cotton inside the coil.
So you've primed your new coil and it's screwed in tight . . . the next thing is to pour the
liquid directly into the tank in the void between the glass tube and the outside of the coil
body. Don't get any liquid in the centre hole of the coil, cause it tastes really yukky and you
will end up drinking it and you won't like it . . . and don't over fill it . . . that's just messy . . .
Screw the mouthpiece and top cap assembly back on tightly and you're done.
Let the tank sit for a few minutes to ensure that the organic cotton inside is totally wet, then
vape away. You'll notice that as the coil 'ages' over the next couple of hours, the flavour will
get deeper and there'll be more vapor produced.
Two important things to remember : NEVER hit the fire button if there is no liquid in
the tank and NEVER let the liquid level fall below the holes in the side of the coil body.
Both scenarios will see the coil flash burn.
