Page 10
If you need any assistance in the process of installation, please contact our after-sales customer service or reach us on ..............BIOS Settings HUANANZHI official E-mail:bussiness@huananzhi.com for professional technical support. Prior to installation or disassembly, please switch off the power and pull the power cable from the socket.

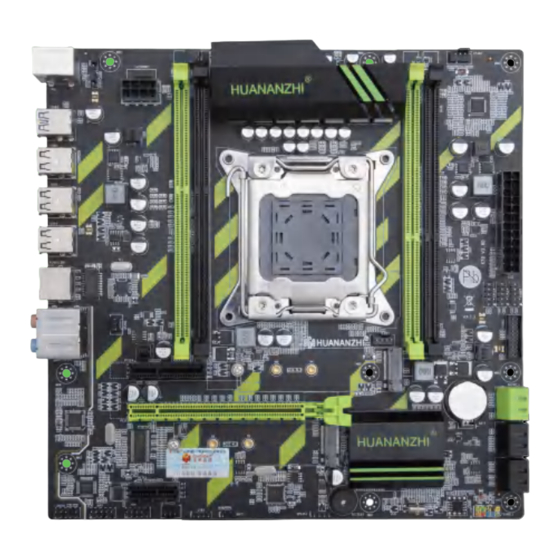

后置I/O面板 MOTHER BOARD IMAGE Audio Port PS/2 DDR3*2 DDR3*2 4PIN Fan Interface 8PIN CPU Power Supply USB 3.0 USB 2.0 USB 2.0 USB 2.0 PS/2 USB3.0 1-2 Overall Rear I/O Panel Display USB2.0 24PIN Power Supply Speed Signal Gigabit Ethernet Connection/Work Light USB2.0 3Pin Fan Interface...
Installation And Settings NOTICE ! PCI-E X4 please check the motherboard where all pins marked with number “1” or white bold line are position “1” . PCI-E X16 1 2 3 4 5 6 7 8 PCI-E X1 2-4 PCI-E Slot 2-1 Clear CMOS Jumper CLR-CMOS PWR LED+ HDD LED+...
Page 14
1 . P u l l t h e c l i p s o n b o t h e n d s o f t h e memory slot outward, and the memory strip corresponds to the protruding posi- tion of the slot to determine the direction of installation.
Drivers installation 1.Drivers listing: 1.Use a screwdriver to remove the Driver Directory Driver Description Operating System bezel and screws on the main unit Intel chip win7/win10 X79-ZD3 Chipset Driver information installation 2.Need to pick up the card slot of Realtek series sound card the card slot when installing the win7/win10 X79-ZD3 Suond Card Driver...
Page 16
5.Driver installation of network 3.1Audio driver installation (take HD Audio series for example) Run "driver installer": X79-ZD3 LAN DRIVER/WIN7 XP Run "driver installer": /X79-ZD3 SOUND CARD DRIVER/ VISTA-WIN7-R267, click on "next"- take WDW-267 if OS is XP "installation"- "finished"and restart the computer, Click on "next"to continue,and then"finished"...
BIOS Settings Chipest Advanced Chipest Settings In order to enable the computer to work well or execute specif- Boot ic functions, CMOS SETUP normally stores all kinds of data in Boot Settings CMOS SRAM of the motherboard. When the computer is shut Security down, motherboard’...
