- Page 1 iDOL 65 camera mounting Mounting Guide 604495 • 2022-02-10...
-
Page 2: Product Description

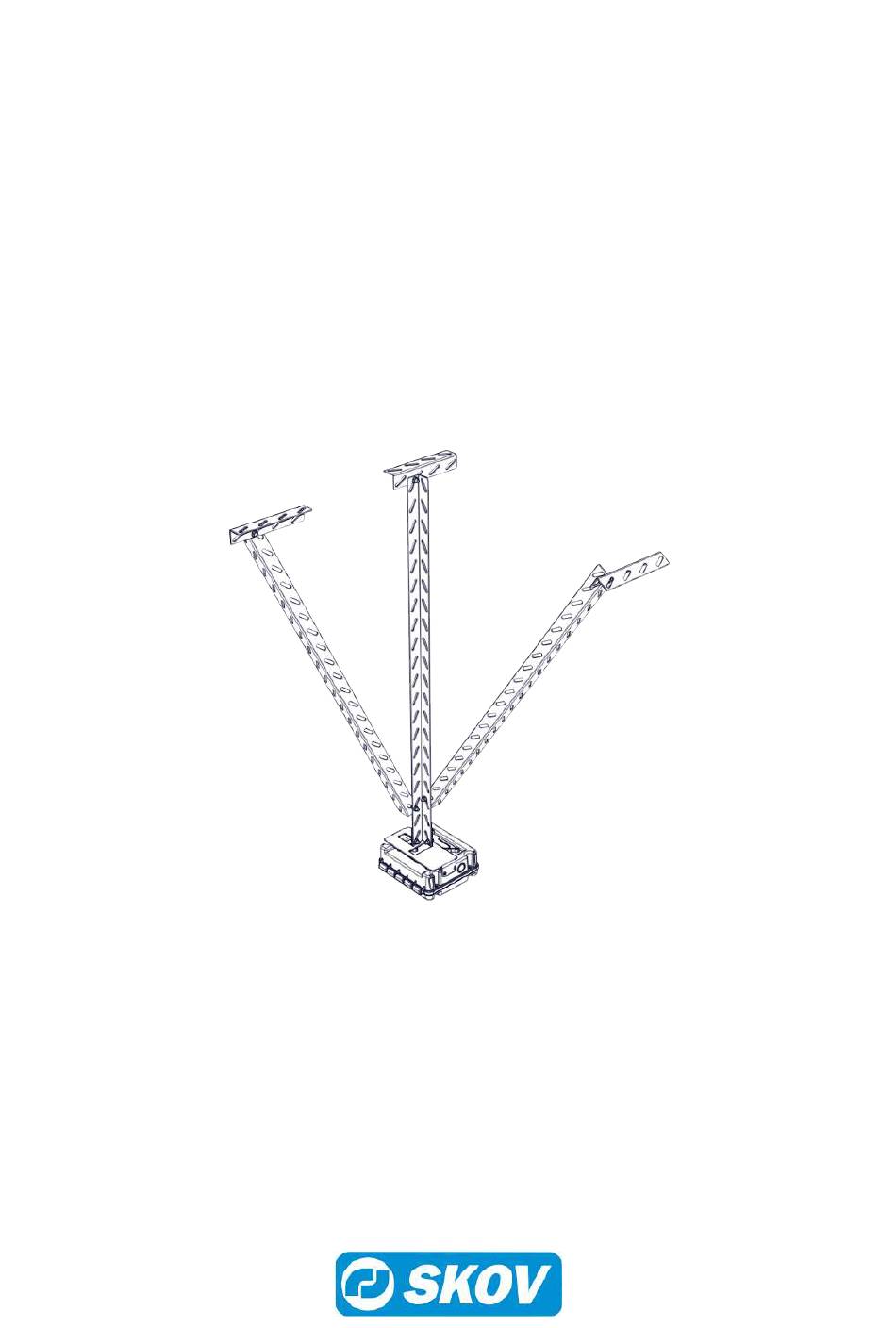

iDOL 65 camera mounting kit 1 Product description The iDOL 65 camera mounting kit i used for mounting the iDOL 65 camera in pig houses. Mounting Guide... -
Page 3: Product Survey
65 camera mounting kit 2 Product survey 140322 iDOL 65 mounting kit basic Used when mounting the iDOL 65 camera in houses with a ceiling height between 2400 mm and 2700 mm. The kit consists of a mounting bracket, mounting profile w/holes and an iDOL 65 screw kit. - Page 4 iDOL 65 camera mounting kit 3 Mounting guide 3.1 Recommended tools A list of the recommended tools for mounting purposes can be seen below. Item Description Cordless drill Angle grinder Adjustable spanner Side cutter Screwdriver bits Drill kit Spirit level Marker pen Tape measure Laser distance meter...
- Page 5 iDOL 65 camera mounting kit 3.2 Placement iDOL 65 must be mounted above the feed dispenser at dry feeding as shown in Figure 1 or above the drinking nipple at wet feeding as shown in Figure 2. The distance to the floor should optimally be 2300 mm and must not deviate more than +/- 50 mm. The house must be emptied and cleaned when the cameras are mounted.
-
Page 6: Measurement Area
iDOL 65 camera mounting kit 3.2.1 Measurement area The measurement area with free view is ø1400 mm. Feed dispenser iDOL 65 camera Figure 1: Placement of 2 cameras in a section with dry feeding. Feed trough Drinkers iDOL 65 camera Figure 2: Placement of cameras at wet feeding. Mounting Guide... -
Page 7: Examples Of Installation
iDOL 65 camera mounting kit 3.2.2 Examples of installation Bracket directly on ceiling without mounting pro- file for extension. 1 iDOL 65 mounting kit basic is used here. 2300 mm 2390 mm Horizontal ceiling. Distance from floor to ceiling = 3200 mm. - Page 8 iDOL 65 camera mounting kit Calculation of necessary mounting kits Ceiling height (mm) Mounting kit basic Mounting kit next 0 – 2600 2700 – 3200 3300 – 4300 Note! Screws for ceiling mounting are not included. 3.2.3 Using mounting profile The mounting profile is used for mounting in the...
- Page 9 iDOL 65 camera mounting kit 3.3 Mounting the bracket on iDOL 65 camera Mount the bracket with the screws enclosed with the iDOL 65 camera. Measurement from bracket to front of camera is ≈ 90 mm. 86.52 mm The height and angle of the camera can be ad- justed a little when mounting it in the mounting profile.
- Page 10 iDOL 65 camera mounting kit 3.4 Mounting the iDOL 65 camera at ceiling height 2400 mm If the ceiling height is 2400 mm, the camera can be mounted without using the mounting profile to lower it. Mount the bracket on the iDOL 65 camera as de- scribed in Mounting the bracket on iDOL 65 cam- era [} 9].
- Page 11 iDOL 65 camera mounting kit 3.5 Mounting at ceiling height above 2400 mm The profile length is calculated Distance from floor to ceiling XXXX mm - 2390 mm = profile length. Example: Ceiling height 2600 mm - 2390 mm = 210 mm = profile length. If the profile length is less than 200 mm, no support is necessary, otherwise support must be used to mini- mize camera movement.
-
Page 12: Securing The Cables
iDOL 65 camera mounting kit Measure and cut off the mounting profile for 2 support profiles. Join the 3 mounting profiles with hex flange head screws and flange nuts. Mount the profiles with hex flange head screws and flange nuts in the profile mounted in the ceil- ing. - Page 16 SKOV A/S • Hedelund 4 • Glyngøre • DK-7870 Roslev Tel. +45 72 17 55 55 • www.skov.com • E-mail: skov@skov.dk...
