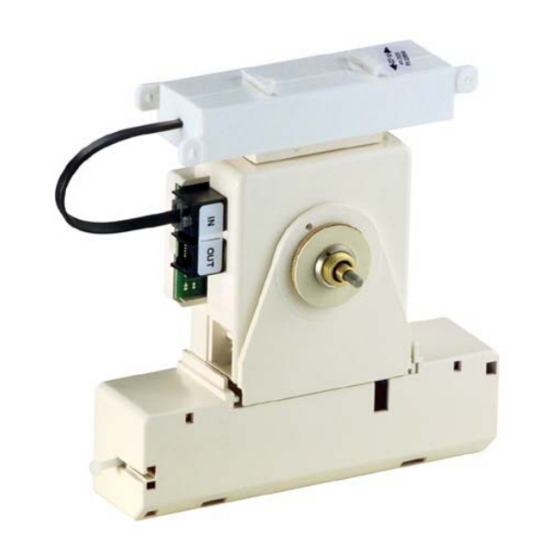

Summary of Contents for Mobatime BU 192t
- Page 1 MOUNTING AND INSTRUCTION MANUAL Movements Models 192 / 192t FU 192(t) ● BU 192(t) ● QU 192(t) © MOBATIME BE-800163.10...
- Page 2 Please read the instructions carefully and start the setting-up of the Series 192 only once you have correctly understood all information for the installation and operation. The installation must be carried out by skilled staff only. © MOBATIME 2 / 20 800163.10...
-
Page 3: Table Of Contents
........... 16 URRENT SAVING MODE OF THE MOVEMENT CURRENT CONSUMPTION ..................16 ONCEPT FOR THE RADIO SIGNAL RECEPTION ........................17 HANGE OF TIME SOURCE PROBLEM REMOVAL ......................... 17 CONNECTIONS ........................... 18 TECHNICAL DATA ..........................19 © MOBATIME 3 / 20 800163.10... -
Page 4: Introduction, Overview
2 Synthetic ring 6 Distance ring The case can be bended and therefore block the 3 Rubber washer 7 Disc nut movement. Always use synthetic ring first (2). 4 Dial © MOBATIME 4 / 20 800163.10... -
Page 5: Mounting And Starting-Up
The electric contact can be improved through a slight tightening of the synthetic screw. 2x LR20 1.5V Batterie The lithium battery and the mains part shall be connected by Var. 3 using the corresponding connection wires. Fig. 4 © MOBATIME 5 / 20 800163.10... -
Page 6: Function Of The Operating Key (Fig. 5)
The external key will be connected on the plug position OUT. For the connection of the plug see chapter 11, page 18. An external key including 5 m cable is KEY 192: available (KEY 192). 5m Cabel External Key Fig. 6 © MOBATIME 6 / 20 800163.10... -
Page 7: Synchronization
Before starting-up the movement should be coded for the corresponding operation mode by means of a soldering bridge (M+1: MEZ+1, M-1: MEZ-1) (Fig. 8 page 8). Important: Only one soldering bridge must be added, otherwise the correct function cannot be guaranteed. © MOBATIME 7 / 20 800163.10... -
Page 8: Synchronization By Means Of Internal Or External Key
MEZ (Middle European Zone). Should the QU 192 be used in another time zone, the offset to UTC-time and season data must be programmed by means of a special serial telegram (chapter 7.4, page 12). © MOBATIME 8 / 20 800163.10... - Page 9 After 7 days without time reception, the clock runs to 12 o’clock and stops running. Duration of the time take-over: The telegram will be transmitted every second: max. 3 sec. The telegram will be transmitted every minute (e.g. save movement in cascade): max. 3 min. © MOBATIME 9 / 20 800163.10...
-
Page 10: Concept For Sending And Receiving Serial Telegrams Cascade
The date must be a valid value. It can, however, remain constant. (e.g. 01.01.01). Attention: After the time setting the QU 192 accepts no new time for about 3 minutes ! © MOBATIME 10 / 20 800163.10... -
Page 11: Serial Telegrams
Format: Byte Nr. Designation Sign HEX Code Start sign Supervision 1) Local time (displayed by the clock) not used Bytes 4 – 9 and 11 – 17 same as standard telegram (IF482) (chapter 7.1). © MOBATIME 11 / 20 800163.10... -
Page 12: Telegram With Offset To Utc And Season Data (Su - Wi)
9/10: Weekday 7 -> Sunday 21/22: see 9/10 11..14: Hex 0078 = 120 -> 120 min. of day -> 02.00 23..26: Hex 00B4 = 180 min. -> 03.00 27..31: Offset to UTC 60 min. © MOBATIME 12 / 20 800163.10... -
Page 13: Quartz Movement Qu 192
Should the MEZ-time zone not be required, send season telegram twice. Transmit UTC-time with telegram every second until the hands start moving. The serial connection can now be interrupted, as the movement continues to run on its own, precise quartz. © MOBATIME 13 / 20 800163.10... -
Page 14: Starting-Up And Synchronization By Pc
(based on PC time). If the PC is correctly connected with the IF 494 and this is plugged into the QU 192(t), the clock starts running to the correct time after a few seconds. © MOBATIME 14 / 20 800163.10... -
Page 15: Starting-Up And Synchronization By Palm
If the serial interface of the Palm is correctly connected to the IF 494 (please pay attention to the Palm documentation) and this is plugged to the QU 192(t), the clock starts running to Fig. 14 the correct time after a few seconds. © MOBATIME 15 / 20 800163.10... -
Page 16: Detailed Function Description
At each minute step an optic check of the hands position follows. If the 12 o’clock position will be identified by the clock and the internal time base is not on 12 o’clock, the hands will automatically be reset to the correct position in fast-running. The daylight saving time changeover follows automatically. © MOBATIME 16 / 20 800163.10... -
Page 17: Change Of Time Source
BU 192: After 7 days without radio reception hands run on reference position. Check LED on IF 494 - Check plug and connection to IF 494 - Check emitting unit to its functionality © MOBATIME 17 / 20 800163.10... -
Page 18: Connections
2: TD + Connection to serial interface RS422 with external power supply 1: TD - 2: TD + Connection to serial interface with external 3: +6...12V 2: GND galvanic separated power source (6 – 12VDC) © MOBATIME 18 / 20 800163.10... -
Page 19: Technical Data
RS 232 or RS 422 TIMESET Kit: Timeset Utilities for IF 494 for programming of PC Software: 'MobaSrc.exe' 201420 the time and season tables with QU 192 (BU 192). Palm Software: '201247 Palm SW for QU192.prc' © MOBATIME 19 / 20 800163.10... - Page 20 19 ch. du Champ-des-Filles, CH-1228 Plan-les-Ouates Tel. +41 34 432 46 46 / Fax +41 34 432 46 99 Tel. +41 22 884 96 11 / Fax + 41 22 884 96 90 moserbaer@mobatime.com / www.mobatime.com export@mobatime.com / www.mobatime.com SALES SWITZERLAND...
