- Page 1 DA-816 USER GUIDE Version 1.0 November 2015 1266 Park Road Chanhassen, MN 55317 952-401-7700 support@digitalaudio.com www.digitalaudio.com...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. CONTACT DIGITAL AUDIO LABS FOR SERVICING. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated and/or potentially dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. -
Page 3: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ....................II IMPORTANT SAFETY INSTRUCTIONS ............II CARE .......................II DIGITAL AUDIO LABS LIMITED WARRANTY ............1 REPAIR POLICY ....................1 WARRANTY SERVICE ..................1 CONTENTS OF BOX ....................2 INTRODUCTION ......................2 ANATOMY OF THE DA-816 ..................3 SETUP DIAGRAMS ......................4 CONNECTING THE DA-816 TO THE MIX-16 AND MIX-32 ......4 CONNECTING TWO DA-816 UNITS TO THE MIX-32 .......4... -
Page 4: Digital Audio Labs Limited Warranty
Digital Audio Labs warrants their products against defects in material and workmanship for a period of two years from date of purchase. During this period, Digital Audio Labs will, at its option, repair the defective unit or replace it with a new or rebuilt one. -
Page 5: Contents Of Box
• 16 balanced TRS outputs in stereo pairs • Easy setup from CS-DUO personal mixer • Front panel LED indicators • Option card slot • High quality audio conversion • USB connector for firmware updates • External 12VDC power supply LIVEMIX DA-816... -
Page 6: Anatomy Of The Da-816
7. USB Port: The USB port allows the firmware of the DA-816 to be updated through connection to a Windows PC. 8. TRS Outputs: 16 balanced TRS connections in eight stereo pairs for connecting to external devices like wireless in-ear transmitters, powered monitors, snakes, etc. LIVEMIX DA-816... -
Page 7: Setup Diagrams

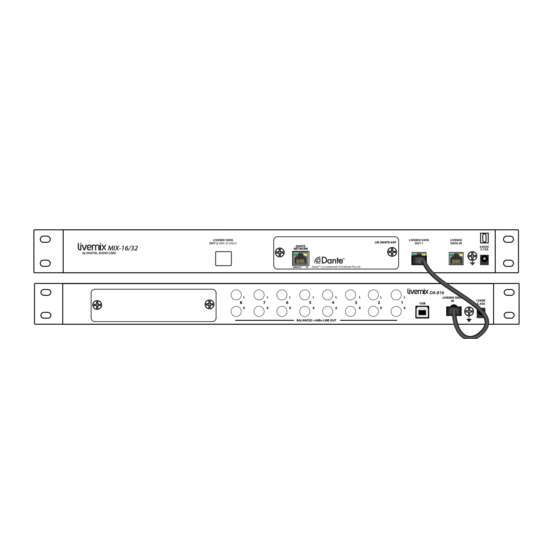

The DA-816 is designed to receive audio from the MIX-16 or MIX-32. Direct connection from a Livemix AD-24 (analog input box) to a DA-816 is not supported. WIRELESS TRANSMITTER 2 WIRELESS TRANSMITTER 1 DA-816 LIVEMIX DATA 12VDC 3.33A BALANCED +4dBu LINE OUT DA-816 LIVEMIX DATA 12VDC 3.33A BALANCED +4dBu LINE OUT LIVEMIX DA-816... -
Page 8: Setup Diagrams
12VDC 3.33A BALANCED +4dBu LINE OUT SETUP DIAGRAMS DA-816 LIVEMIX DATA 12VDC 3.33A CONNECTING THE DA-816 TO EXTERNAL DEVICES BALANCED +4dBu LINE OUT WIRELESS TRANSMITTER 2 WIRELESS TRANSMITTER 1 DA-816 LIVEMIX DATA 12VDC 3.33A BALANCED +4dBu LINE OUT LIVEMIX DA-816... -
Page 9: Setup And Operation
TRS cables from the desired output to the external CS-DUO to BALANCED MONO device. mode after assigning the mixes. 2. Use the CS-DUO to assign mixes to the outputs. This will send the same mono signal out of both TRS jacks for the assigned output. LIVEMIX DA-816... -
Page 10: Assigning A Mix With The Cs-Duo
4. You will now see the assignment in the DA-816 Output screen. If you are using two DA-816’s, you will be able to select the outputs on the first or second DA-816. The selected DA-816 will have a white border (image 3). image 3 LIVEMIX DA-816... - Page 11 • Quickly ensure musicians are given the correct wireless bodypacks and are assigned to the correct CS-DUO’s on stage. • Test which device is connected to the DA-816 outputs. • Verify proper connection from DA-816 to external devices. LIVEMIX DA-816...
-
Page 12: Livemix Support
LIVEMIX SUPPORT Phone Support: 952-401-7700 Toll Free: 844-DAL-INFO Email Support: support@digitalaudio.com Website: www.digitalaudio.com/support DIGITAL AUDIO LABS 1266 Park Rd Chanhassen, MN 55317 TECHNICAL SPECIFICATIONS DA-816 SPECIFICATIONS THD+N .0019% S/N Ratio 104 dB Full Scale Output +4dBu / 19dB peak Output Impedance 300Ω... - Page 13 ® & © 2014-2015 Digital Audio Labs. Audinate®, the Audinate logo and Dante are trademarks of Audinate Pty Ltd. Livemix is a registered trademark of Digital Audio Labs. Patents pending.
