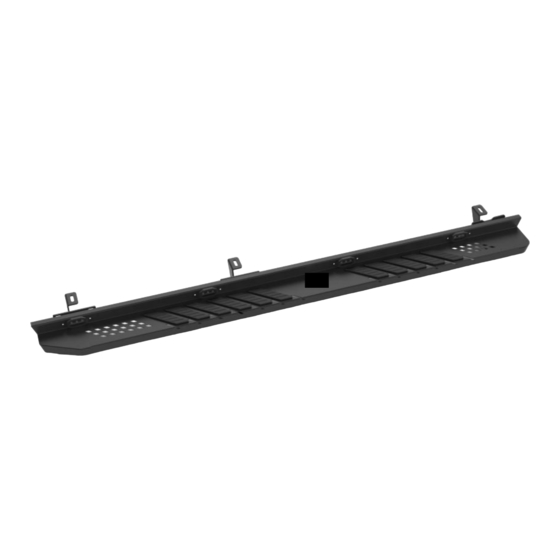

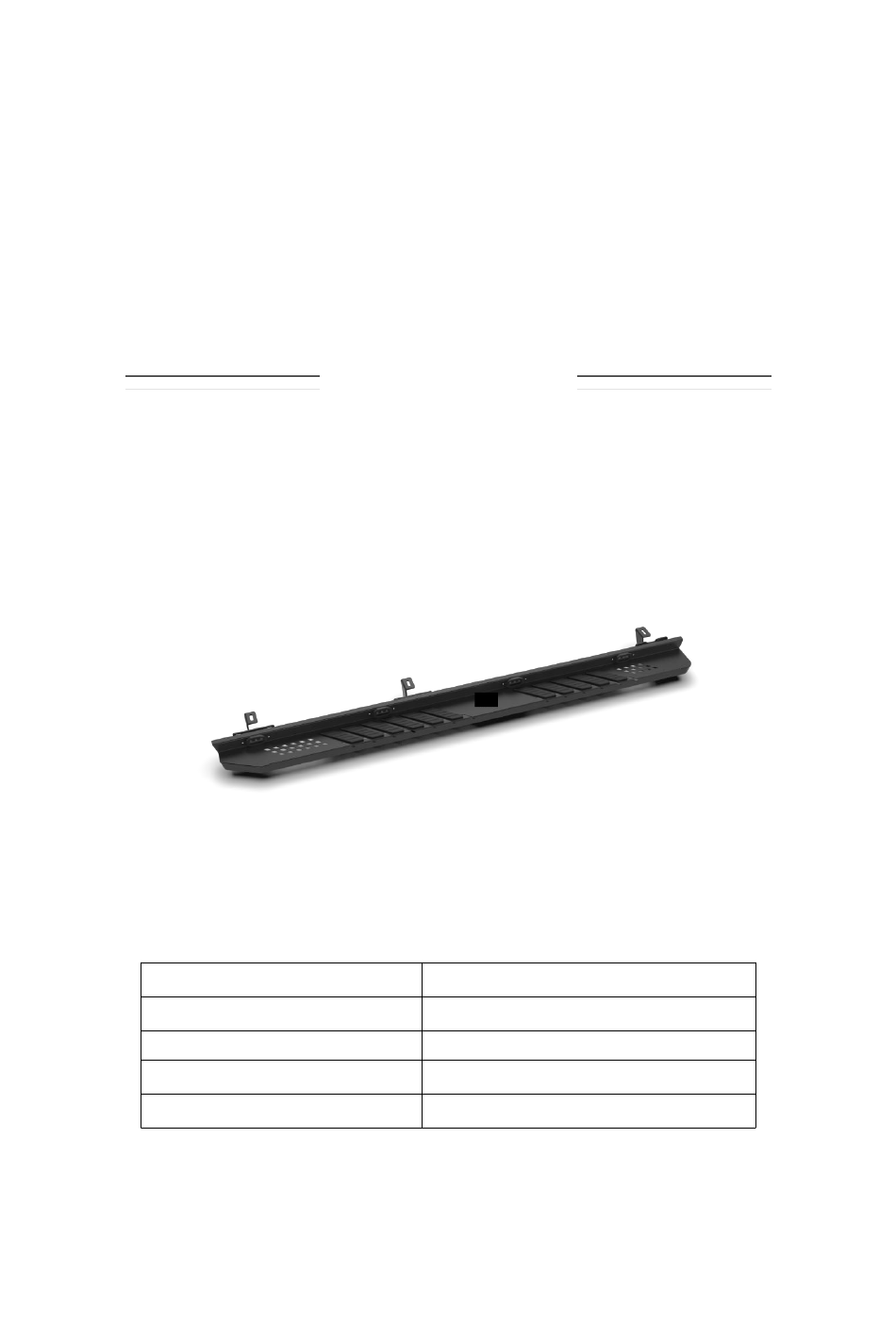

- Page 1 SIDE STEP User Manual 2019-2023 Jeep Gladiator 4 Door Model: NJT02C103 Material: Q235A Product Dimensions: 82.6 x 6.3 x 3.5 inch Package Dimensions: 85.4 x 10.6 x 9.4 inch Product Weight: 68.67 lbs...
- Page 2 ※Thank you for purchasing the SIDE STEP. Please read this manual carefully and keep it properly if you need to refer to it afterward. If you need any support or assistance, please contact us with your product model number and order number, and our support team will help you solve problems.
-
Page 3: Required Tools
REQUIRED TOOLS Socket Ratchet Wrench Scissors Masking tape Safety Glasses Parts Information Parts NO. Parts Name Size Line Graph Color Side Step Black Left/Right Bracket Black Left/Right Support Black Bracket 1 Left/Right Support Black Bracket 2 Dacro Hex Bolts M8x25-8.8 Black Dacro Spring Washer... -
Page 4: Installation Instructions
Installation Instructions ※Note: This installation manual takes a single side as a sample, please repeat the steps for the other side. Step 1: Open the carton and take out the parts. Check whether the number of components is complete. Step 2: Install the bracket and support bracket. ①Left ②Left ③B22... - Page 5 Step 3: Remove the original side skirt and clean the surface of the rocker panel to ensure it is free of dust, dirt, and debris. Front of the car Step 4: Install the brackets. ①Right ②Right ③B22 ④W16 ⑤W19 ⑥N22 Front of the car Mounting Holes...
- Page 6 ② ① ①...
- Page 7 ②③④⑤ x2 ① ②③④ Step 5: Install the Side Step. ① ②B22 ③W16 ④W19 ⑤N22 ① bracket...
- Page 8 bracket ① ① ② ③ ④ ④ ⑤ bracket Step 6: Adjust the balance of the Side Step and the car side, and tighten the corresponding bolts. Step 7: Adjust the balance of the pedal to the ground and tighten the corresponding bolts.
