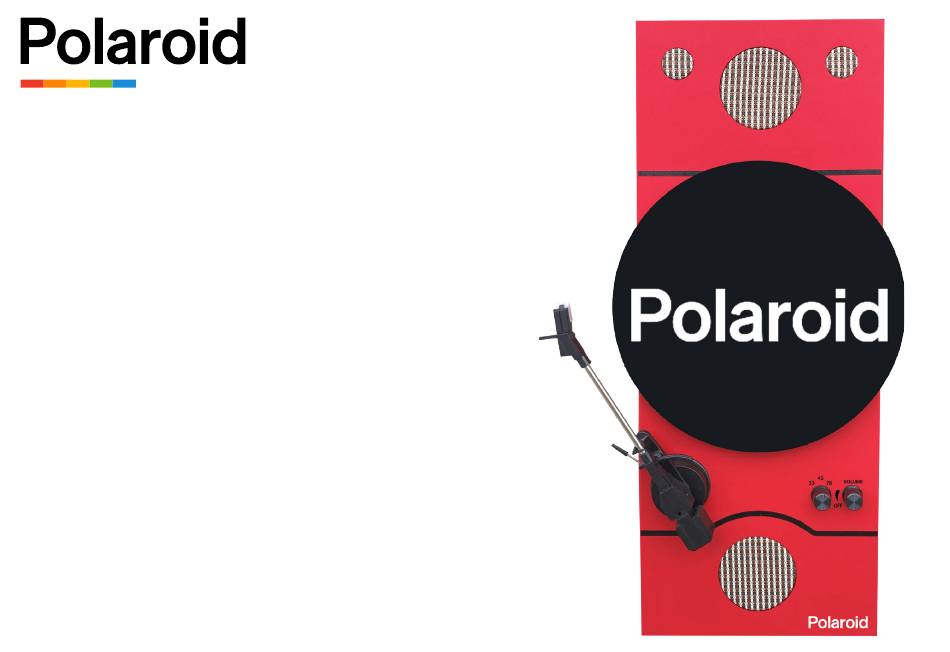

- Page 1 PL3266TB Wall Mounted Turntable User Manual...
-
Page 2: Welcome
Welcome to your experience with Polaroid products. All Polaroid products we bring to you are manufactured to the highest standards of performance and safety. As part of our philosophy of customer service and satisfaction, your purchase is backed by a comprehensive 1 Year Warranty. -
Page 3: Table Of Contents
Contents Welcome Contents Unpack And Prepare Controls and Connections Installation Operation Bluetooth ® Troubleshooting Specifications Compliance and Responsible Disposal... -
Page 4: Unpack And Prepare
Unpack And Prepare What's in the box Before setting up your new Turntable, check you have everything: A. Wall Mounted Turntable B. Power Adaptor C. USB Cable D. Magnetic Record Lock E. Driver CD F. Protective Cover G. Warranty Certificate H. - Page 5 Important Tips • Place the turntable away from any source that may generate heat or vibrations. • Make sure there is enough space around the turntable for airflow. Leave at least 10cm clearance around the product. • Unplug the turntable before cleaning it. •...
- Page 6 Before first use • Unpack the product but keep all packaging materials until you have made sure your new product is undamaged and in good working order. Plastic wrapping can be a suffocation hazard for babies and young children, so ensure all packaging materials are out of their reach.
- Page 7 Connect to power Make sure the turntable is switched off at the power outlet until you have finished connecting your cables. • Connect the DC plug into the DC IN power jack of the turntable. • Plug in the adaptor into the AC power outlet. Don't forget to plug in the turntable to the power outlet.
-
Page 8: Controls And Connections
Controls and Connections Product Overview Speakers 2. Magnetic record lock 3. Turntable 4. Speed control knob 5. On/off/volume knob 6. Stylus cartridge Tonearm 8. Tonearm lock 9. DC IN power jack 10. Line Out Jack 11. AUX IN jack 12. PC port 10 11 8 | CONTROLS AND CONNECTIONS... - Page 9 Installation Kit (Assembly Hardware) The illustration below shows the contents of the installation pack. These are the parts that you will need to wall mount the turntable. Some parts are not shown at the same scale. Screws (2) 2. Wall mounting bracket 3.
-
Page 10: Installation
Installation Make sure you read and understand all instructions. Handle and use all materials strictly according to the instructions. If you do not understand these directions, or have any questions in relation to the safety of the installation, we recommend you contact a qualified professional. Note: This turntable is for indoor home use only. - Page 11 Preparation (for a Brick or Concrete Wall) • Mark 2 holes in the locations as shown on the right. • On the marked holes, pre-drill holes of 6mm diameter and 30mm depth into the concrete or brick wall. • Wedge the plastic anchors into the holes, gently tap each 18 mm anchor with a hammer until they are flush with the concrete or brick wall.
- Page 12 Preparation (for a Wood Stud Wall) • Use a stud detector to locate the centre of the framing studs. • Mark 2 holes in the locations as shown on the right. • On the marked holes, install the screw into the wood stud wall. •...
-
Page 13: Operation
Operation Power On and Mode selection • Rotate the On/off/volume knob to turn the turntable on. The turntable will automatically be on Bluetooth ® mode by default. • Once you place the tonearm on the vinyl, the turntable will switch to vinyl mode and Bluetooth mode will ®... - Page 14 1. Connect to an External Amplifier using the Line Out Port Use a RCA audio cable (not included) to connect to the Line Out port (L/R) at the side of the turntable, and then connect to the your external amplifier. Note that the internal speaker and the Line Out port will have output at the same time.
- Page 15 PC Recording Installing the Software Using the included CD software and cable, you can connect the turntable to your computer, so that you may record your vinyl records onto the computer. • Insert the enclosed software CD into your computer. •...
- Page 16 4. Click on the Microphone list and select ‘Microphone Array (USB PnP Audio Device)’. 5. Play the song that you want to record, then click the record button to start recording. 6. Click the Stop button to stop recording. 7. Go to menu ‘File – Export – Export as WAV (or MP3)’ and then choose the location where you want the file to be saved.
- Page 17 Tips to better performance • Do not touch the stylus tip with your fingers; avoid bumping the stylus on the turntable mat or on the edge of the record. • Clean the stylus tip frequently, using a soft brush with a back-to-front motion only. •...
- Page 18 Replacing the stylus Push the arm lock to Take off the cap of the Separate the cartridge release the tone arm. cartridge to expose the from the cartridge needle. holder by loosening the locker. Make sure the audio- Carefully insert the audio- Gently pull the audio- lines are not touching line connector to the new...
-
Page 19: Bluetooth
If a mobile phone on which you are playing music • Select the speaker name: 'PL3266TB' from the list of receives a call, the music will be interrupted. The phone call audio however is not played via the found devices. -
Page 20: Troubleshooting
Troubleshooting If you have problems with the turntable, check below for advice. If you don't find a solution here, contact After Sales Support on 1300 886 649. Problem Solution • Ensure that the power adaptor is properly connected. No power •... -
Page 21: Specifications
Specifications Power Adaptor Input AC 100-240V, 50/60Hz, 0.3A Max Power Adaptor Output DC 5V/1A Dimensions (Turntable) 235 x 600 x 140mm (w x h x d) Supports playback speed Speed 33 / 45 / 78 RPM Vinyl Records 7” = 17.7cm Record size support 10”... -
Page 22: Compliance And Responsible Disposal
Compliance and Responsible Disposal Compliance Packaging The packaging of your product has been This product complies with the Australian Safety selected from environmentally friendly Standard AS/NZS 62368.1 to ensure the safety of materials and can usually be recycled. Please ensure the product. - Page 23 Notes...
- Page 24 1300 886 649 Polaroid, Polaroid Color Spectrum and Polaroid Classic Border Logo are trademarks of PLR IP Holdings, LLC, used under license . PLR IP Holdings, LLC does not manufacture this product or provide any Manufacturer’s Warranty or support.
