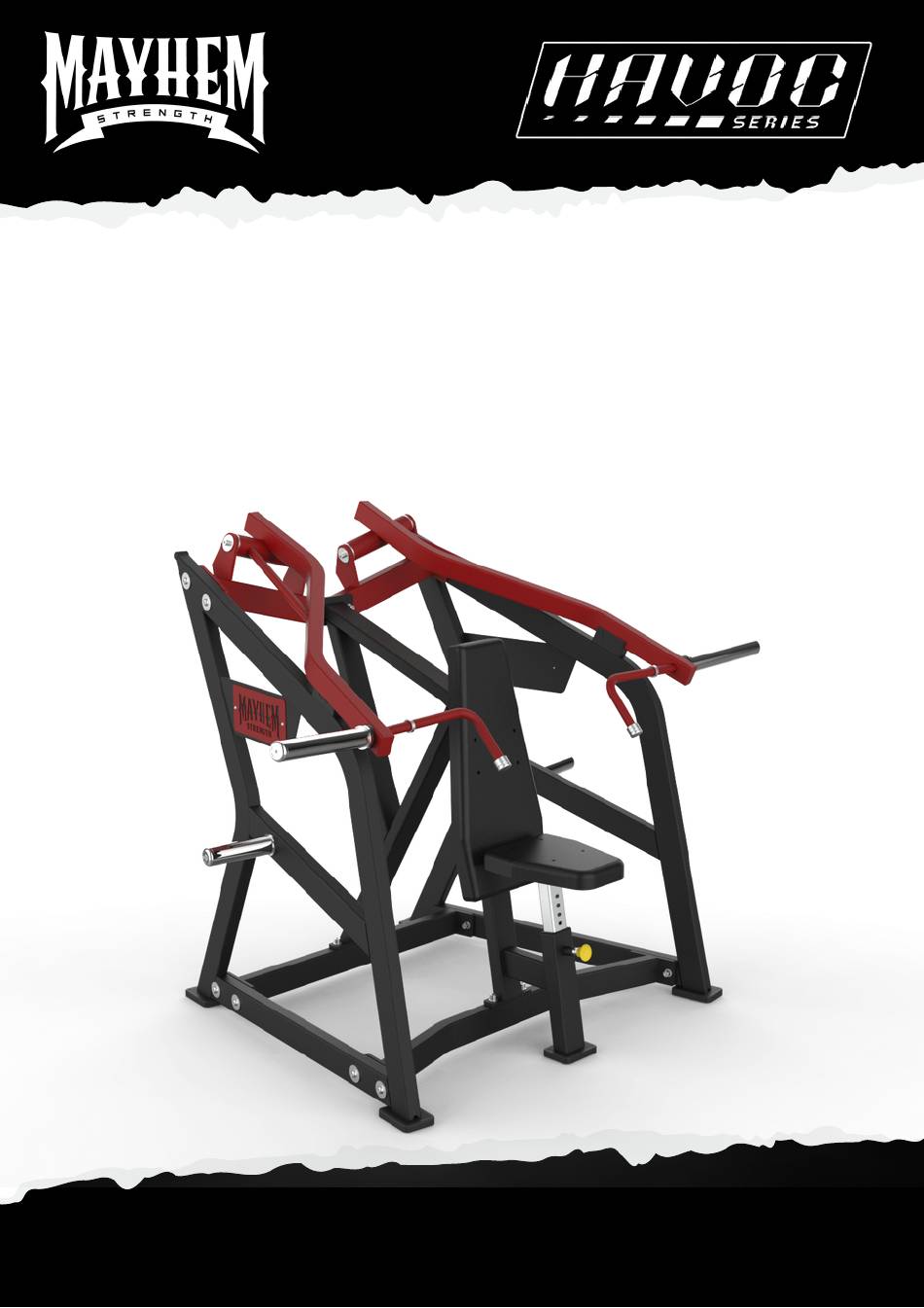

- Page 1 Shoulder Press Plate Loaded ASSEMBLY INSTRUCTIONS Shoulder Press...
- Page 2 Please take the time to carefully read the instruction manual before starting the process of assembling your machine. If you have any inquiries or complications, please call us at 662-GYM-BROS, or email us at info@gymbrofitness.com. Ensure to tighten all nuts and bolts, lubricate any sliding parts, bearings, and moving mechanisms.
- Page 3 PARTS/HARDWARE LIST Part Number Part Description Quantity Main Frame Connection Frame (1) Connection Frame (2) Side Frame 1 pair Arm Support Frame 1 pair Cushion Frame Footpads Hexagon Socket Flat Head Screws M12x70 Flat Pad (1) Flat Pad (2) Self Locking Nut M12 Hexagon Socket Head Screws M12x30 Square End Cap Sleeve Pad...
- Page 4 PARTS/HARDWARE LIST Continued Part Number Part Description Quantity Handle End Cap Handle Cover Handle Limit Ring Flat Pad Arm Axis Hexagon Socket Head Screws M10x35 Dampening Piece Hexagon Socket Head Screws M12x20 Sleeve End Cap Sleeve Rod Sleeve Tube Back Pad Hexagon Socket Head Screws M8x30 Flat Pad Cushion Pin...
- Page 5 Frame Assembly Shoulder Press...
- Page 6 Force Arm Assembly Shoulder Press...
- Page 7 Force Arm Installation Shoulder Press...
- Page 8 Cushion Installation Shoulder Press...

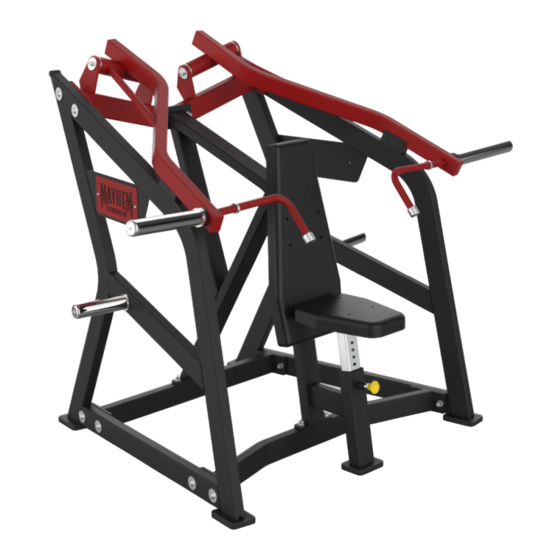

- Page 9 Final Product Shoulder Press...
- Page 10 Have a question about assembly? Please contact a Gym Bro Fitness Team Member! Hours of Operation: Monday–Friday 9:00am - 5:00pm (PST) Saturday 9:00am - 3:00pm (PST) Sunday CLOSED Phone: (662)GYM-BROS Email: info@gymbrofitness.com Visit Our Website: www.gymbrofitness.com Shoulder Press...
