Instruction manual
Keycode: 43243990

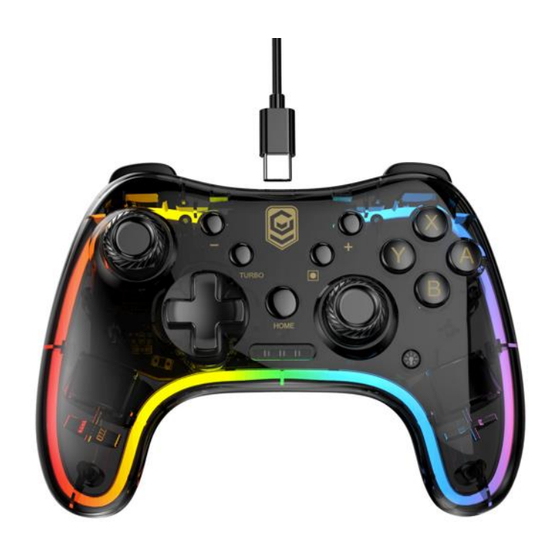

RGB Wired Controller
Please read all the information carefully before you use the product and keep the manual for
future reference.

Specification

Product size: 152*115*58mm
Product weight: 190g
Power supply: Cable connection to console
5V⎓500mA (Max)
Input:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 43243990 and is the answer not in the manual?

Questions and answers

Summary of Contents for anko 43243990

  • Page 1 Instruction manual Keycode: 43243990 RGB Wired Controller Please read all the information carefully before you use the product and keep the manual for future reference. Specification Product size: 152*115*58mm Product weight: 190g Power supply: Cable connection to console 5V⎓500mA (Max)
  • Page 2 Product Overview Switch Gamepad Mode--Connect for Nintendo Switch Console 1. Press the POWER to wake-up the Nintendo Switch gaming console. 2. Connect the game controller with type-C cable to USB port of Nintendo Switch gaming console charging dock, the LED1,2,3,4 flash together for paring. 3.
  • Page 3 X-Input Mode--Connect for Window 7/8/10...
  • Page 4 Connect the gamepad with type-C cable to USB port of PC computer, after the system recognize the game controller, the gamepad will vibration for 1 second to show successful connect. The LED1,2,3 will be long on. The mode is in X-Input mode. D-Input Mode Long press the HOME button with 3-5 seconds, the gamepad will transfer to D-Input mode.
  • Page 5 Connect the gamepad with type-C cable to USB port of Android media box, android TV set, after the system recognized the game controller, the gamepad will vibration for 1 second to show successful connect. The LED2 will be long on. The mode is in Android gamepad mode. Ps3 Controller Mode Connect the gamepad with type-C cable to the USB port of Ps3 console, after the system recognized the game controller, the gamepad will vibration for 1 second to show successful...
  • Page 6 1).Press TURBO button + direction UP button to adjust to the fastest TURBO speed. 2).Press TURBO button + direction RIGHT button to adjust to the middle TURBO speed. 3).Press TURBO button + direction DOWN button to adjust to the slow TURBO speed. Adjust Vibration Intensity (Only available for Nintendo Switch Controller Mode) This controller have 4 levels of vibration intensity and Strongest/ Moderate/ Weakest/None...
  • Page 7 this product if it becomes defective within the warranty period. Kmart will bear the reasonable expense of claiming the warranty. This warranty will no longer apply where the defect is a result of alteration, accident, misuse, abuse or neglect. Please retain your receipt as proof of purchase and contact our Customer Service Centre on 1800 124 125 (Australia) or 0800 945 995 (New Zealand) or alternatively, via Customer Help at Kmart.com.au for any difficulties with your product.
