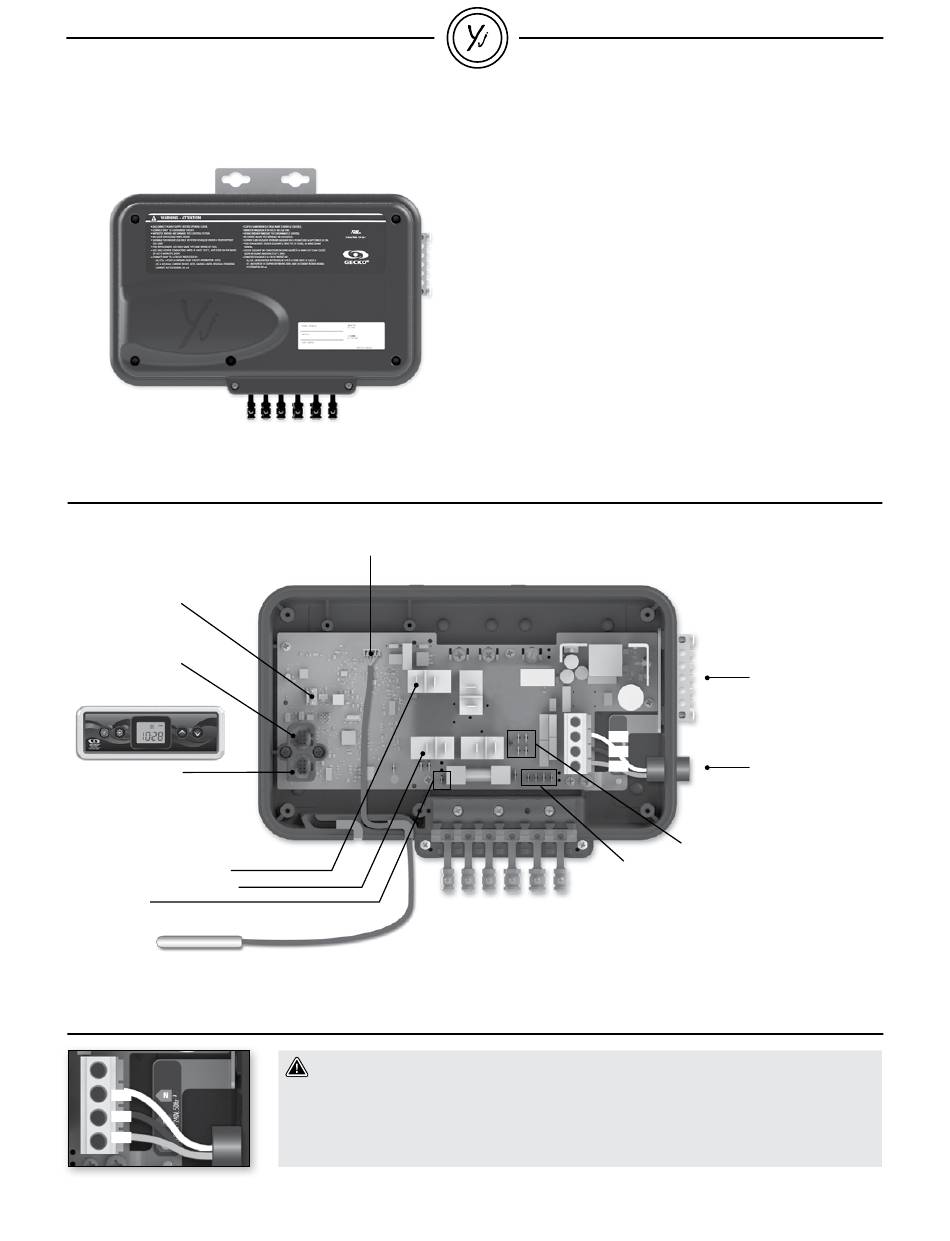

Gecko in.yj-2-re Quick Start Card

1- Connect all outputs & keypads
P33 - Light outputs
(12 V DC)
CO - Communication links
in.touch, in.stik,
Aux keypad in.k120
C1 - Main keypad
connector
Outputs:
in.yj-2-re pack has 2 relay controlled outputs
Out 1 (Heater/pump): K4-P
Out 2 (Ozone/P1L/P2): K6-P
Direct: P25
in.yj-re HL & Regulation probe
9920-401397 (48")
2- Connect the main power
N
L1
G
120 V (3 wires): The in.yj supports
single phase input with up to
32Amp.
Quick Start Card
P40 - Temperature & HL probe
Warning!
All connections must be made by a qualified electrician in accordance with the national electrical code
and any state, provincial or local electrical code in effect at the time of the installation.
This product must always be connected to circuit protected by a Ground Fault Circuit Interrupter (GFCI).
in.yj-2 re
-
™
small package, zero compromise
North American version
This Quick Start Card is intended for users of the
North American version of the in.yj.
N
L1
G
Ground:
connect all Green wires: P27 , P28, P29 or P30
(120V only)
Bonding lugs:
connect redundant
ground cable to heater,
pumps, etc.
Main power
entry connection
Aperture Ø 2.54 cm (1'')
Neutral:
connect all White wires: P18, P19, P20
