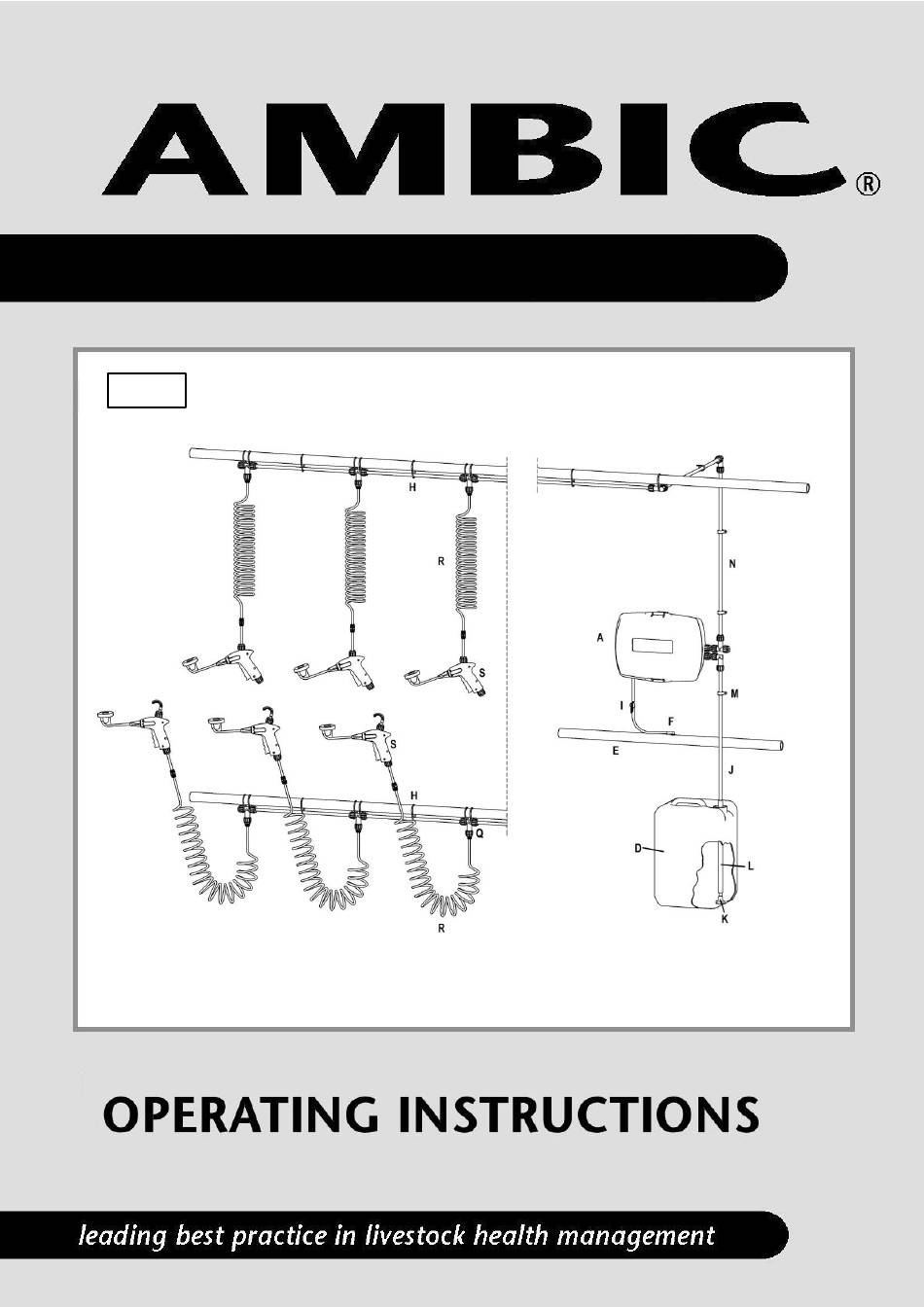

- Page 1 Ambic Equipment Ltd - OptiFlow™ Operating Instructions Flow Opti ™ Fig. 1 OFL7500E v1.2 (03/11/21)
- Page 2 Ambic Equipment Ltd - OptiFlow™ Operating Instructions Fig. 2 Fig. 3 Fig. 5 Fig. 4 OFL7500E v1.2 (03/11/21)
- Page 3 Ambic Equipment Ltd - OptiFlow™ Operating Instructions Fig. 6 Fig. 7 OFL7500E v1.2 (03/11/21)
- Page 4 Ambic Equipment Ltd - OptiFlow™ Operating Instructions Fig. 8 Fig. 9 OFL7500E v1.2 (03/11/21)
-
Page 5: Installation
Ambic Equipment Ltd - OptiFlow™ Operating Instructions SAFETY The OptiFlow™ Teat Dipping System is designed exclusively for use in milking installations. Any application outside the use described in this operating manual will be taken to be not in accordance with the intended purpose. -
Page 6: Initial Start-Up
Ambic Equipment Ltd - OptiFlow™ Operating Instructions PRESSURE LINE (Fig. 1, 2, 4) The Pressure Line (N) must exit the Outlet Tee (C) vertically as shown. Use clips (M) to secure the tubing against the wall. Route the tubing into the parlour. Cold conditions will slow the flow of chemical so select a route which is protected from frost. -
Page 7: Maintenance
Ambic Equipment Ltd - OptiFlow™ Operating Instructions MAINTENANCE (Fig. 6) Before carrying out any maintenance on the system ensure: ➢ You are wearing appropriate PPE, including eye and skin protection. ➢ The Vacuum Tap (I) is closed. ➢ System pressure is released by depressing an Applicator Trigger (Fig. 5 U) until flow slows to a minimum. -
Page 8: Technical Data
Ambic Equipment Ltd - OptiFlow™ Operating Instructions 5. TECHNICAL DATA Power Source: Vacuum: 40-50kPa (12-15 in Hg) Air Consumption: 50 l/min (1.8cfm Atmospheric Air @ 50kPa) Output Pressure: Max: 3.4bar (50psi) @ 46kPa (13.5 in Hg) Pressure Line Length: Max: 25m (80ft) Operating Temperature: Min: 5°C (41°F);... -
Page 9: Troubleshooting
Ambic Equipment Ltd - OptiFlow™ Operating Instructions TROUBLE SHOOTING FAULT CAUSE REMEDY 1. Chemical does NOT fill a) Vacuum pump not switched a) Switch on vacuum pump. dip cup when trigger pressed (or fills very b) Vacuum line not airtight. -
Page 10: Spare Parts
Ambic Equipment Ltd - OptiFlow™ Operating Instructions SPARE PARTS AOFL/6001-V AOFL/2004-V AOFL/4446 ATS/456-V ATS/425 ATS/447 ATS/448 ATS/443 ATS/442 ATS/444 (x3) AJS/2026 ATS/412-NR ATS/413 ALB/410 (6m) ALB/428 (30m) ALB/407 ALB/408 (x2) ALB/409 (x6) -10- OFL7500E v1.2 (03/11/21) - Page 11 Ambic Equipment Ltd - OptiFlow™ Operating Instructions ALB/423 (x2) ALB/434 (x2) ALB/429 (x2) ALB/437 (x4) ATS/411 (x10) AOFL/14-BL AOFL/014E-BL AOD/4004-BL AOD/4004E-BL AOFL/014-TL AOFL/014E-TL AOD/4004-TL AOD/4004E-TL AOD/4006 AOD/4006E AOD/506-0.6 (x3) AOD/506-0.8 (x3) -11- OFL7500E v1.2 (03/11/21)
- Page 12 Ambic Equipment Ltd - OptiFlow™ Operating Instructions Ambic Equipment Limited 1 Parkside, Avenue Two, Station Lane, Witney, Oxfordshire, OX28 4YF. England Tel: +44 (0)1993 776555 Fax: +44 (0)1993 779039 www.ambic.co.uk -12- OFL7500E v1.2 (03/11/21)
