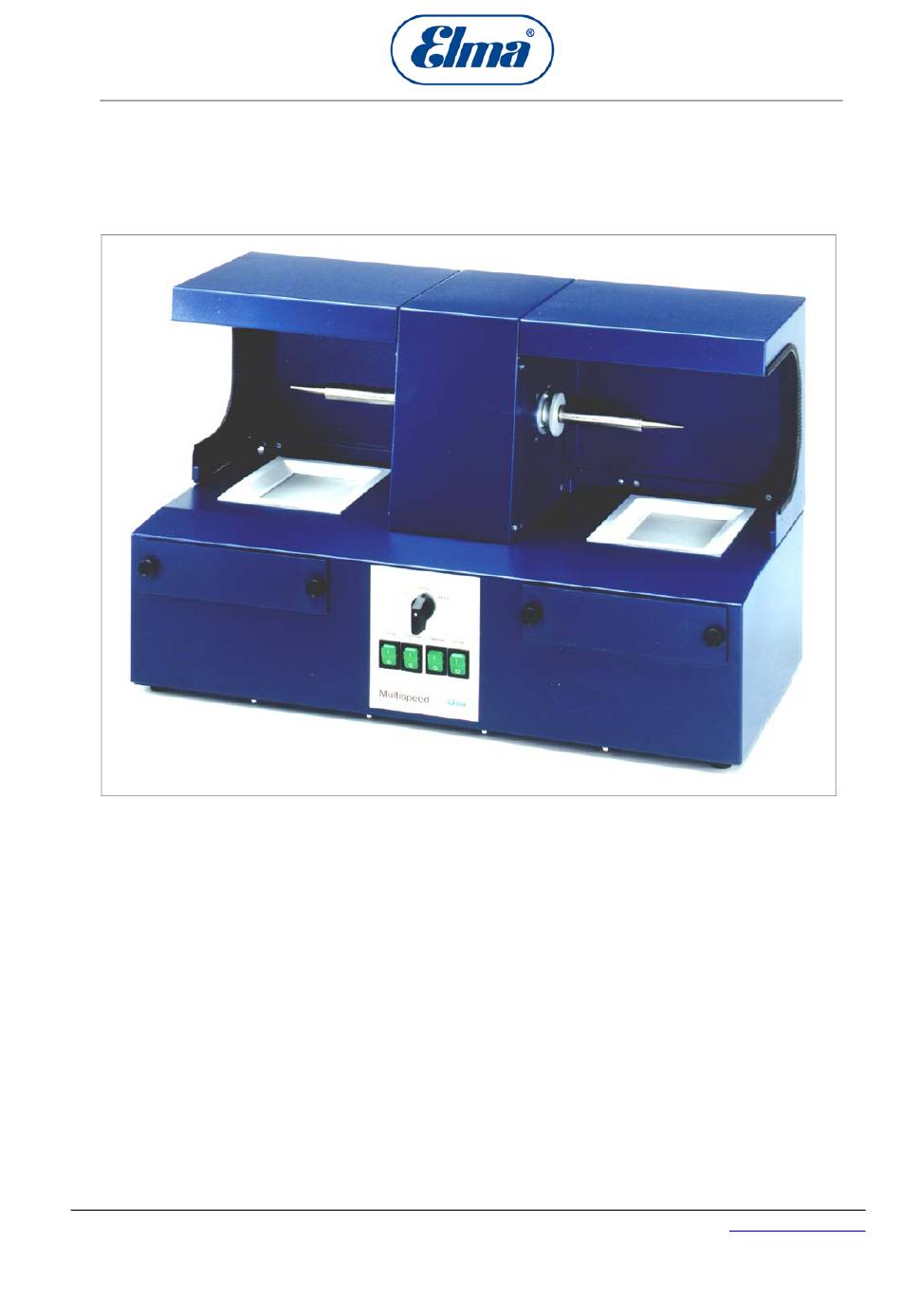

- Page 1 Operating Instructions Multispeed Polishing unit english Elma Schmidbauer GmbH Gottlieb-Daimler-Str. 17 D-78224 Singen Phone +49 ( )7731 / 882-0 Fax +49 ( )7731 / 882-266 info@elma-ultrasonic.com www.elma-ultrasonic.com document ref. 104 6937...
- Page 2 Designation of the elements ........4 Technical details ............5 Putting into Operations ..........5 Upkeep of the Machine ..........6 Accessory Parts/ ............7 Putting out of action and waste disposal ....7 Manufacturer's contact address ......... 8 BA_Multispeed_EN_Vers.01.2014 © Elma Schmidbauer GmbH...
- Page 3 Important safety warnings To be read before initial operation! Intended use This polishing machine Elma Polini is intended only for polishing metal items. Transport damages Check the unit and mains cable for transport damages. In case of visible damages do not put the unit into operation.
- Page 4 2800 rpm. The protective covers can be folded up for polishing large pieces. The polishing area is lit up. CE conformity The present Elma polishing unit complies with the relevant CE criteria. The declaration of conformity is available from the manufacturer.
- Page 5 Once the polishing tools are mounted, you may begin with the polishing. If larger workpieces are polished, the cover over the polishing area can be tipped back or removed. See the section on MAINTENANCE. © Elma Schmidbauer GmbH BA_Multispeed_EN_Vers.01.2014...
- Page 6 Remove machine’s plug from mains - Unscrew lamp protection, tubular lamps (Plexiglas) - remove defective tubular lamp from socket and replace it by a new one. Screw on lamp protection. The polishing engine does not require any attendance Motor BA_Multispeed_EN_Vers.01.2014 © Elma Schmidbauer GmbH...
- Page 7 3 80 01 00 017 Polishing Tip left order number 3 80 03 00 005 Putting out of action and waste disposal The unit can be taken to metal and electronics recycling stations or returned to the manufacturer. © Elma Schmidbauer GmbH BA_Multispeed_EN_Vers.01.2014...
- Page 8 Do you have any queries or suggestions concerning the present unit, its operation or the Operating Instructions? Please contact us, we will be glad to assist: Technical Support Phone +49 (0) 7731 / 882-280 +49 (0) 7731 / 882-253 support@elma-ultrasonic.com BA_Multispeed_EN_Vers.01.2014 © Elma Schmidbauer GmbH...
