rm-suttner easyclean365+ Operating Instructions

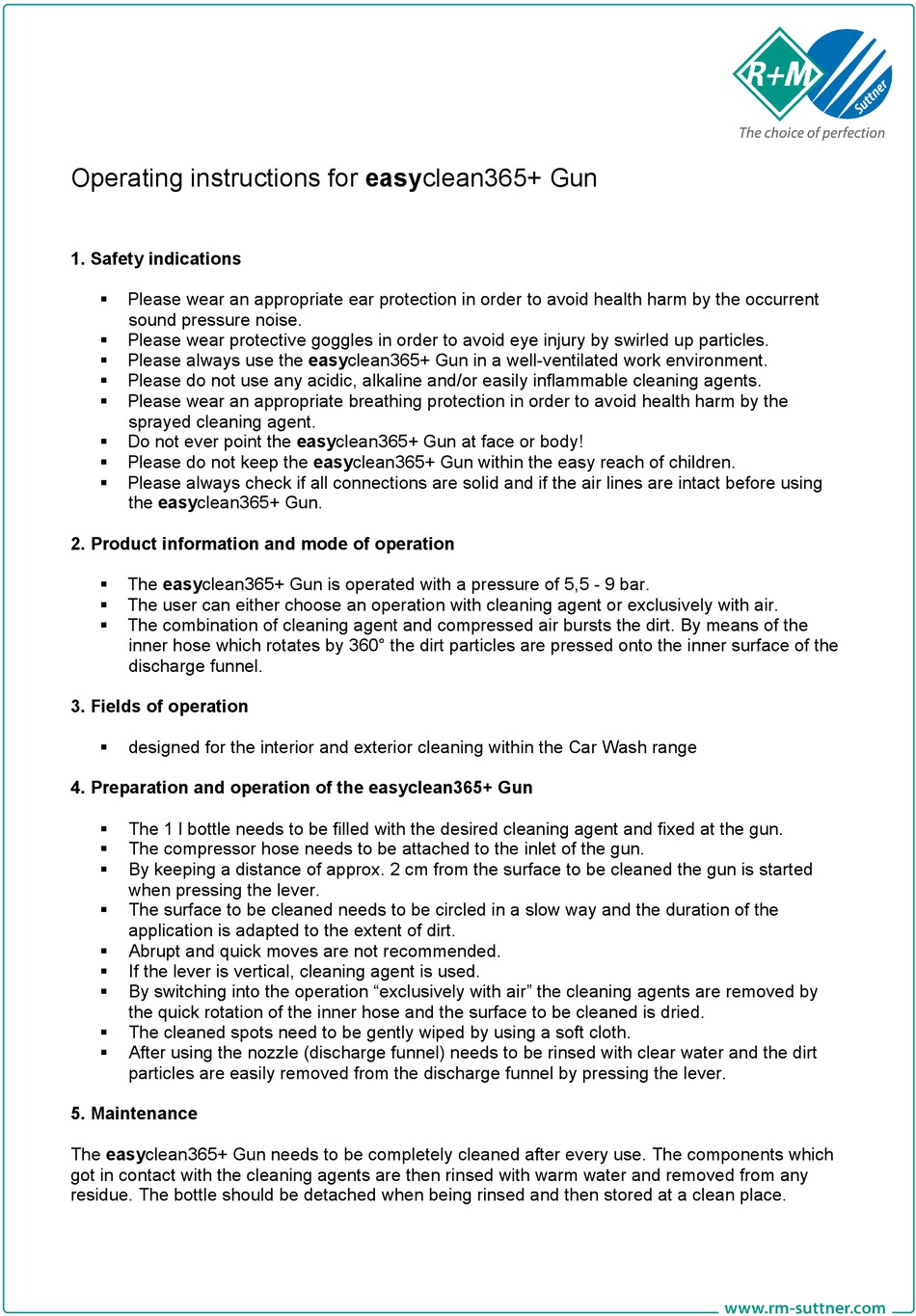

Operating instructions for easyclean365+ Gun

1. Safety indications

 Please wear an appropriate ear protection in order to avoid health harm by the occurrent
sound pressure noise.
 Please wear protective goggles in order to avoid eye injury by swirled up particles.
 Please always use the easyclean365+ Gun in a well-ventilated work environment.
 Please do not use any acidic, alkaline and/or easily inflammable cleaning agents.
 Please wear an appropriate breathing protection in order to avoid health harm by the
sprayed cleaning agent.
 Do not ever point the easyclean365+ Gun at face or body!
 Please do not keep the easyclean365+ Gun within the easy reach of children.
 Please always check if all connections are solid and if the air lines are intact before using
the easyclean365+ Gun.

2. Product information and mode of operation

 The easyclean365+ Gun is operated with a pressure of 5,5 - 9 bar.
The user can either choose an operation with cleaning agent or exclusively with air.

 The combination of cleaning agent and compressed air bursts the dirt. By means of the
inner hose which rotates by 360° the dirt particles are pressed onto the inner surface of the
discharge funnel.

3. Fields of operation

 designed for the interior and exterior cleaning within the Car Wash range

4. Preparation and operation of the easyclean365+ Gun

 The 1 l bottle needs to be filled with the desired cleaning agent and fixed at the gun.
 The compressor hose needs to be attached to the inlet of the gun.
 By keeping a distance of approx. 2 cm from the surface to be cleaned the gun is started
when pressing the lever.
 The surface to be cleaned needs to be circled in a slow way and the duration of the
application is adapted to the extent of dirt.
 Abrupt and quick moves are not recommended.
 If the lever is vertical, cleaning agent is used.
 By switching into the operation "exclusively with air" the cleaning agents are removed by
the quick rotation of the inner hose and the surface to be cleaned is dried.
 The cleaned spots need to be gently wiped by using a soft cloth.
 After using the nozzle (discharge funnel) needs to be rinsed with clear water and the dirt
particles are easily removed from the discharge funnel by pressing the lever.

5. Maintenance

The easyclean365+ Gun needs to be completely cleaned after every use. The components which
got in contact with the cleaning agents are then rinsed with warm water and removed from any
residue. The bottle should be detached when being rinsed and then stored at a clean place.
