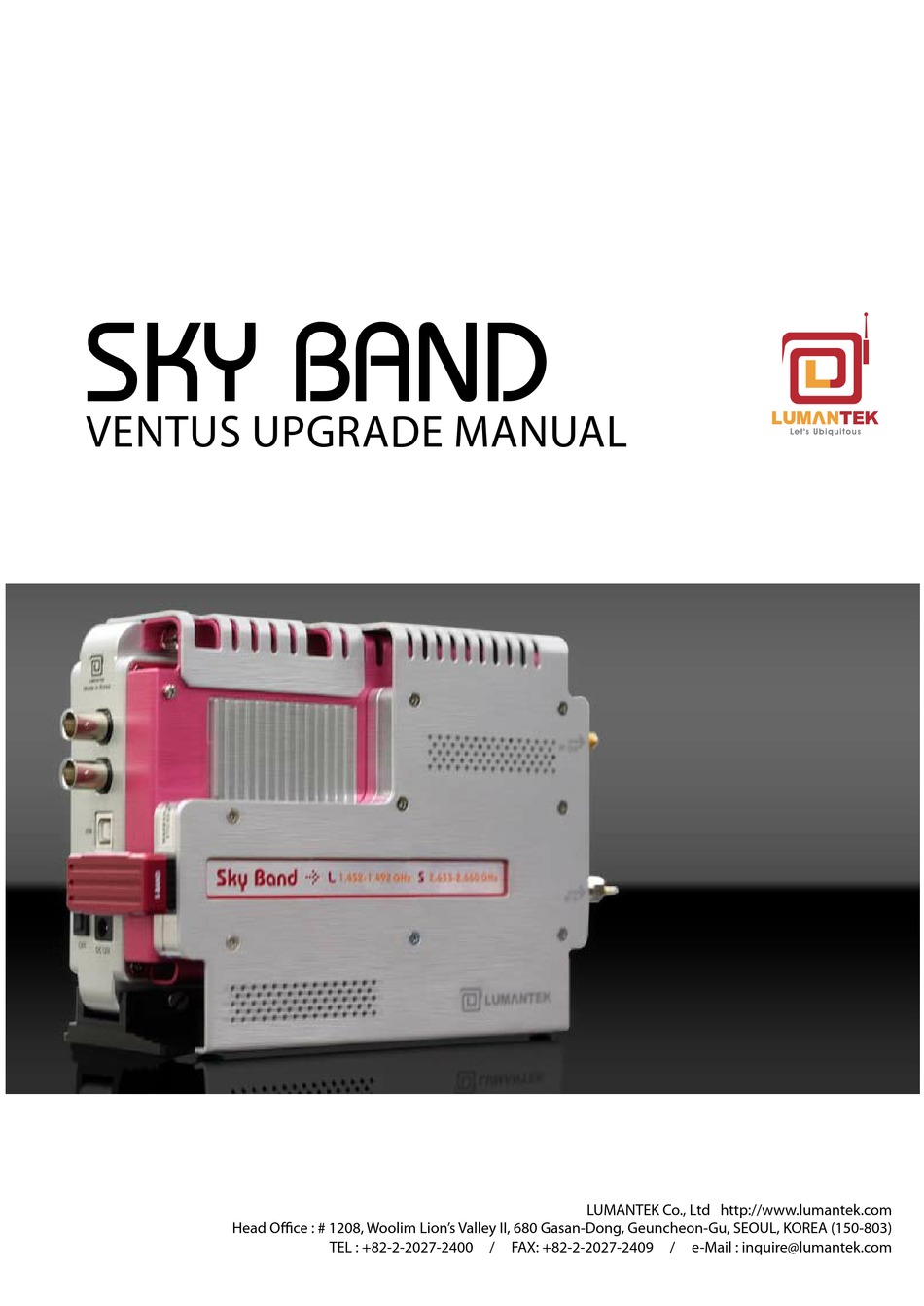

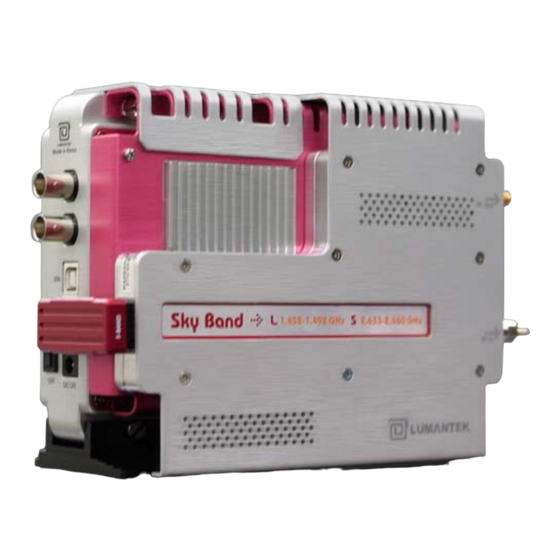

- Page 1 Band VENTUS UPGRADE MANUAL LUMANTEK Co., Ltd http://www.lumantek.com Head Office : # 1208, Woolim Lion’s Valley II, 680 Gasan-Dong, Geuncheon-Gu, SEOUL, KOREA (150-803) TEL : +82-2-2027-2400 FAX: +82-2-2027-2409 e-Mail : inquire@lumantek.com...
-
Page 2: Trademarks And Copyright
Portions of this software are © 1996-2006 LUMANTEK Ltd. All intellectual property rights in such portions of the Software and documentation are owned by LUMANTEK and are protected by United States copyright laws, other applicable copyright laws and international treaty provisions. -
Page 3: Operator Safety Summary
Operator Safety Summary For your protection, please read these safety instructions completely before operating the equipment and keep this manual for future reference. The information in this summary is intended for operators. Carefully observe all warnings, precautions and instructions both on the apparatus and in the operating instructions. Equipment Markings The lighting flash symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltages”... - Page 4 1. Sky Band’s Frequency Range - S Band is (2.633 ~ 2.660GHz), L Band is (1.452 ~ 1.492GHz) Sky Band’s Power Range is from 0 to -100 dBm and Error range is ±1 dBm. * The power range of 50 ~ 870Mhz is 10 ~ -110 dBm.
- Page 5 // 1. introduction 1-2. Connetors Features > Upgrade for Atten-Plus Firmware Update. > VHF/UHF Attenpuls connector, if necessary. > Sky band Firmware Update, if necessary. > Sky band Operator Connector Ventus - usb type of dtV/mobile tV signal generator //...
- Page 6 // 1. introduction 2. HOw tO install sky Band After Updating the Attn-Plus’s Firmware, install the sky band as below. 1. Please unscrew four screws on ventus. Ventus - usb type of dtV/mobile tV signal generator //...
- Page 7 user manual // 2. prdouct description 2. Please dismantle the data cable connection from ventus. Ventus - usb type of dtV/mobile tV signal generator //...
- Page 8 // 2. prdouct description 3. Please attach sky Band as shown below. Ventus - usb type of dtV/mobile tV signal generator //...
- Page 9 user manual // 3. system installation Ventus - usb type of dtV/mobile tV signal generator //...
- Page 10 user manual // 3. system installation Ventus - usb type of dtV/mobile tV signal generator //...
- Page 11 user manual // 3. system installation 4. Please connect the new data cable connection to ventus. Ventus - usb type of dtV/mobile tV signal generator //...
- Page 12 5. sky Band iF input of the output of the existing uses attn-Plus Attn-Plus Sky Band of the RF output to the input of the connection should be as shown below, S Band (2.633 ~ 2.660GHz), L Band (1.452 ~ 1.492GHz) is available.
- Page 13 // 3. system installation 6. if you finished the installation of the sky Band, please lock the screw. You have complited with intallation. Please check that T-pump version must be at least the version 3.0.0. If you have lower Version, Please dowload T-Pump program from >>...
- Page 14 user manual // 3. system installation 6. # 1 attn-Plus Firmware Update method (Require for installing Skyband Module at Attenuator firm Version Lower than 1.2.1.0) If necessary to update Attn-Plus Firmware, remove the existing data connection and connect to the other such as the picture below. The Attn-Plus Firmware Update need to be in the same order as below.
- Page 15 4. When the update is complete, close the window and turn off the power 5. Remove the data connection and re-connect the data cable connection to Ventus. 6. Run the T-pump program. then Go to Help > About - Determine Sky Band version. 7. You have completed the Updates.
- Page 16 # 1208 Woolim lion’s Vally ii, 680 Gasan-DonG, Geumcheon-Gu seoul, south korea 153-830...
