9367-TimeServer-EUROPE
Operation Quick Start Guide V1.0 for
S5/S7-TimeServer - EUROPE
S5/S7-TimeServer - WORLD
This page contains the brief instructions for the S5/S7-TimeServer-devices. Here you will find an overview of
the various components on the front and back, basic hardware installation, initial login information, device
specifications and general safety instructions. It is highly recommended that you familiarize yourself with the
quick start guide before using the device. If you have a CONNECT-CONTROL-device, you will also find a
printed version of the quick start guide in the device packaging or online on the device's product page.
The only difference between the devices is the used built-in LTE modem. The Europe variant can only be used
in Europe, the World variant anywhere in the world.

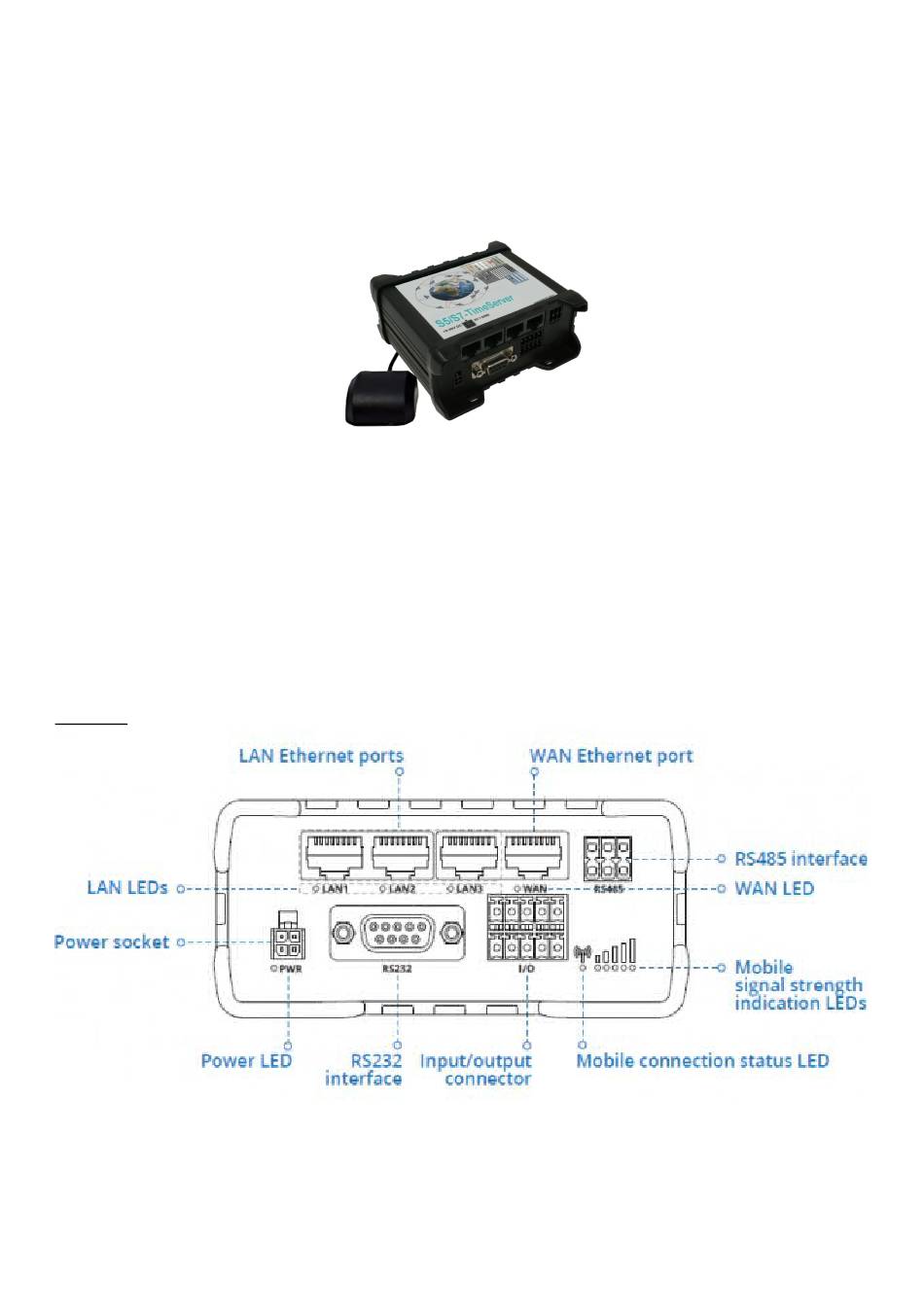

Connections:
Frontside:
Advertisement
Table of Contents
Summary of Contents for TPA S5
- Page 1 S5/S7-TimeServer - EUROPE S5/S7-TimeServer - WORLD This page contains the brief instructions for the S5/S7-TimeServer-devices. Here you will find an overview of the various components on the front and back, basic hardware installation, initial login information, device specifications and general safety instructions. It is highly recommended that you familiarize yourself with the quick start guide before using the device.
- Page 2 Backside: Power connector: Description Wire-color +9 – 30V DC Black Green White Hardware-installation 1.) Attach WiFi and GPS antennas (WLAN antenna only if access is to take place via WLAN ) 2.) Connect the power adapter to the power socket located on the front panel of the device. Then plug the other end of the power adapter into a power outlet.
- Page 3 Computer-configuration (Windows): 1.) Enable the wireless network connection (go to Start → Control Panel → Network and Internet → Network and Sharing Center. In the left panel click the Change adapter settings link. Right click on Wireless Network Connection and select Enable). 2.) Setup wireless network adapter on your computer (right click on Wireless Network Connection and select Properties.
- Page 4 The navigation is done by clicking on the navigation-symbol ( The WLAN parameters and the IP address of the S5 / S7 TimeServer can be adjusted in the configuration menu. The integrated NTP server for network devices can also be switched on and off.
- Page 5 Parameter: name: Name of this connection IP address: IP address of S7-PLC (or S7-LAN-module or S5-LAN++) chanel-type: OP-, PG-, or unspecific connection (depending on which connection is free in the HW-Config of an S7-PLC ) rack number: Rack number of S7-PLC (usually 0)
- Page 6 (c) copyright 2000-2023 by TPA Menutree Website: QR-Code Website: + Products / docu / downloads + Hardware + Time + S5/S7-TimeServer Please make sure to update your drivers before using our products. BOSCH-CL <=> S7-TCPIP Bring your BOSCH-CL control CL200 - CL400 into the network Link the PLC with your production-data-acquisition or other Industry 4.0-applications...
- Page 7 PLC coupling (data exchange between PLC’s) Your pumping stations report the water levels of the central control via telephone network. The central office itself can of course transmit commands/messages to the substations as well. Therefore no dedicated line is required, it's sufficient when the stations connect via network (DSL-router).
- Page 8 PLC coupling S5 and S7 Data-processing/-recording of PLC-data? Data-logging of recorded process-values in a DB writing or read out in the connected PLC via network, thanks to RFC1006-communication i n the devices is nothing in the way. Even accesses to flags (individual bits of the words) are possible at any time. Configure the data via the integrated web-server that gets target-PLC or returns the necessary-data.
