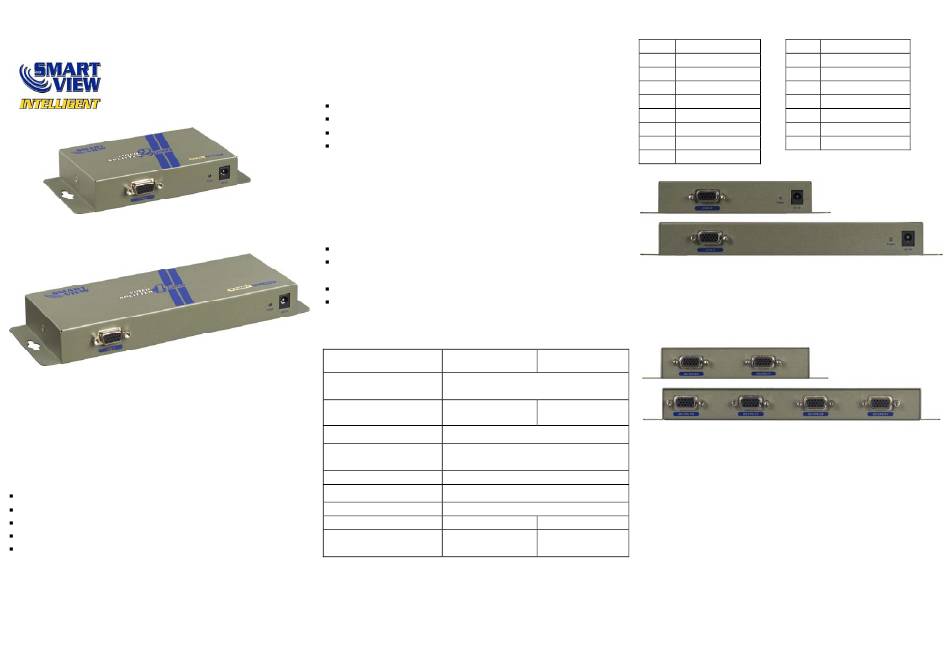

C&C TECHNIC VS-12HF User Manual

VIDEO
SPLITTER
(VS-12HF)
1 In 2 Out
(VS-14HF)
1 In 4 Out
USER MANUAL
VS-12HF/VS-14HF
Package Contents-

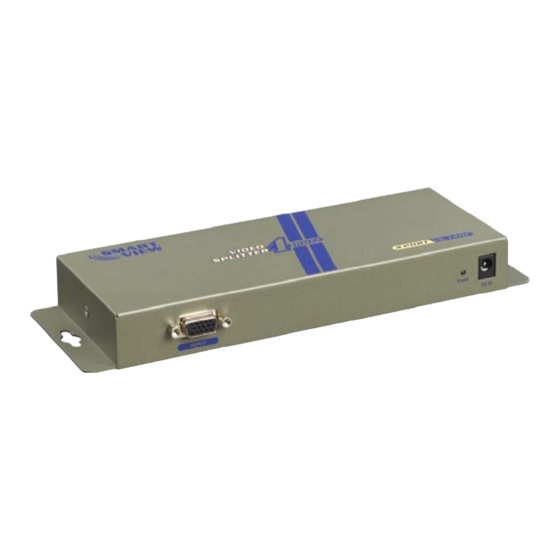

1 Smart View VS-12HF or VS-14HF Video Splitter
1 user manual
1 power adapter DC 9V
2 screws
4 foot pads
Any thing missed, please contact with your vendor.

Introduction

Through the video splitter VS-12HF or VS-14HF, you can
use one PC to display identical image on 2,4 monitors or
even more.
Video splitter is ideal for:
Test bench facilities
Data Center
Help desks
Video broadcasting:
Presentation
Stock quotes
Timetables
Educational facilities

Features

Extends the video signal up to 65 meter (213 feet).
Supports the DDC, DDC2, DDC2B. (For video out port
1).
Can be cascaded.
The output is compatible with standard VGA card.

Specifications

Function
Video Input Connector
(HD-15 Male)
Video Output Connector
(HD-15 Female)
V1.0
Max. Resolution
Cable Distance
(Device to Monitor)
Signal Type
Power Adapter (Min.)
Housing
Weight
Dimensions (LxWxH)
mm

Technical Specifications

Input/Output Signal

VS-12HF VS-14HF
1
2 4
1920 x 1440 60 Hz
65 m (213 feet) Max.
VGA, SVGA, XGA, Multisync
DC 9V
Metal
320g 500g
150*84*25 230*84*25
-1-
Pin # Signal Pin #
1 Red video 9 NC
2 Green video 10 Ground
3 Blue video 11 ID0
4 ID2 12 ID1
5 Ground 13 Horizontal Sync
6 Analog Ground 14 Vertical Sync
7 Analog Ground 15 ID3
8 Analog Ground
FRONT VIEW
1. "Video In" Port
2. Power LED
3. Input Power Jack
REAR VIEW
1. "Video Out" Port
-2-
